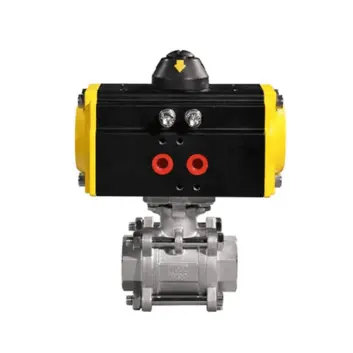

Pneumatic Ball Control Valve, 1000 WOG, PN10-PN64, DN8-DN100
Key Specifications / Features
Hits: 6
Showcasing our Pneumatic Ball Control Valve, designed for precise and reliable flow control. Available in sizes from 1/4 to 4 inches (DN8-DN100), this valve suits a range of applications with pressure ratings from PN10-PN64 and Class 150-400. Featuring both spring return and double-acting options, it offers flexibility and dependable performance. Constructed for durability, it comes with threaded and Tri Clamp ends for easy installation and maintenance. Ideal for high-pressure systems, our valve ensures efficient operation and long-lasting service. Choose our valve for its versatility, robust construction, and superior control in demanding environments.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Pneumatic Ball Control Valve
Key Features: Spring Return, Double Acting, Single Acting, 2-Way
Size Range: 1/4 Inch - 4 Inch, DN8-DN100
Pressure Rating: PN10-PN64, Class 150 LB - 400 LB
Body Material: Stainless Steel 304, 316
Sealing Material: PTFE
End Connection: Thread(Male & Female), Tri Clamp, and Welding.
Applicable Standard: GB
Operating Pressure: 1000 WOG
Working Temperature: -10°C to 180°C
Medium: Water, Oil, Air, Gas etc.
Product Name: Pneumatic Ball Control Valve
Key Features: Spring Return, Double Acting, Single Acting, 2-Way
Size Range: 1/4 Inch - 4 Inch, DN8-DN100
Pressure Rating: PN10-PN64, Class 150 LB - 400 LB
Body Material: Stainless Steel 304, 316
Sealing Material: PTFE
End Connection: Thread(Male & Female), Tri Clamp, and Welding.
Applicable Standard: GB
Operating Pressure: 1000 WOG
Working Temperature: -10°C to 180°C
Medium: Water, Oil, Air, Gas etc.

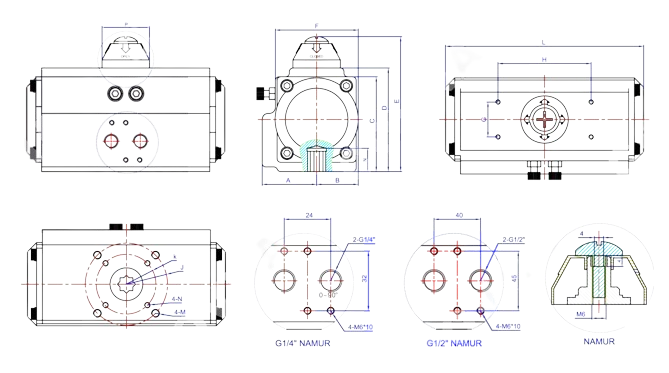

Drawing of Pneumatic Ball Control Valve
