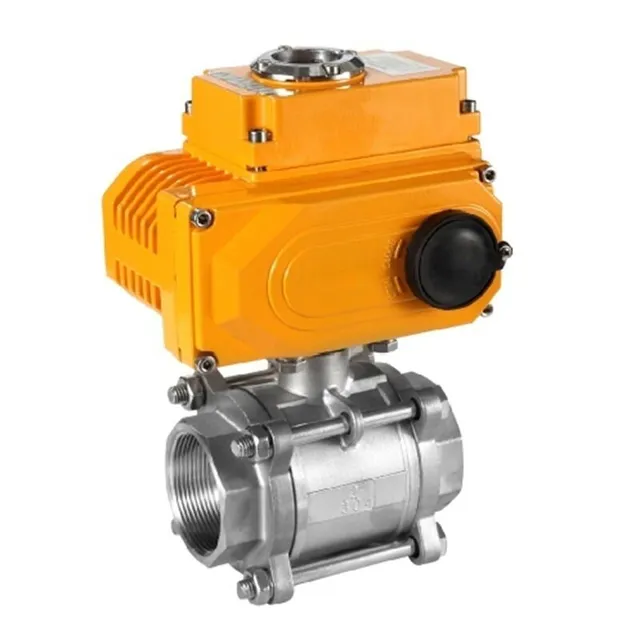

3PC Motorized Electric Ball Valve, 1/4-4 Inch, 150, 300 LB

Key Specifications / Features

Our 3PC Motorized Electric Ball Valve, designed for explosion-proof and fire protection applications, features on/off control. Available in sizes 1/4 to 4 inches (DN8-DN100) with PN16-PN64 pressure ratings, it is made from high-precision cast stainless steel and BSP thread ends. The high platform design complies with ISO5211 standards, ensuring excellent interchangeability and easy direct mounting of pneumatic or electric actuators for automatic control. Control types include switch and regulation. Ideal for high-performance industrial systems, this valve guarantees reliability and precision.

Request a quote

Detail Information

SPECIFICATIONS
Product Name: 3PC Motorized Electric Ball Control Valves
Key Features: Explosion Proof, Fire Protection, On/Off
Size Range: 1/4 Inch - 4 Inch, DN8-DN100
Pressure Rating: PN16-PN64, Class 150 LB - 300 LB
Material: Stainless Steel
Valve Ball: Stainless Steel
Operating Pressure: 1000 WOG
Actuator Type: On/Off Control
Protection Class: IP65, Explosion Proof Construction Are Available: EX ll BT4
Voltage Optional: AC110-240V 380V 50/60HZ: DC12V, DC24V, Special Voltage Can be Customized
Regulation Type: Input & Output signal: DC 4-20mA, DC 0-10V, DC 1-5V
End Connection: BSP Thread
Temperature Of Media: -10°C to 180°C (-22°F to 356°F)
Media: Water, Air, Gas
