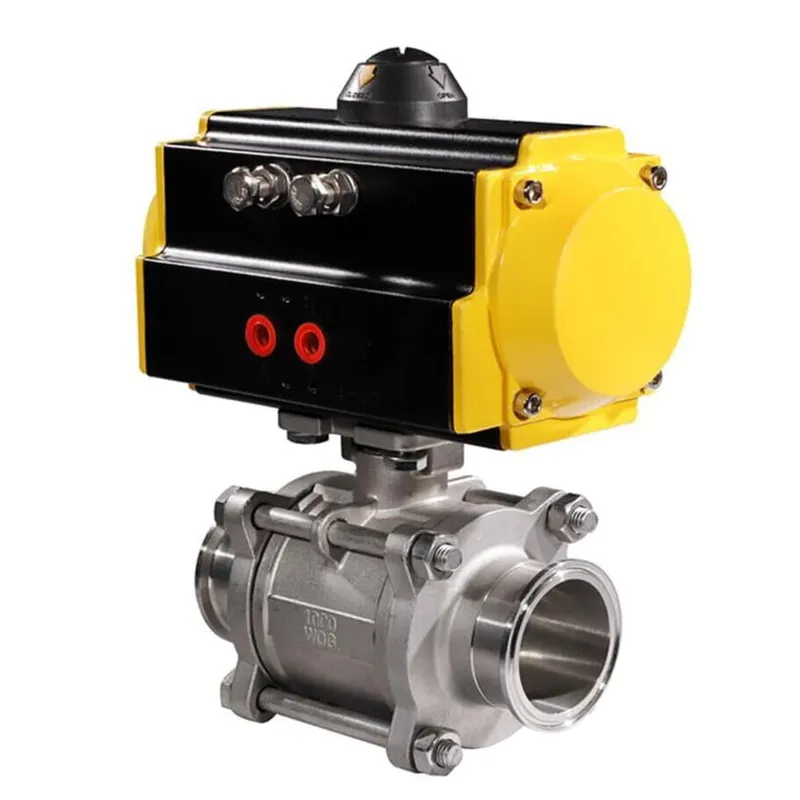

3 Piece Pneumatic Ball Control Valve, SS, 1/2-4 IN, 150 LB
Key Specifications / Features
Hits: 0
Our 3 Piece Pneumatic Ball Control Valve is designed for efficiency and reliability. Featuring a 2-way tri-clamp configuration, this lightweight valve is available in sizes 1/2-4 inches, with pressure ratings from PN16 to PN64 and Class 150 LB to 400 LB. Made of stainless steel, it offers fluid resistance equivalent to a pipe of the same length. The simple structure ensures a small volume and light weight. It provides a tight, reliable seal with plastic sealing surfaces, ideal for vacuum systems. Easy to operate, it requires only a 90° turn to open or close, facilitating remote control. Suitable for a wide range of applications from small to large diameters, and from high vacuum to high pressure environments.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: 3 Piece Pneumatic Ball Control Valve
Key Features: 2 Way, Tri-clamp, Light Weight, 3PC, Pneumatic Actuator
Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure Rating: PN16-PN64, Class 150 LB - 400 LB
Body Material: Stainless Steel
Stem Material: Stainless Steel
Sealing Material: PTFE, PPL
Applicable Media: Water, Oil, Gas, Liquid, Steam, Powder, Anti-corrosive Base.
End Connection: Clamp
Structure: Floating Ball Core
Product Name: 3 Piece Pneumatic Ball Control Valve
Key Features: 2 Way, Tri-clamp, Light Weight, 3PC, Pneumatic Actuator
Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure Rating: PN16-PN64, Class 150 LB - 400 LB
Body Material: Stainless Steel
Stem Material: Stainless Steel
Sealing Material: PTFE, PPL
Applicable Media: Water, Oil, Gas, Liquid, Steam, Powder, Anti-corrosive Base.
End Connection: Clamp
Structure: Floating Ball Core

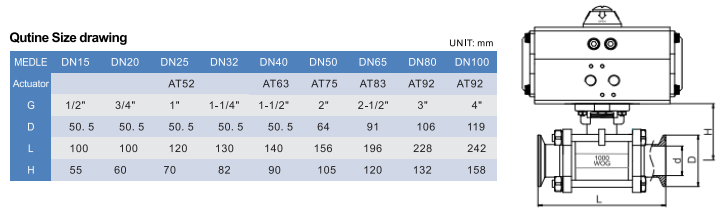

Dimension of Pneumatic Ball Control Valve
