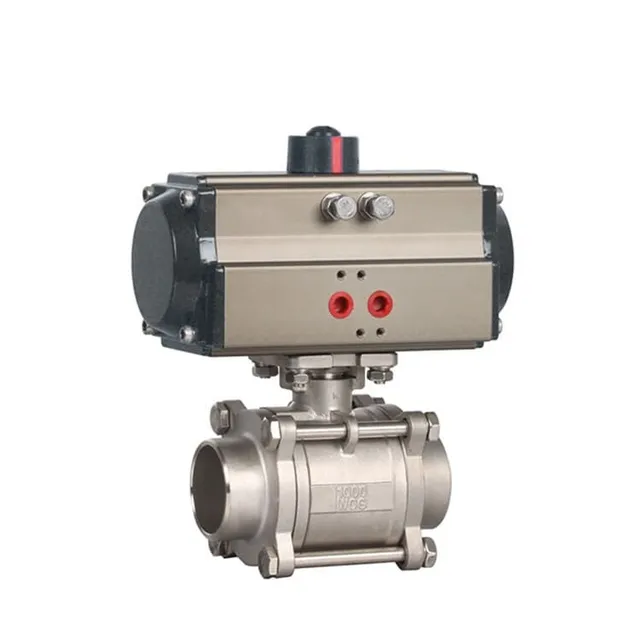

Pneumatic Ball Control Valve, DN08-DN100, 150 LB, PN10
Key Specifications / Features
hits: 1
Introducing our Pneumatic Ball Control Valve, designed for precise on/off control with double-acting and spring return options. Available in sizes from 1/4 to 4 inches (DN08-DN100), it handles pressure ratings up to PN10 and Class 150 LB. Constructed from durable SS 304 stainless steel, this valve ensures long-lasting performance and excellent corrosion resistance. The clamp end design facilitates easy installation and maintenance. Ideal for various industrial applications, our valve offers reliable and efficient operation. Choose our valve for its robust construction, versatility, and seamless integration into your control systems.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Pneumatic Ball Control Valve
Key Features: Double Acting, Spring Return, On/Off
Size Range: 1/4 Inch - 4 Inch, DN8-DN100
Pressure Rating: PN10-PN64, Class 150 LB - 400 LB
Body Material: SS 304, SS 316, SS 316L
Structure: Floating Ball Core
Connection: BW, Clamp End
Stem Material: SS 304
Mounting: ISO 5211, NAMUR, DIN 3337
Applicable Media: Water, Oil, Gas, Liquid, Steam, Powder, Anti-corrosive Base.
Product Name: Pneumatic Ball Control Valve
Key Features: Double Acting, Spring Return, On/Off
Size Range: 1/4 Inch - 4 Inch, DN8-DN100
Pressure Rating: PN10-PN64, Class 150 LB - 400 LB
Body Material: SS 304, SS 316, SS 316L
Structure: Floating Ball Core
Connection: BW, Clamp End
Stem Material: SS 304
Mounting: ISO 5211, NAMUR, DIN 3337
Applicable Media: Water, Oil, Gas, Liquid, Steam, Powder, Anti-corrosive Base.

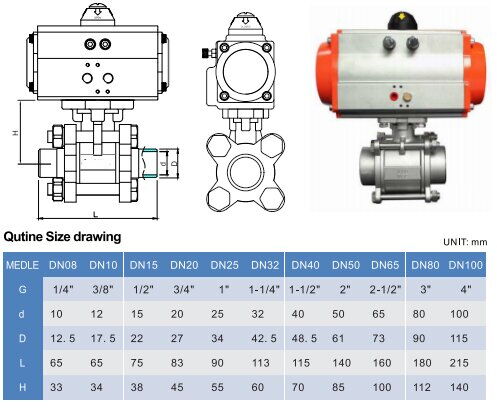

Drawing of Pneumatic Ball Control Valve
