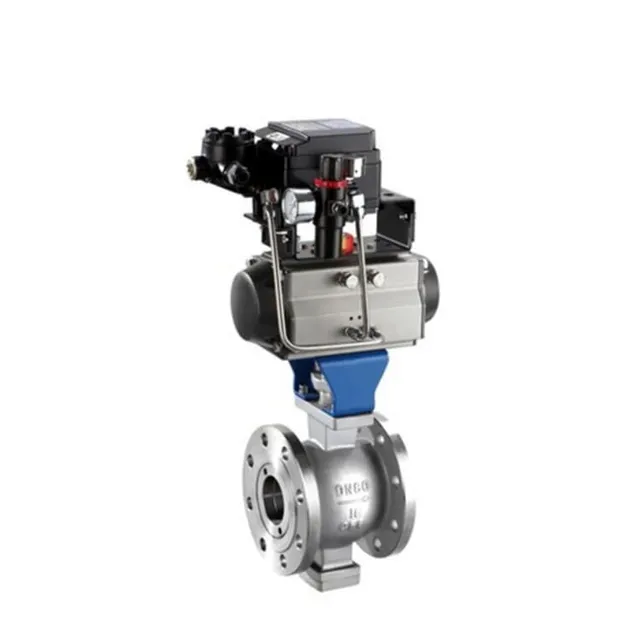

Stainless Steel Pneumatic Ball Control Valve, DN25-DN400
Key Specifications / Features
Hits: 1
Explore our Stainless Steel Pneumatic Ball Control Valve, meticulously crafted for superior performance. With double-acting functionality and V-port design, it ensures precise control in throttling or on-off applications. Equipped with Tri-Clamp connections and available in sizes from DN25 to DN400, it offers versatility and ease of installation. Constructed from high-quality stainless steel, it withstands corrosion and guarantees durability. Operating within pressure ratings from PN10 to PN64 and Class 150 to 400 LB, it suits diverse industrial settings. Ideal for industries like pulp & paper, chemical, power, oil & gas, and mining, our valve ensures reliable operation and seamless integration into your systems.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Stainless Steel Pneumatic Ball Control Valve
Key Features: Single Acting, Double Acting, V-port, Tri-Clamp, One-piece Body.
Size Range: DN25-DN400, 1 Inch - 16 Inch
Pressure Rating: PN10-PN64, Class 150 LB - 400 LB
Material: Stainless Steel
Sealing Material: PTFE
Acting Mode: Double Acting
End Connection: Flanged
Temperature of Media: -29°C to 178°C
Media: Water, Oil, Gas, Air
Product Name: Stainless Steel Pneumatic Ball Control Valve
Key Features: Single Acting, Double Acting, V-port, Tri-Clamp, One-piece Body.
Size Range: DN25-DN400, 1 Inch - 16 Inch
Pressure Rating: PN10-PN64, Class 150 LB - 400 LB
Material: Stainless Steel
Sealing Material: PTFE
Acting Mode: Double Acting
End Connection: Flanged
Temperature of Media: -29°C to 178°C
Media: Water, Oil, Gas, Air

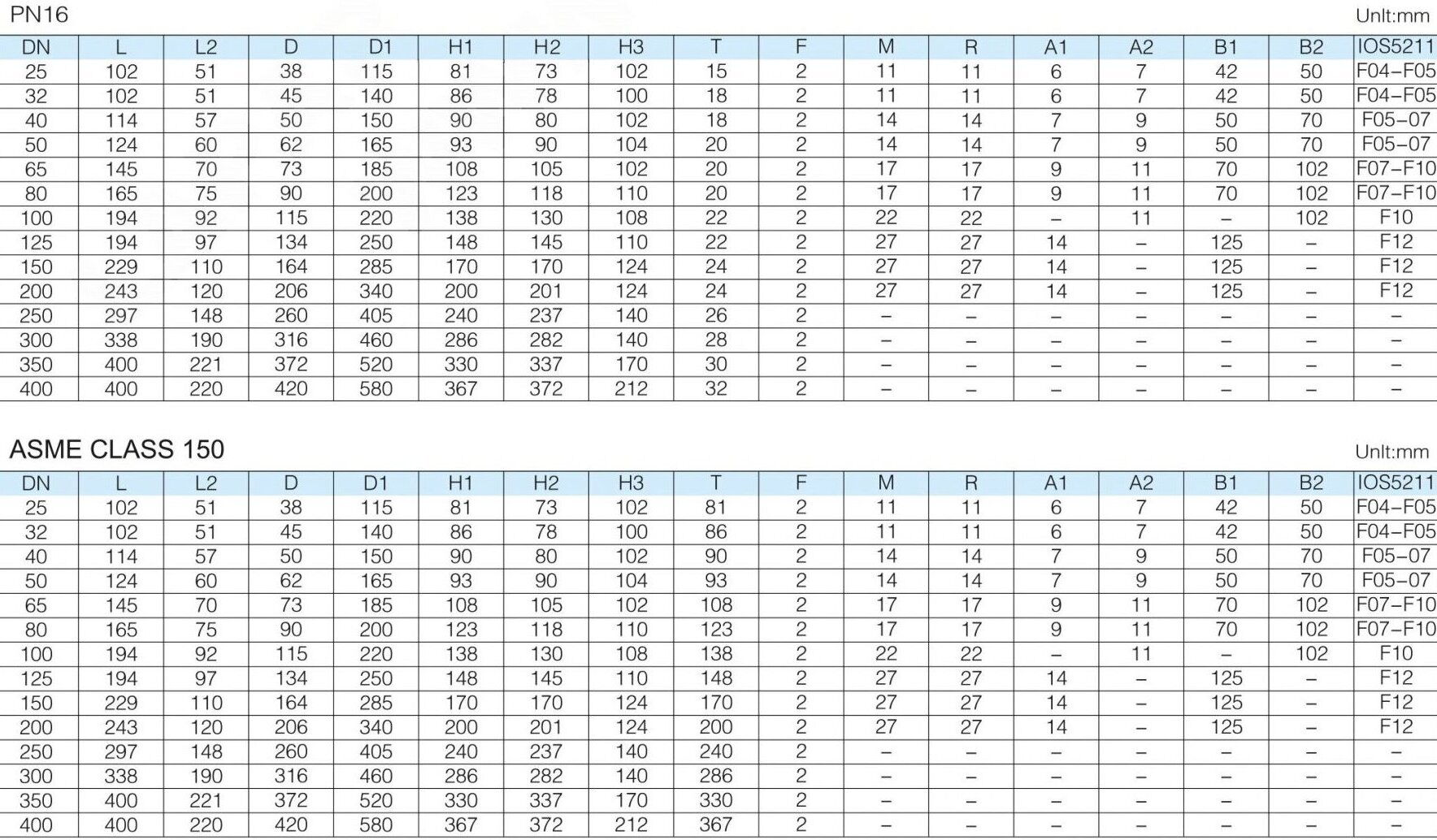

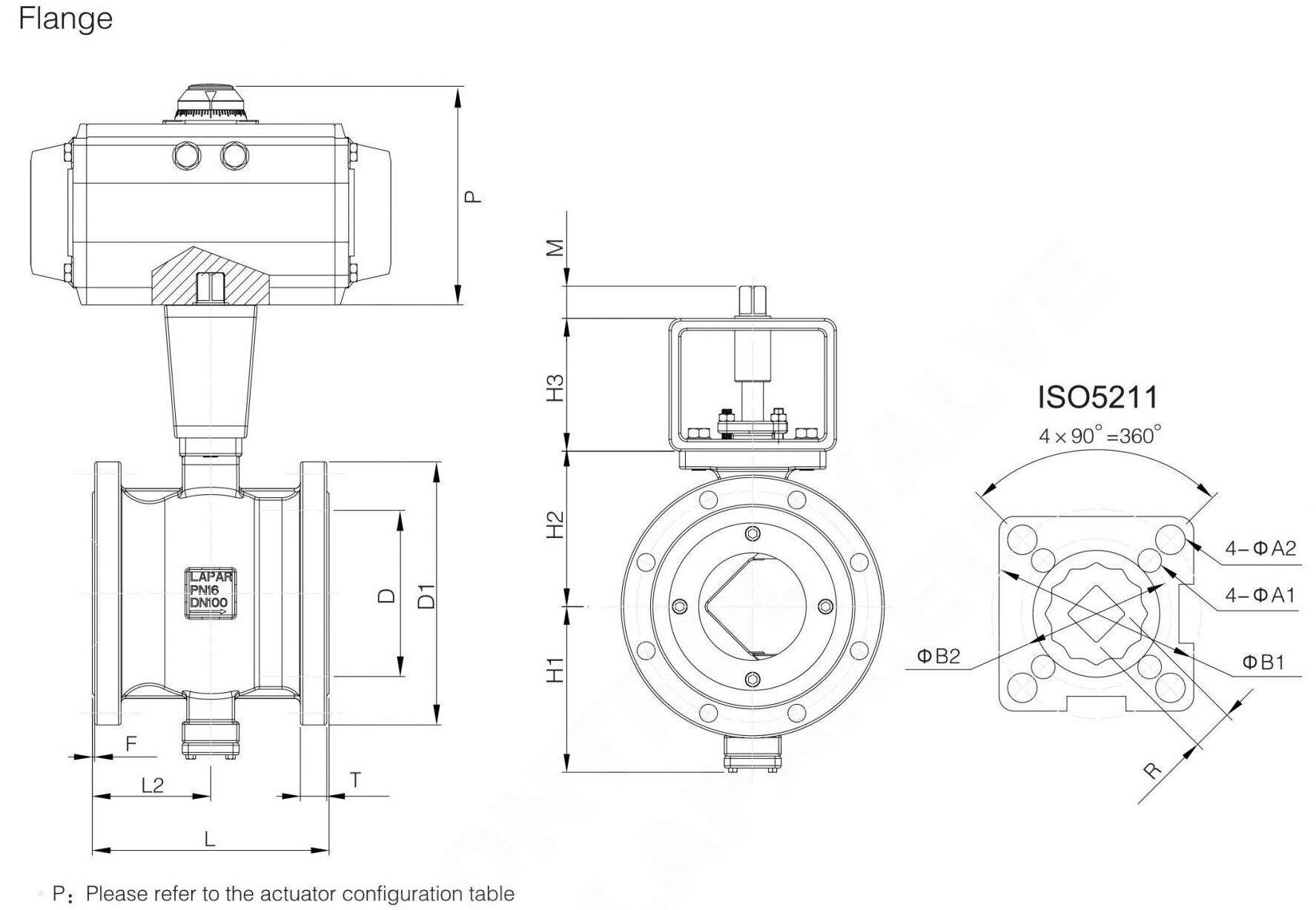

Dimension of Pneumatic Ball Control Valve
