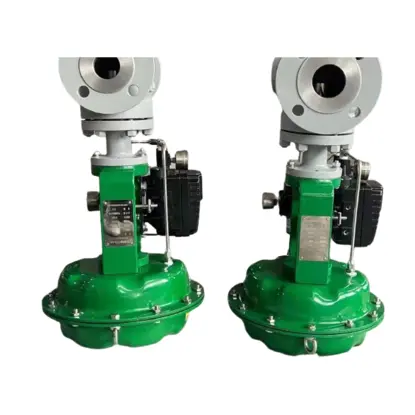

Pneumatic Diaphragm Globe Control Valve, WCB, LCB, DN50 PN25
Key Specifications / Features
Hits: 1
This versatile control valve comes in both straight-through and angle types, featuring high-performance sealing rings on the valve plug or cage. With a compact, flow-enhancing vane-equipped structure, it ensures minimal pressure drop, high flow capacity, and precise flow characteristics. Compliant with the IEC 60534-2-1-2011 standard, it guarantees excellent dynamic stability, low noise, and minimal cavitation corrosion, meeting ANSI FCI 70-2-2013 leakage standards. Compatible with multi-spring diaphragm or cylinder actuators, it offers compact design and high output force. Suitable for various high-temperature and high-pressure fluids, it can be customized as per specific requirements. Material options include ASTM A216 WCB, WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3M, CF3. Sizes range from 3/4 Inch to 16 Inch, DN 20 to DN 400.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Pneumatic Low Noise Globe Control Valve
Key Features: E/P Positioner, Pressure-balanced, Single-Seat, Low Noise, Straight-through, Cast Globe Valve
Materials: ASTM A216 WCB, WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3M, CF3
Size Range: 3/4 Inch - 16 Inch, DN20-DN400
Pressure Rating: Class 125-600 LB, PN16-PN100
Diaphragm material: Cloth embedded nylon and ethylene propylene rubber
Leakage: Metal Seat, Soft Seat
Temperature Range: -196 to +450°C
Bonnet type:
Plain bonnet (-17 to 230°C)
Extension bonnet Type1(-45 to -17°C and 230 to 566°C)
Extension bonnet Type 2 Cryogenic
Integral cast type (-100 to -45°C)
Welded type (-196 to -100°C)
Valve action:
FO: Air to close(Direct action actuator is combined.)
FC: Air to open(Reverse action actuator is combined.)
End connection:
Flanged End: FF(Flat Face), RF(Raised Face), RJ(Ring Joint), LG(Large Male-Female)
Welded End: SW(Socket Weld), BW(Butt Weld)
Threaded End: Rc
Flow characteristics: Equal percentage, Linear
Linearity:
Without positioner: Within ±5% F.S.
With positioner: Within ±1% F.S.
Product Name: Pneumatic Low Noise Globe Control Valve
Key Features: E/P Positioner, Pressure-balanced, Single-Seat, Low Noise, Straight-through, Cast Globe Valve
Materials: ASTM A216 WCB, WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3M, CF3
Size Range: 3/4 Inch - 16 Inch, DN20-DN400
Pressure Rating: Class 125-600 LB, PN16-PN100
Diaphragm material: Cloth embedded nylon and ethylene propylene rubber
Leakage: Metal Seat, Soft Seat
Temperature Range: -196 to +450°C
Bonnet type:
Plain bonnet (-17 to 230°C)
Extension bonnet Type1(-45 to -17°C and 230 to 566°C)
Extension bonnet Type 2 Cryogenic
Integral cast type (-100 to -45°C)
Welded type (-196 to -100°C)
Valve action:
FO: Air to close(Direct action actuator is combined.)
FC: Air to open(Reverse action actuator is combined.)
End connection:
Flanged End: FF(Flat Face), RF(Raised Face), RJ(Ring Joint), LG(Large Male-Female)
Welded End: SW(Socket Weld), BW(Butt Weld)
Threaded End: Rc
Flow characteristics: Equal percentage, Linear
Linearity:
Without positioner: Within ±5% F.S.
With positioner: Within ±1% F.S.
Flow Characteristics
DN20-DN50 External Dimensions for Standard, Bellows and Extension
DN20-DN50 External Dimensions for Standard, Bellows and Extension
