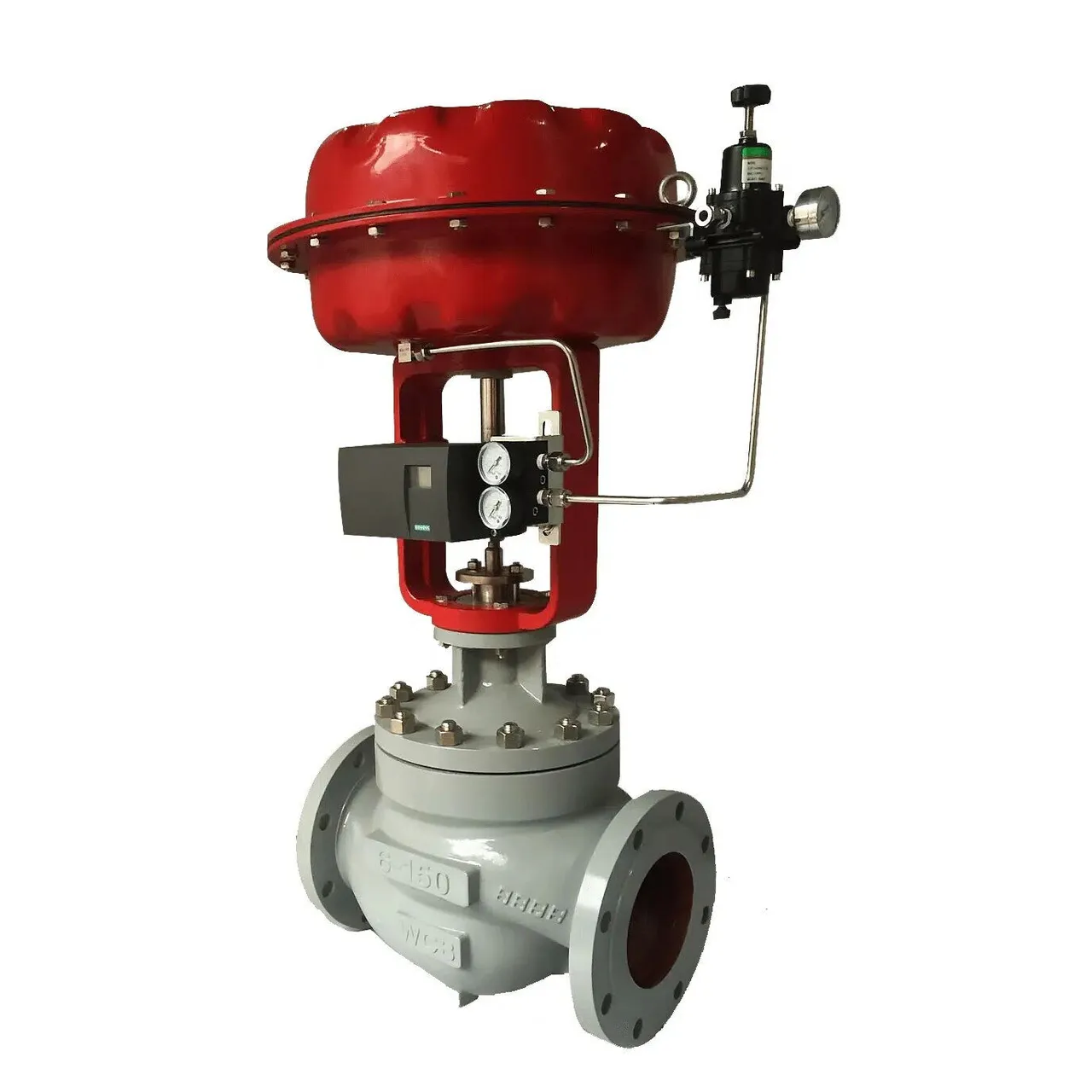

Pneumatic Pressure Balanced Globe Control Valve, 6 IN, 150 LB
Key Specifications / Features
Hits: 1
The Pneumatic Balanced Cage Globe Control Valves are engineered for heavy-duty applications. Featuring a compact body with an S-shaped flow passage, they ensure minimal pressure loss and regulate turbulent flow around the cage for enhanced stability. Their pressure-balanced plug design enables precise flow control even under high differential pressure, requiring minimal actuating force. Equipped with a compact diaphragm actuator loaded with multiple springs, these valves offer reliable control in high/low-temperature, high-pressure, or high-differential-pressure systems, prioritizing dynamic stability, low noise, and resistance to cavitation/flashing. They boast large flow capacity, rangeability, and high accuracy flow characteristics for versatile industrial use.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Pneumatic Pressure-Balanced Cage Globe Control Valves
Key Features: Pneumatic Pressure-Balanced Cage Type, Straight-through, Cast Globe Valve
Material: ASTM A216 WCB, WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3M, CF3
Size Range: 3/4 - 16 Inch, DN20-DN400
Pressure rating: ANSI Class 125 LB, 150 LB, 300 LB, 600 LB, JIS 10K, 16K, 20K, 30K, 40K, PN16, PN40, PN64, PN100
End connection:
Flanged End: FF(Flat Face), RF(Raised Face), RJ(Ring Joint), LG(Large Male)
Welded End: SW(Socket Weld), BW(Butt Weld)
Threaded End: Rc(British Standard Pipe Taper)
Bonnet:
Plain bonnet (-17 to 230°C)
Extension bonnet (-45 to -17°C and 230 to 566°C)
Cryogenic Integral cast type (-100 to -45°C)
Welded type (-196 to -100°C)
Temperature Range: -196 to +450°C
Product Name: Pneumatic Pressure-Balanced Cage Globe Control Valves
Key Features: Pneumatic Pressure-Balanced Cage Type, Straight-through, Cast Globe Valve
Material: ASTM A216 WCB, WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3M, CF3
Size Range: 3/4 - 16 Inch, DN20-DN400
Pressure rating: ANSI Class 125 LB, 150 LB, 300 LB, 600 LB, JIS 10K, 16K, 20K, 30K, 40K, PN16, PN40, PN64, PN100
End connection:
Flanged End: FF(Flat Face), RF(Raised Face), RJ(Ring Joint), LG(Large Male)
Welded End: SW(Socket Weld), BW(Butt Weld)
Threaded End: Rc(British Standard Pipe Taper)
Bonnet:
Plain bonnet (-17 to 230°C)
Extension bonnet (-45 to -17°C and 230 to 566°C)
Cryogenic Integral cast type (-100 to -45°C)
Welded type (-196 to -100°C)
Temperature Range: -196 to +450°C
