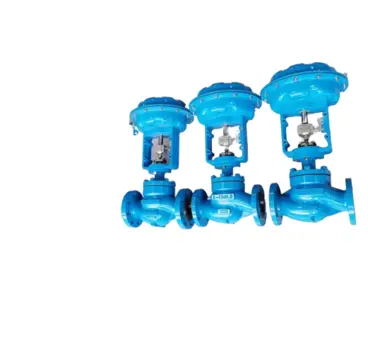

Pressure Balanced Globe Control Valve, 2 IN, 150 LB, WCB
Key Specifications / Features
Hits: 6
Our Pressure Balanced Cage Type Control Valves, made from ASTM A216 WCB, are designed for heavy-duty services. Available in 2-inch size with 150 LB rating and flanged end (Flat Face, FF), these valves feature a compact body with an S-shaped flow passage for minimal pressure loss. The stabilizer ensures turbulent flow regulation around the cage, providing large flow capacity, rangeability, and precise flow characteristics. The pressure-balanced valve plug allows high differential pressure control with minimal actuating force. The integrated actuator, equipped with a compact yet powerful diaphragm and multiple springs, ensures efficient operation. These valves are ideal for controlling high or low temperature, high pressure, or high differential pressure process lines, offering dynamic stability, low noise, and resistance to cavitation and flashing.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Pressure Balanced Cage Single-seat Globe Control Valve
Body type: Straight-through, cast globe valve
Size range: 3/4 Inch - 16 Inch, DN20-DN400
Body Materials: ASTM A216 WCB, WC6, ASTM A351 CF8, CF8M, CF3M, CF3, ASTM A352 LCB
Pressure Rating:
ANSI Class 125 LB, 150 LB, 300 LB, 600 LB
JIS 10K, 16K, 20K, 30K, 40K
PN16, PN40, PN64, PN100
End connection:
Flanged End: Flat Face (FF), Raised Face (RF), Ring Joint (RJ), Large Groove (LG)
Welded End: Socket Weld (SW), Butt Weld (BW)
Threaded End: Threaded, RC, NPT
Temperature Range: -196 to +450°C
Bonnet type:
Plain bonnet (-17 to 230°C)
Extension bonnet (-45 to -17°C and 230 to 566°C)
Integral cast type (-100 to -45°C)
Welded type (-196 to -100°C)
Diaphragm material: Cloth embedded nylon and ethylene propylene rubber
Spring range:
20 to 100 kPa(0.2 to 1.0 kgf/cm2)
40 to 200 kPa(0.4 to 2.0 kgf/cm2)
80 to 240 kPa(0.8 to 2.4 kgf/cm2)
Valve action:
FO: Air to close(Direct action actuator is combined.)
FC: Air to open(Reverse action actuator is combined.)
Flow characteristics: Equal percentage, Linear
Leakage: Metal Seat, Soft Seat
Linearity:
Without positioner: Within ±5% F.S.
With positioner: Within ±1% F.S.
Product Name: Pressure Balanced Cage Single-seat Globe Control Valve
Body type: Straight-through, cast globe valve
Size range: 3/4 Inch - 16 Inch, DN20-DN400
Body Materials: ASTM A216 WCB, WC6, ASTM A351 CF8, CF8M, CF3M, CF3, ASTM A352 LCB
Pressure Rating:
ANSI Class 125 LB, 150 LB, 300 LB, 600 LB
JIS 10K, 16K, 20K, 30K, 40K
PN16, PN40, PN64, PN100
End connection:
Flanged End: Flat Face (FF), Raised Face (RF), Ring Joint (RJ), Large Groove (LG)
Welded End: Socket Weld (SW), Butt Weld (BW)
Threaded End: Threaded, RC, NPT
Temperature Range: -196 to +450°C
Bonnet type:
Plain bonnet (-17 to 230°C)
Extension bonnet (-45 to -17°C and 230 to 566°C)
Integral cast type (-100 to -45°C)
Welded type (-196 to -100°C)
Diaphragm material: Cloth embedded nylon and ethylene propylene rubber
Spring range:
20 to 100 kPa(0.2 to 1.0 kgf/cm2)
40 to 200 kPa(0.4 to 2.0 kgf/cm2)
80 to 240 kPa(0.8 to 2.4 kgf/cm2)
Valve action:
FO: Air to close(Direct action actuator is combined.)
FC: Air to open(Reverse action actuator is combined.)
Flow characteristics: Equal percentage, Linear
Leakage: Metal Seat, Soft Seat
Linearity:
Without positioner: Within ±5% F.S.
With positioner: Within ±1% F.S.
Flow Characteristics
DN20-DN50 External Dimensions for Standard, Bellows and Extension
DN20-DN50 External Dimensions for Standard, Bellows and Extension
