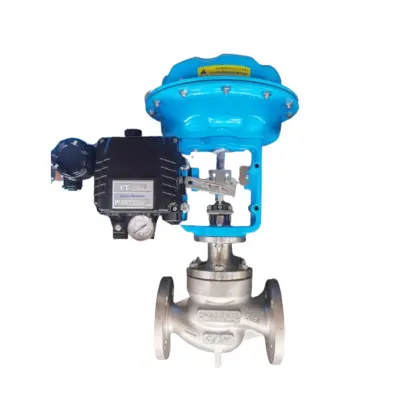

Pneumatic Single-Seated Control Valve, DN40, PN16, CF3M
Key Specifications / Features
Hits: 3
Introducing Pneumatic Small-Port Cage-Guided Single-Seated Control Valves, designed for high differential pressure service over 2940 kPa (30 kgf/cm²) and heavy-duty conditions like flashing or cavitation. The robust guides and protective cage prevent valve body erosion. The compact valve body with an S-shaped flow passage ensures low pressure loss, high flow capacity, and rangeability. Valve plugs come in a wide range of Cv values, and the flow shutoff performance features a simple yet powerful diaphragm actuator with multiple springs. Ideal for reliable control of small flows in high/low-temperature, high differential pressure lines. Sizes: 3/4 to 3 inches, Materials: ASTM A351 CF3M, Pressure Rating: ANSI Class 125, 150, 300, 600 LB.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Pneumatic Single-Seated Control Valve
Product Name: Pneumatic Cage-Guided Globe Control Valve
Key Features: Pneumatic Actuator, Small-Port, Cage-Guided, Single-seated
Sizes: 3/4 Inch - 3 Inch, DN20-DN80
Pressure Rating:
ANSI Class 125 LB, 150 LB, 300 LB, 600 LB
JIS 10K, 16K, 20K, 30K, 40K
PN16, PN40, PN64, PN100
End connection:
Flanged End: FF, RF, RJ, LG
Welded End: SW, BW
Threaded End: Rc
Materials: ASTM A351 CF3M, CF8, CF8M, CF3, ASTM A216 WCB, WC6, ASTM A352 LCB
Bonnet:
Plain bonnet (-17 to 230°C)
Extension bonnet (-45 to -17°C and 230 to 566°C)
Integral cast type (-100 to -45°C)
Welded type (-196 to -100°C)
Actuator Type: Single-acting diaphragm actuator
Diaphragm material: Cloth embedded nylon and ethylene propylene rubber
Ambient temperature: -30 to 70°C
Temperature Range: -196 to +450°C
Flow characteristics: Equal percentage, Linear
Leakage: Metal Seat, Soft Seat
Linearity:
Without positioner: Within ±5% F.S.
With positioner: Within ±1% F.S.
Valve action:
FO: Air to close(Direct action actuator is combined.)
FC: Air to open(Reverse action actuator is combined.)
Product Name: Pneumatic Single-Seated Control Valve
Product Name: Pneumatic Cage-Guided Globe Control Valve
Key Features: Pneumatic Actuator, Small-Port, Cage-Guided, Single-seated
Sizes: 3/4 Inch - 3 Inch, DN20-DN80
Pressure Rating:
ANSI Class 125 LB, 150 LB, 300 LB, 600 LB
JIS 10K, 16K, 20K, 30K, 40K
PN16, PN40, PN64, PN100
End connection:
Flanged End: FF, RF, RJ, LG
Welded End: SW, BW
Threaded End: Rc
Materials: ASTM A351 CF3M, CF8, CF8M, CF3, ASTM A216 WCB, WC6, ASTM A352 LCB
Bonnet:
Plain bonnet (-17 to 230°C)
Extension bonnet (-45 to -17°C and 230 to 566°C)
Integral cast type (-100 to -45°C)
Welded type (-196 to -100°C)
Actuator Type: Single-acting diaphragm actuator
Diaphragm material: Cloth embedded nylon and ethylene propylene rubber
Ambient temperature: -30 to 70°C
Temperature Range: -196 to +450°C
Flow characteristics: Equal percentage, Linear
Leakage: Metal Seat, Soft Seat
Linearity:
Without positioner: Within ±5% F.S.
With positioner: Within ±1% F.S.
Valve action:
FO: Air to close(Direct action actuator is combined.)
FC: Air to open(Reverse action actuator is combined.)
