Noise Reduction Control Valve, Pneumatic, DN80, PN25, WCB
Key Specifications / Features
hits: 0

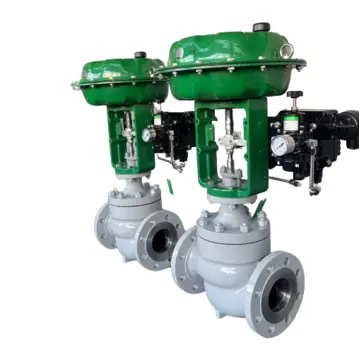

Our Pressure Balanced Cage Type Control Valves are widely applicable for reliable control in high or low temperature, high pressure, or high differential pressure process lines, providing dynamic stability, low noise, and cavitation/flashing resistance. Made from ASTM A216 WCB, these valves are available in sizes from 3/4 inch to 16 inches (DN20-DN400) and rated at 500 LB with flanged ends. They operate within a temperature range of -196 to +450°C. The compact valve body features an S-shaped flow passage with low pressure loss and a stabilizer to regulate turbulent flow around the cage, ensuring large flow capacity, rangeability, and high accuracy. The pressure-balanced valve plug allows high differential pressure control with minimal actuating force, while the diaphragm actuator, loaded with multiple springs, ensures powerful and efficient operation.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Pneumatic Pressure Balanced Cage Noise Reduction Control Valve
Sizes: 3/4 Inch - 16 Inch, DN20-DN400
Pressure Rating:
ANSI Class 125 LB, 150 LB, 300 LB, 600 LB
JIS 10K, 16K, 20K, 30K, 40K
PN16, PN40, PN64, PN100
Materials: ASTM A216 WCB, WC6, ASTM A351 CF8, CF8M, CF3M, CF3, ASTM A352 LCB
Valve action:
FO: Air to close(Direct action actuator is combined.)
FC: Air to open(Reverse action actuator is combined.)
Flow characteristics: Equal percentage, Linear
Linearity:
Without positioner: Within ±5% F.S.
With positioner: Within ±1% F.S.
Inherent rangeability: 50:1 (Optional 75:1 for full port size)
Leakage: Metal Seat, Soft Seat
End connection:
Flanged End: Flat Face (FF), Raised Face (RF), Ring Joint (RJ), Large Groove (LG)
Welded End: Socket Weld (SW), Butt Weld (BW)
Threaded End: Threaded, RC, NPT
Temperature Range: -196 to +450°C
Bonnet:
Plain bonnet (-17 to 230°C)
Extension bonnet Type1(-45 to -17°C and 230 to 566°C)
Extension bonnet Type 2 Cryogenic
Integral cast type (-100 to -45°C)
Welded type (-196 to -100°C)
Ambient temperature: -20 to 70°C
Product Name: Pneumatic Pressure Balanced Cage Noise Reduction Control Valve
Sizes: 3/4 Inch - 16 Inch, DN20-DN400
Pressure Rating:
ANSI Class 125 LB, 150 LB, 300 LB, 600 LB
JIS 10K, 16K, 20K, 30K, 40K
PN16, PN40, PN64, PN100
Materials: ASTM A216 WCB, WC6, ASTM A351 CF8, CF8M, CF3M, CF3, ASTM A352 LCB
Valve action:
FO: Air to close(Direct action actuator is combined.)
FC: Air to open(Reverse action actuator is combined.)
Flow characteristics: Equal percentage, Linear
Linearity:
Without positioner: Within ±5% F.S.
With positioner: Within ±1% F.S.
Inherent rangeability: 50:1 (Optional 75:1 for full port size)
Leakage: Metal Seat, Soft Seat
End connection:
Flanged End: Flat Face (FF), Raised Face (RF), Ring Joint (RJ), Large Groove (LG)
Welded End: Socket Weld (SW), Butt Weld (BW)
Threaded End: Threaded, RC, NPT
Temperature Range: -196 to +450°C
Bonnet:
Plain bonnet (-17 to 230°C)
Extension bonnet Type1(-45 to -17°C and 230 to 566°C)
Extension bonnet Type 2 Cryogenic
Integral cast type (-100 to -45°C)
Welded type (-196 to -100°C)
Ambient temperature: -20 to 70°C
Flow characteristics
DN20-DN50 External Dimensions for Standard, Bellows and Extension
DN20-DN50 External Dimensions for Standard, Bellows and Extension
