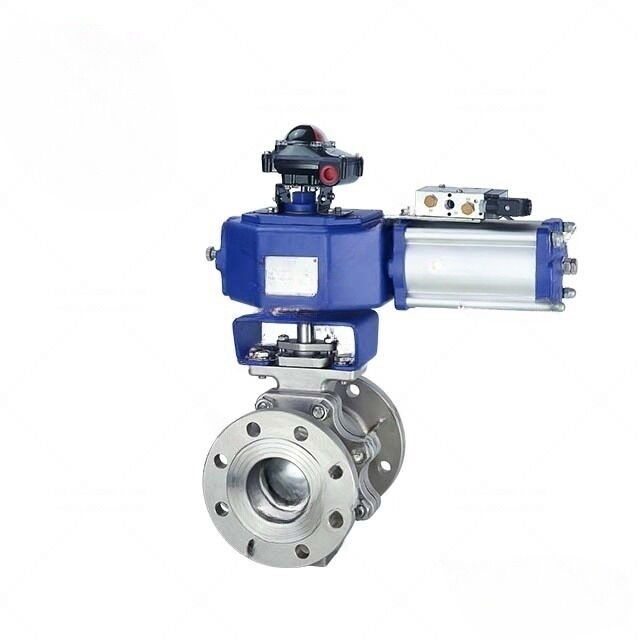

Pneumatic Trunnion Ball Control Valve, DN25-DN500, PN10-PN40
Key Specifications / Features
hits: 2
Our Pneumatic Trunnion Ball Control Valve, exported globally, offers an economical solution with high-performance capabilities. Crafted from durable carbon steel, it operates effectively across a range of sizes from 1 to 20 inches (DN25-DN500) and pressure ratings from PN10 to PN40 (150-300 LB). Featuring a quarter-turn mechanism for rapid and dependable on-off functionality, this valve ensures tight sealing and efficiency. Widely utilized in industries including pulp and paper refining, mining, chemical fiber production, sewage and water treatment, and sugar refining, it meets diverse operational demands with reliability. Choose our Pneumatic Trunnion Ball Control Valve for its robust design and versatility in critical industrial applications.
Request a quote
Tags
Detail Information
Product Introduction
Product Name: Pneumatic Trunnion Ball Control Valve
Size Range: 1 Inch - 20 Inch, DN25-DN500
Pressure Rating: PN10-PN40, Class 150 LB - 300 LB
Body Material: Carbon Steel, Stainless Steel, Special Alloys
Ball/Stem Material: Stainless Steel, Special Alloys
Seat Material: Stainless Steel, PEEK, PTFE, DEVLON
Face to Face: GB/T 12221-2005, ISO5725, EN558-12
Flange Standard: GB/T 9113.1, JB/T 79.1, HG 20592, ASME B16.5, EN1092-1
Applications: Pulp & Paper, Water Treatment, Beverage & Food, Fine Chemical, Power Planet, Steel Industry, etc.
Key Features
1. Upper and bottom bearings provide high mechanical stability and low initiation torque.
2. Self-lubricating bearings prevent the valve from sticking.
3. Trunnion ball design ensures precise positioning and smooth operation.
Product Name: Pneumatic Trunnion Ball Control Valve
Size Range: 1 Inch - 20 Inch, DN25-DN500
Pressure Rating: PN10-PN40, Class 150 LB - 300 LB
Body Material: Carbon Steel, Stainless Steel, Special Alloys
Ball/Stem Material: Stainless Steel, Special Alloys
Seat Material: Stainless Steel, PEEK, PTFE, DEVLON
Face to Face: GB/T 12221-2005, ISO5725, EN558-12
Flange Standard: GB/T 9113.1, JB/T 79.1, HG 20592, ASME B16.5, EN1092-1
Applications: Pulp & Paper, Water Treatment, Beverage & Food, Fine Chemical, Power Planet, Steel Industry, etc.
Key Features
1. Upper and bottom bearings provide high mechanical stability and low initiation torque.
2. Self-lubricating bearings prevent the valve from sticking.
3. Trunnion ball design ensures precise positioning and smooth operation.
