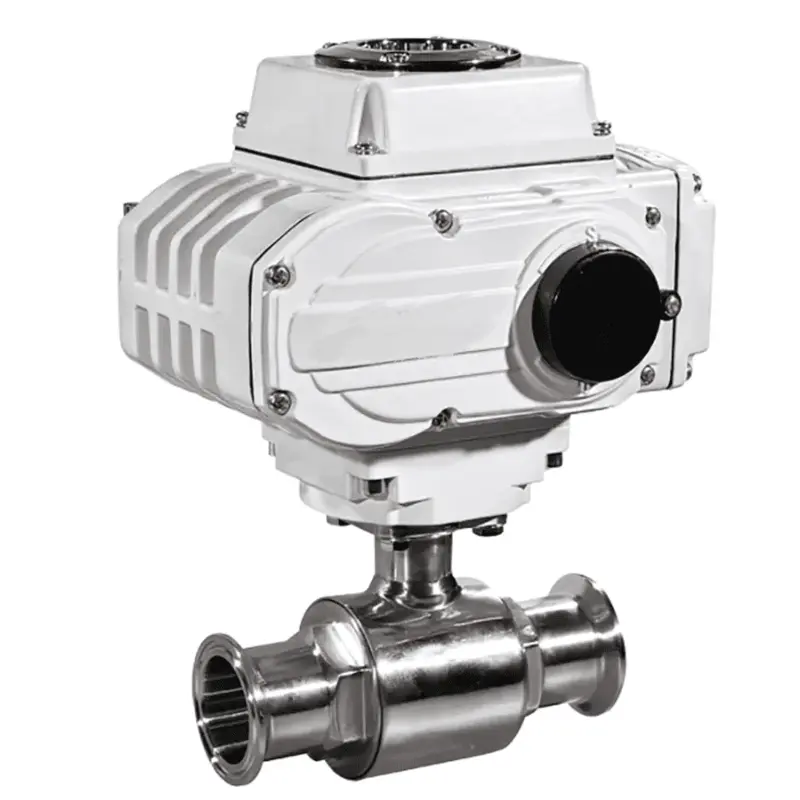

Tri-Clamp Electric Ball Control Valve, PN16, DN15-DN100
Key Specifications / Features
hits: 0
Presenting our Tri-Clamp Electric Ball Control Valve, a reliable solution for precise flow control. This quarter-turn, on/off valve is available in sizes DN15-DN100 (1/2-4 inches), ensuring versatility for various applications. Rated for PN16 and Class 150 LB, it guarantees robust performance under different pressures. Fabricated from premium stainless steel, it offers exceptional durability and corrosion resistance. The tri-clamp and butt-welded ends facilitate easy installation and maintenance, ideal for sanitary and industrial environments. Enhance your operational efficiency with this high-performance valve, delivering accurate control and long-lasting service.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Tri-Clamp Electric Ball Control Valve
Key Features: Quarter-turn, On/Off, Explosion Proof, Regulating Type and Intelligent Type
Size Range: DN15-DN100, 1/2 Inch - 4 Inch
Pressure Rating: PN16, Class 150 LB
Material: Stainless Steel and Plastic
Working Temperature: 14°F to 356°F (-10°C to 180°C )
Rotation: Quarter-turn
End Connection: Thread, Flange, Tri Clamp and Welding
Voltage: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC
Tolerance: ±10%
Suitable Medium: Water, Oil, Air, Gas, etc
Protection Class: IP65, Explosion Proof Construction Are Available: EX ll BT4
Product Name: Tri-Clamp Electric Ball Control Valve
Key Features: Quarter-turn, On/Off, Explosion Proof, Regulating Type and Intelligent Type
Size Range: DN15-DN100, 1/2 Inch - 4 Inch
Pressure Rating: PN16, Class 150 LB
Material: Stainless Steel and Plastic
Working Temperature: 14°F to 356°F (-10°C to 180°C )
Rotation: Quarter-turn
End Connection: Thread, Flange, Tri Clamp and Welding
Voltage: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC
Tolerance: ±10%
Suitable Medium: Water, Oil, Air, Gas, etc
Protection Class: IP65, Explosion Proof Construction Are Available: EX ll BT4
Electric Ball Control Valve
