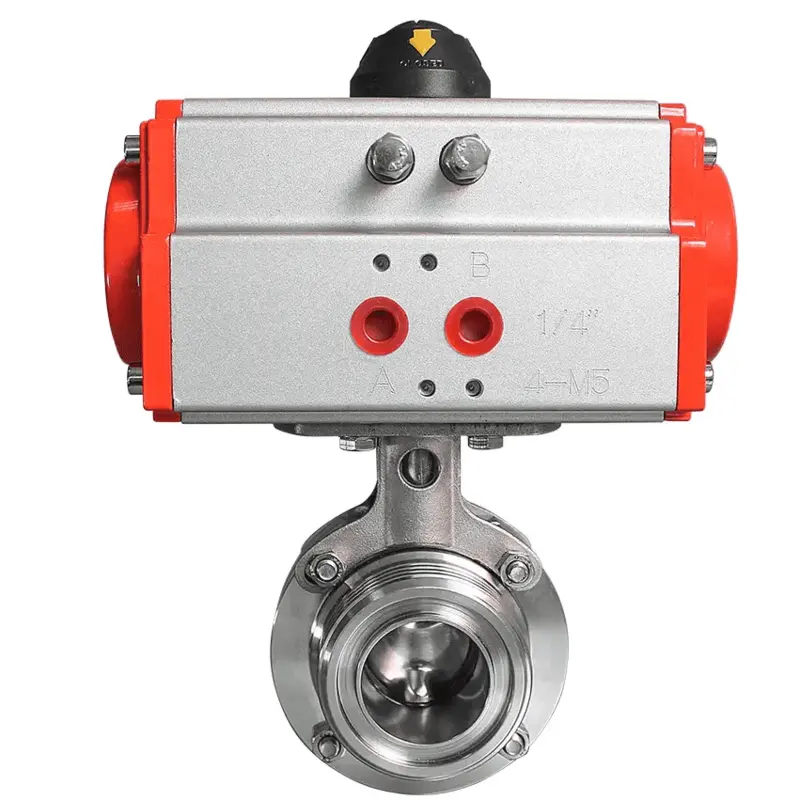

Sanitary Pneumatic Butterfly Control Valve, SS 316, DN8 PN16
Key Specifications / Features
Hits: 2
Offering our Sanitary Pneumatic Butterfly Control Valve, designed for eco-friendly and efficient flow control. This quarter-turn valve complies with GB, ANSI, JIS, and DIN standards, ensuring compatibility with various systems. Available in sizes from 1/2 to 4 inches and rated at PN10 and PN16, it guarantees reliable performance under pressure. Featuring a flange end for secure connections, it is ideal for sanitary applications requiring strict hygiene standards. Enhance your system with our valve's durable construction, easy operation, and environmental benefits, ensuring long-lasting, efficient, and sustainable performance.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Sanitary Pneumatic Butterfly Control Valves
Key Features: Eco-Friendly, Quarter-turn, Spring Return, Single Acting, Double Acting
Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure Rating: PN10, PN16, Class 150 LB
Material: Stainless Steel, SS 316, SS 304
Rotation: Quarter-turn
Applicable Standard: GB, ANSI, JIS, DIN
End Connection: Flange
Suitable Medium: Water, Oil, Air, Gas, etc.
Product Name: Sanitary Pneumatic Butterfly Control Valves
Key Features: Eco-Friendly, Quarter-turn, Spring Return, Single Acting, Double Acting
Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure Rating: PN10, PN16, Class 150 LB
Material: Stainless Steel, SS 316, SS 304
Rotation: Quarter-turn
Applicable Standard: GB, ANSI, JIS, DIN
End Connection: Flange
Suitable Medium: Water, Oil, Air, Gas, etc.

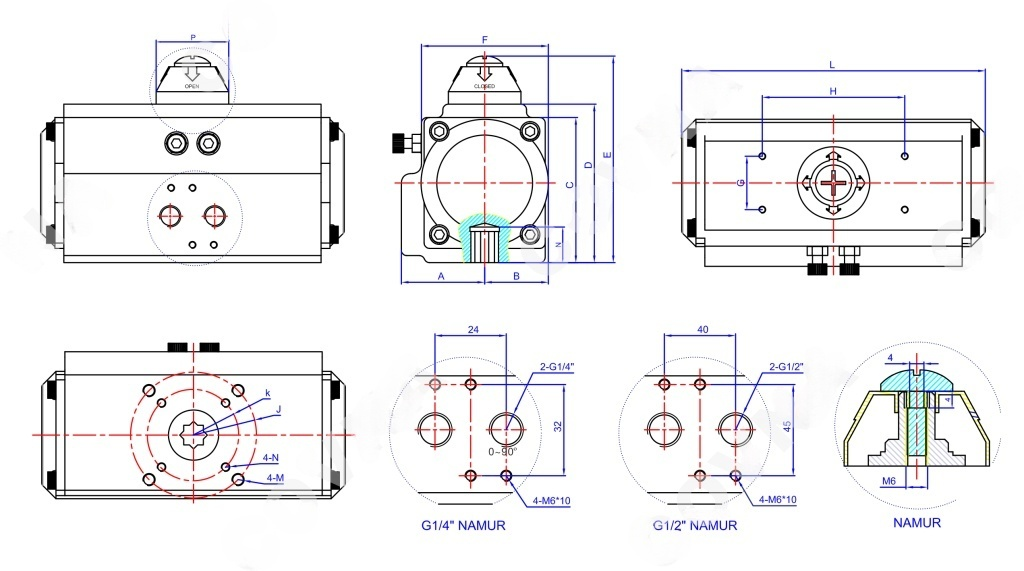

Drawing of Sanitary Pneumatic Butterfly Control Valve

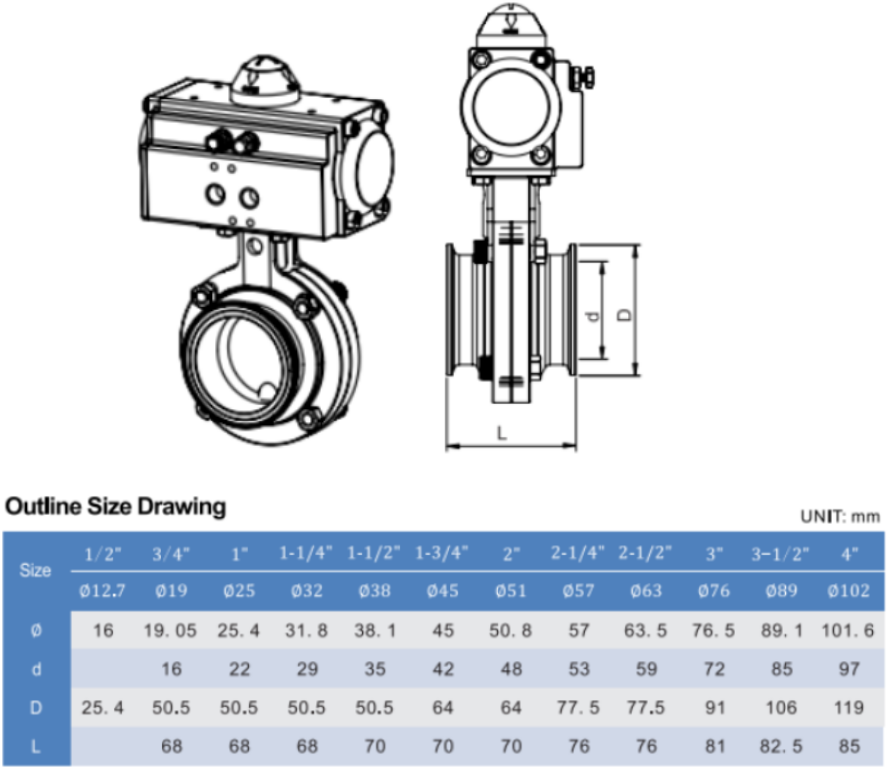

Dimension of Pneumatic Butterfly Control Valve
