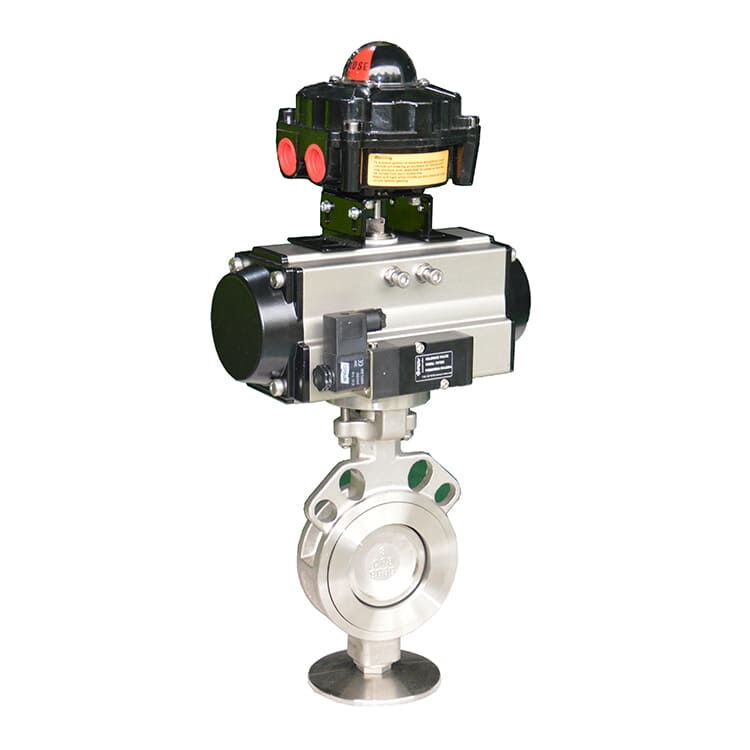

Pneumatic Butterfly Control Valve, ASTM A351 CF8, 2-40 IN

Key Specifications / Features

Our pneumatic butterfly control valve is engineered for high performance and reliability. Featuring a pneumatic actuator, it ensures efficient and precise control. Constructed from premium stainless steel (ASTM A351 CF8 and CF8M), the valve offers excellent corrosion resistance and durability. Available in sizes ranging from 2 to 40 inches (DN50-DN1000) and with pressure ratings of PN16 to PN40, it accommodates a variety of industrial applications. The wafer end design facilitates easy installation and maintenance. Choose our valve for robust construction, reliable performance, and long-lasting service in demanding environments.

Request a quote

Detail Information

SPECIFICATIONS
Product Name: Pneumatic Butterfly Control Valve
Body Material: Stainless Steel, ASTM A351 CF8, CF8M, CF3M
Disc: Stainless Steel, ASTM A351 CF3M, CF3, CF8M, Double Stainless Steel, 2507, 1.4529
Size Range: 2 Inch - 40 Inch, DN50-DN1000
Pressure Rating: PN16-PN40
End:
EN 1092 PN 6, PN10, PN16, PN25, PN40
ASME Class 150 LB AS 4087 PN10, PN16, PN25, PN40
JIS 5K, 10K, 20K
Medium: Gas, Water and Oil, etc
Pneumatic Actuator: Double acting,Single acting normally closed, acting,Single normally open
Option: Solenoid valve, limit switch box , filter, E/P positioner, hand wheel
Seat: PTFE, RPTFE
End Connection: Wafer, Lug
