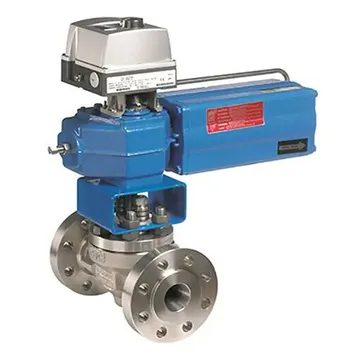

Top Entry Ball Control Valve, 1-16 IN, 150-600 LB, WCC, CF8M
Key Specifications / Features
Model no.: CNCV-240509-BCV-01
Hits: 1
Our Top Entry Ball Control Valve Factory produces robust valves with Trunnion Mounted design, suitable for a wide range of applications. Available in sizes ranging from 1 to 16 inches and designed to handle Class 150-600 LB pressure ratings, these valves are crafted from durable materials like Carbon Steel and Stainless Steel. They feature both Flanged and Welded Ends for easy installation and secure sealing.
Request a quote
Tags
Detail Information
Product Name: Top Entry Ball Control Valve
Key Features: Trunnion Mounted, Top Entry, Single Seated Rotary Control Valve
Size Range: 1-16 Inch, DN25-DN400
Pressure Range: Class 150-600 LB, PN25-PN100
Body Material: Carbon Steel ASTM A216 WCC, Stainless Steel ASTM A351 CF8M
Fire Safe: API 607
End Connection: Flanged, Welded
Actuator: Pneumatic Double Acting or Spring Return Actuator
Temperature Range: -200 °C to +600 °C
Flow Characteristics: Equal Percentage, Linear
Rangeability: 150:1
Leakage: ANSI Class V (Metal Seat) and Class VI (Soft Seat)
