Electric Ball Control Valve, 3-PC, DN15-DN250, PN16-PN63
Key Specifications / Features
Hits: 0
Introducing the 3PC Electric Ball Control Valve, featuring an Electric Actuator for precise control. Crafted in a Three-Piece design, these valves are lightweight and durable, suitable for a wide range of applications. Available in sizes ranging from DN15 to DN250 (1/2 to 10 inches) and pressure ratings from PN16 to PN63 (150 to 300 LB), they offer versatility for various systems. Benefit from seamless automation, efficient flow control, and reliable performance, making them ideal for industries requiring dependable fluid management solutions. Trust in the quality and precision of these electric ball control valves for your operational needs.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: 3PC Electric Ball Control Valve
Size Range: DN15-DN250, 1/2 Inch - 10 Inch
Pressure Rating: Class 150 LB - 300 LB, PN16-PN63
Materials: Cast Iron, Carbon Steel, ASTM A216 WCB, Stainless Steel, ASTM A351 CF8, CF8M
Disc: Ductile iron, cast iron, ASTM A216 WCB
Stem: ASTM A216 WCB, Stainless Steel
Medium: Oil, Gas, Fuel, etc
Suitable temperature: ≤120°C
Temperature Of Media: -40°C to 80°C (-40°F to 176°F) (PTFE/PPL Sealing), -40°C to 350°C (-40°F to 662°F) (Metal Sealing)
Voltage: DC-12V, 24V, AC-24V, 110V, 220V, 380V
Voltage Tolerance: ±10%
End Connection: Flanged
Features:
1. The ball valve is available in threaded and butt welded connections, offered in 1-piece, 2-piece, and 3-piece configurations.
2. The body casting utilizes advanced technology from Taiwan, ensuring a rational structure and attractive appearance.
3. Its elastic sealing structure enhances seat reliability and facilitates smooth operation.
4. The valve stem employs an inverted structure for downward sealing, with a lower-loading stem featuring backward sealing construction to prevent handle backing-out and ensure sealing reliability.
5. Options include butt weld (BW) and socket weld (SW) connections for the 2-piece and 3-piece ball valves, compatible with the ISO platform and locking devices per international standards.
Product Name: 3PC Electric Ball Control Valve
Size Range: DN15-DN250, 1/2 Inch - 10 Inch
Pressure Rating: Class 150 LB - 300 LB, PN16-PN63
Materials: Cast Iron, Carbon Steel, ASTM A216 WCB, Stainless Steel, ASTM A351 CF8, CF8M
Disc: Ductile iron, cast iron, ASTM A216 WCB
Stem: ASTM A216 WCB, Stainless Steel
Medium: Oil, Gas, Fuel, etc
Suitable temperature: ≤120°C
Temperature Of Media: -40°C to 80°C (-40°F to 176°F) (PTFE/PPL Sealing), -40°C to 350°C (-40°F to 662°F) (Metal Sealing)
Voltage: DC-12V, 24V, AC-24V, 110V, 220V, 380V
Voltage Tolerance: ±10%
End Connection: Flanged
Features:
1. The ball valve is available in threaded and butt welded connections, offered in 1-piece, 2-piece, and 3-piece configurations.
2. The body casting utilizes advanced technology from Taiwan, ensuring a rational structure and attractive appearance.
3. Its elastic sealing structure enhances seat reliability and facilitates smooth operation.
4. The valve stem employs an inverted structure for downward sealing, with a lower-loading stem featuring backward sealing construction to prevent handle backing-out and ensure sealing reliability.
5. Options include butt weld (BW) and socket weld (SW) connections for the 2-piece and 3-piece ball valves, compatible with the ISO platform and locking devices per international standards.

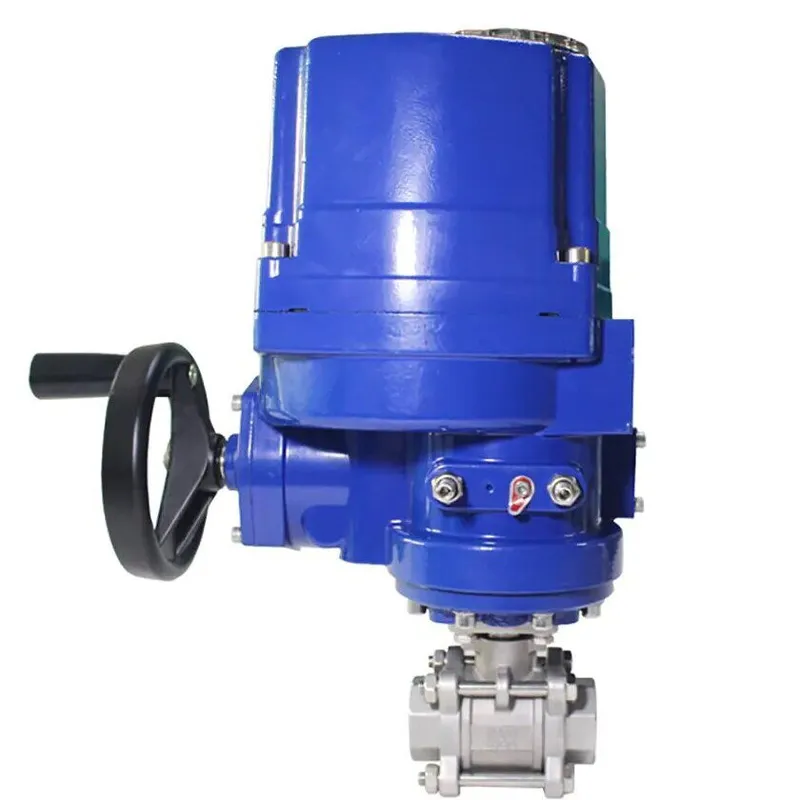

Electric Ball Control Valve
Drawing of Electric Ball Control Valve
Dimension of Electric Ball Control Valve
Drawing of Electric Ball Control Valve
Dimension of Electric Ball Control Valve
