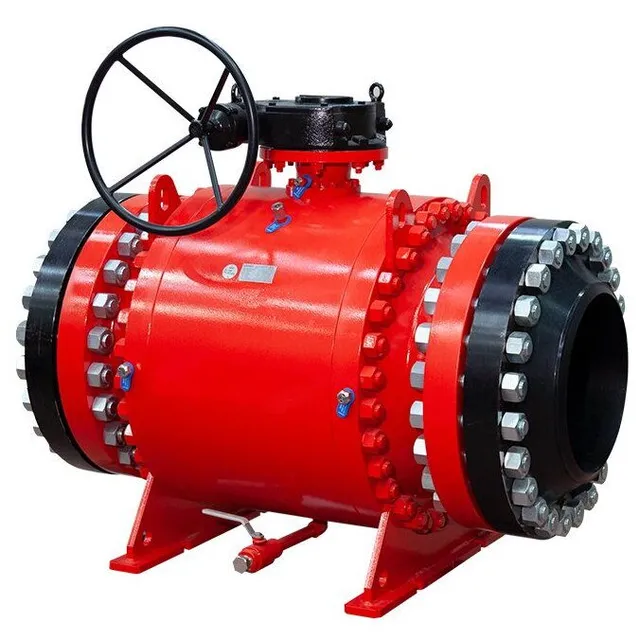

Flanged Ball Control Valve, Class 150-2500 LB, ISO 17292
Key Specifications / Features
Hits: 1
Introducing our Ball Control Valve, equipped with a Lever Actuator, Trunnion design, and Full Bore functionality, adhering to ASME B16.34, API 6D, and ISO 14313 standards. Available in sizes ranging from 2 to 56 inches, with pressure ratings from PN25 to PN420 and 150 to 2500 LB. Thanks to low torque values, a smaller actuator can be chosen, with automatic actuator selection for convenience. Features include fixed lifting lugs for easy handling, emergency sealing fittings as a default, and renewable seats, available in both metal and soft variants. Additionally, it boasts a blow-out-proof stem, with an optional locking device for added security.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Flanged Ball Control Valve
Design Standard: ASME B16.34, API 6D, ISO 14313, ISO 17292
Size Range: 2 Inch - 56 Inch, DN50-DN1400
Pressure Rating: PN25-PN420, Class 150 LB - 2500 LB
Bore: Full Bore, Reduced Bore
Operator: Lever, Gear, Actuator
Material: Carbon Steel, Stainless Steel, Duplex, Alloy Steel
Operating Temperature: Low, Standard, High
Face to Face Standard: ASME B16.10
End Connection Standard: ASME B16.5, ASME B16.25, DIN EN 1092-1
Test Standard: API 6D, API 598, ISO 14313
Fire Safe Standard: API 607, ISO 10497, API 6FA
End Connection: RF (Raised Face), RTJ (Ring Type Joint), BW (Butt Weld)
Leakage Class: API 598, ANSI FC70-2, ISO 5208
Features:
Due to low torque values, smaller actuator can be selected.
The actuator selection is automatic.
Fixed lifting lugs on the valve.
Easy maintenance.
Emergency sealing fittings are default.
Renewable seats.
Available with metal and soft seats.
Blow-out-proof stem.
Locking device is optional.
Product Name: Flanged Ball Control Valve
Design Standard: ASME B16.34, API 6D, ISO 14313, ISO 17292
Size Range: 2 Inch - 56 Inch, DN50-DN1400
Pressure Rating: PN25-PN420, Class 150 LB - 2500 LB
Bore: Full Bore, Reduced Bore
Operator: Lever, Gear, Actuator
Material: Carbon Steel, Stainless Steel, Duplex, Alloy Steel
Operating Temperature: Low, Standard, High
Face to Face Standard: ASME B16.10
End Connection Standard: ASME B16.5, ASME B16.25, DIN EN 1092-1
Test Standard: API 6D, API 598, ISO 14313
Fire Safe Standard: API 607, ISO 10497, API 6FA
End Connection: RF (Raised Face), RTJ (Ring Type Joint), BW (Butt Weld)
Leakage Class: API 598, ANSI FC70-2, ISO 5208
Features:
Due to low torque values, smaller actuator can be selected.
The actuator selection is automatic.
Fixed lifting lugs on the valve.
Easy maintenance.
Emergency sealing fittings are default.
Renewable seats.
Available with metal and soft seats.
Blow-out-proof stem.
Locking device is optional.
