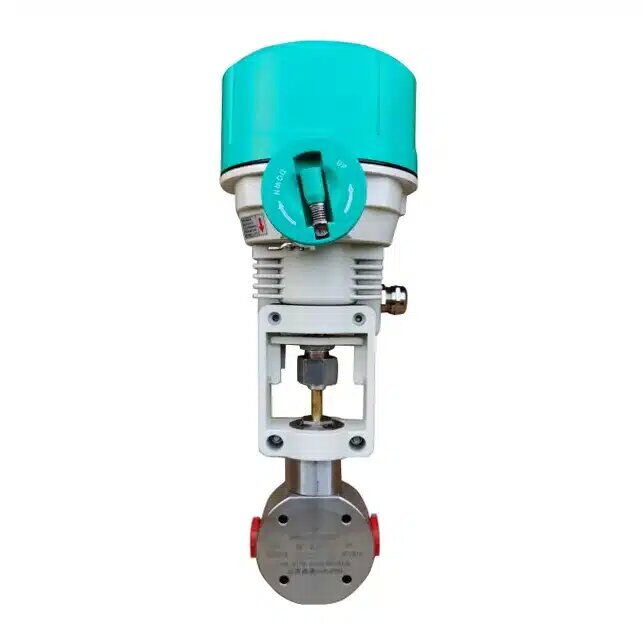

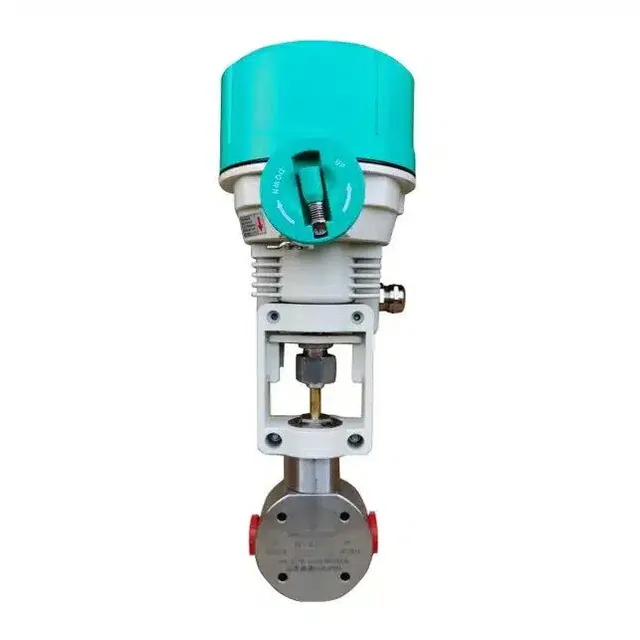

Two Way Research Control Valve, 3/4 - 1-1/4 Inch, PN160
Key Specifications / Features
Hits: 4
Offering a range of 3/4 to 1-1/4 Inch, our valves boast a design pressure of PN160. With NPT connections, they operate in Electric Regulating or Electric Switching modes. Featuring a Needle Valve Seat structure, these valves are compact and lightweight. Crafted from forged raw materials, they exhibit exceptional pressure resistance, with disassemblable internal parts for cost-effective maintenance, ensuring equipment stability and leak prevention. Electric actuators deliver precise regulation, controlling flow rates for water molecule separation and discharge. They also mitigate cavitation, noise, and piping vibration. Labyrinth-type valve cages offer multi-stage pressure reduction with adjustable ratios up to 100:1, ensuring no external leakage with double sealing. Various electric actuator models are available to accommodate a range of pressure drops.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Two Way Research Control Valve
Size Ranges: 3/8 Inch, 1/2 Inch, 3/4 Inch, 1 Inch, 1-1/4 Inch, DN10, DN15, DN20, DN25, DN32
Pressure Rating: PN16-PN320, Class 150 to Class 2500 LB
Body Material: SS 304, SS 316L, SS 904L, 2507, 2205, HC276
End Connection: Threaded Ends(G, NPT, ZG ), Flanged Ends（HG/T 20592-2009)
Bonnet Type: Standard Type, Cryogenic Type, extension Type, Bellows Type
Plug Type: Needle, Cage Type
Flow Characteristics: Equal Percentage, Linear Percentage
Unique Features: High Precision, Long Service Time, Compact Structure Design, Special Tools
Research Control Valves Offer Several Advantages:
1. Compact and lightweight design.
2. Constructed from forged raw materials for exceptional pressure resistance. Disassemblable internal parts reduce maintenance costs, ensuring equipment stability and leak prevention.
3. Electric actuators provide high precision regulation, controlling flow rates for membrane water molecule separation and concentrated water discharge.
4. Mitigation of cavitation, noise, and piping vibration.
5. Labyrinth-type valve cages enable multi-stage pressure reduction, with adjustable ratios up to 100:1. Double sealing prevents external leakage.
Product Name: Two Way Research Control Valve
Size Ranges: 3/8 Inch, 1/2 Inch, 3/4 Inch, 1 Inch, 1-1/4 Inch, DN10, DN15, DN20, DN25, DN32
Pressure Rating: PN16-PN320, Class 150 to Class 2500 LB
Body Material: SS 304, SS 316L, SS 904L, 2507, 2205, HC276
End Connection: Threaded Ends(G, NPT, ZG ), Flanged Ends（HG/T 20592-2009)
Bonnet Type: Standard Type, Cryogenic Type, extension Type, Bellows Type
Plug Type: Needle, Cage Type
Flow Characteristics: Equal Percentage, Linear Percentage
Unique Features: High Precision, Long Service Time, Compact Structure Design, Special Tools
Research Control Valves Offer Several Advantages:
1. Compact and lightweight design.
2. Constructed from forged raw materials for exceptional pressure resistance. Disassemblable internal parts reduce maintenance costs, ensuring equipment stability and leak prevention.
3. Electric actuators provide high precision regulation, controlling flow rates for membrane water molecule separation and concentrated water discharge.
4. Mitigation of cavitation, noise, and piping vibration.
5. Labyrinth-type valve cages enable multi-stage pressure reduction, with adjustable ratios up to 100:1. Double sealing prevents external leakage.

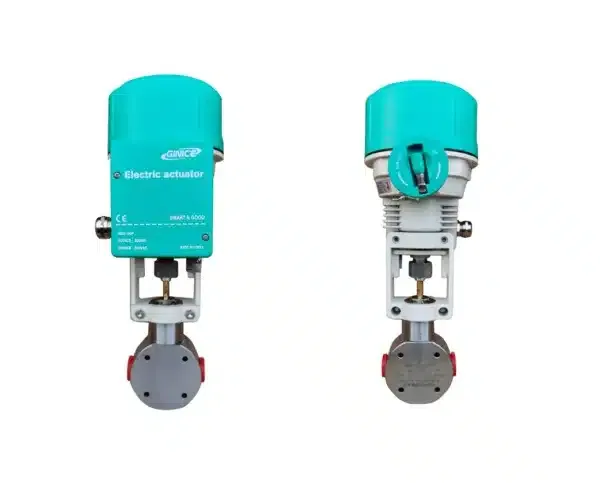

Research Metering Control Valves Manufacturer
Working Principle for Metering Control Valve
Sea Water Desalination RO System
Flow Characteristic Curve
Working Principle for Metering Control Valve
Sea Water Desalination RO System
Flow Characteristic Curve
