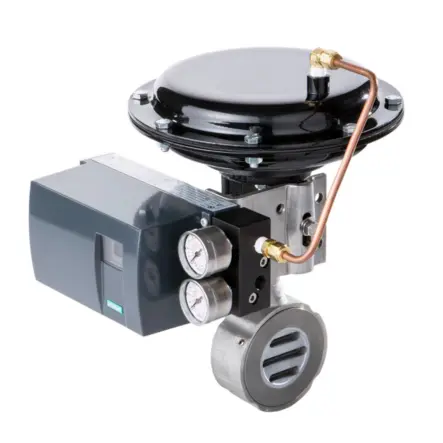

Wafer Style Motorized Contol Valve, 1-8 IN, Stainless Steel
Key Specifications / Features
Hits: 29
The Wafer Style Motorized Control Valve is a lightweight, motor-operated valve available in sizes from 1 to 8 inches (DN25-DN200). Fabricated from high-quality stainless steel and carbon steel, it features a compact wafer-style body that weighs significantly less than traditional valves. With pressure ratings of PN10 and Class 150 LB, this valve offers excellent durability and performance. The reduced use of steel and raw materials minimizes shipping size, weight, packaging waste, and costs, making it an eco-friendly choice. It also consumes fewer fossil fuels during manufacturing, shipping, and daily operations, and requires fewer resources for maintenance, contributing to sustainable practices.
Request a quote Tags
Detail Information
SPECIFICATIONS
Product Name: Wafer Style Motorized Control Valves
Size Range: 1 Inch - 8 Inch, DN25-DN200
Pressure: PN10, Class 150 LB
Body Materials: Stainless Steel, Carbon Steel
Trim Material: Stainless Steel 304 (8 Inch only), Stainless Steel 316
Seats Materials: Jorcote/SS 316 – Standard, Jorcote with SS 304 - Optional
Yoke Materials: Ductile Iron (1 Inch - 2 Inch), NAMUR Cast Iron
Actuator Case Material: SW Poland B
Packing Material:
Spring loaded Teflon V-Ring to 500°F (260°C)
Grafoil above 500°F (260°C)
Cv (Kv): Up to 600 (Up to 519)
Turndown Ratio: 100:1
Shutoff: ANSI Class IV tightness
Body/Bonnet Connection:
Stainless Steel 316 (ASME SA-479)
Carbon Steel (SA-105)
Action: Direct (ATC), Reverse (ATO)
Actuators:
35M, 55M, 85M, 100M multi-spring actuator (de pending on size/pressure drop).
Direct mount pneumatic piston.
Electric motorized.
Turndown Ratio Capability: Up to 100:1 (depending on application)
Features & Benefits:
1. Pricing Advantage: Exceptional market pricing due to the wafer-style body.
2. Weight Advantage: Reduced costs and installation time thanks to its lightweight design.
3. High Capacity: Excellent flow capacity in a compact wafer-style body.

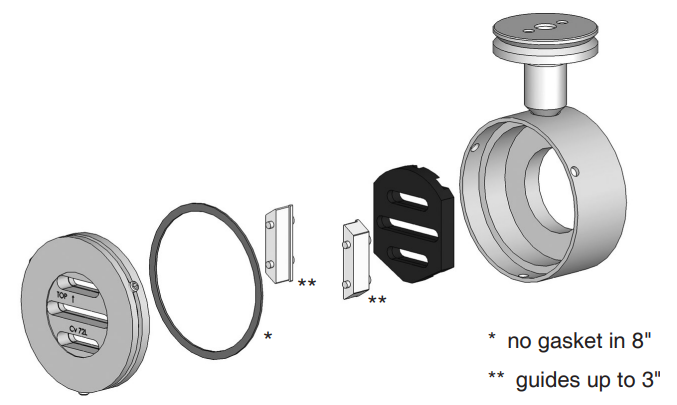

4. Ease of Maintenance: The 'T' slot disc connection allows for quick and easy function reversal.

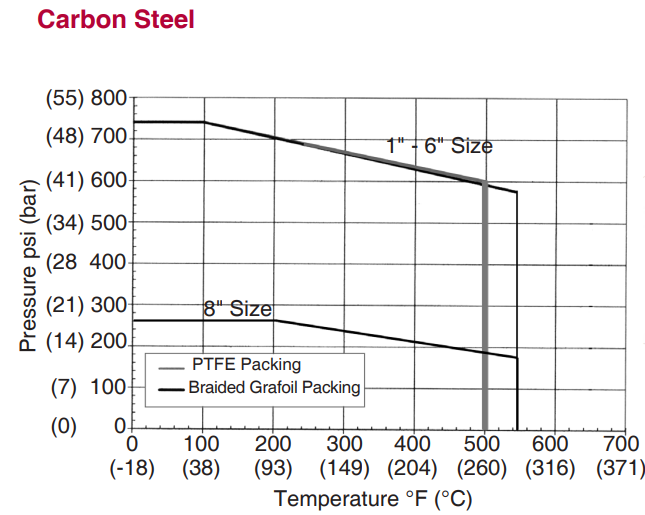

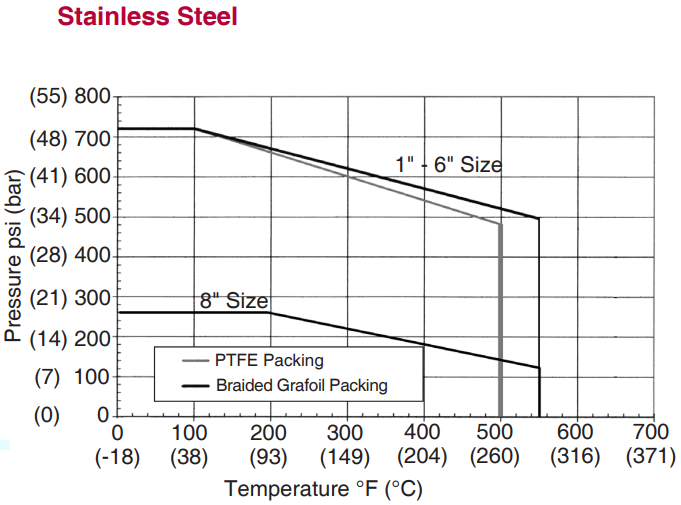

Pressure/Temperature Chart:

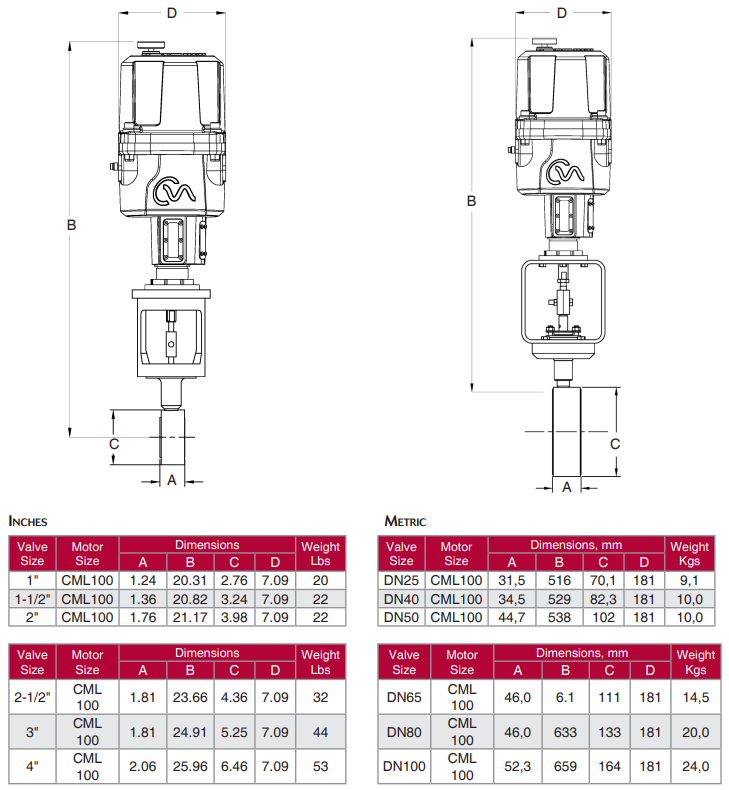

Dimensions:
Product Name: Wafer Style Motorized Control Valves
Size Range: 1 Inch - 8 Inch, DN25-DN200
Pressure: PN10, Class 150 LB
Body Materials: Stainless Steel, Carbon Steel
Trim Material: Stainless Steel 304 (8 Inch only), Stainless Steel 316
Seats Materials: Jorcote/SS 316 – Standard, Jorcote with SS 304 - Optional
Yoke Materials: Ductile Iron (1 Inch - 2 Inch), NAMUR Cast Iron
Actuator Case Material: SW Poland B
Packing Material:
Spring loaded Teflon V-Ring to 500°F (260°C)
Grafoil above 500°F (260°C)
Cv (Kv): Up to 600 (Up to 519)
Turndown Ratio: 100:1
Shutoff: ANSI Class IV tightness
Body/Bonnet Connection:
Stainless Steel 316 (ASME SA-479)
Carbon Steel (SA-105)
Action: Direct (ATC), Reverse (ATO)
Actuators:
35M, 55M, 85M, 100M multi-spring actuator (de pending on size/pressure drop).
Direct mount pneumatic piston.
Electric motorized.
Turndown Ratio Capability: Up to 100:1 (depending on application)

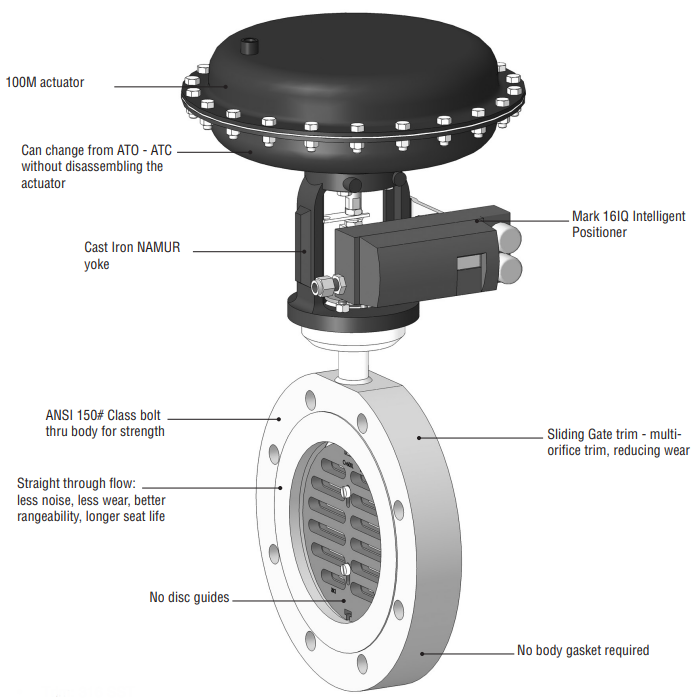

Wafer Style Motorized Control Valve
Features & Benefits:
1. Pricing Advantage: Exceptional market pricing due to the wafer-style body.
2. Weight Advantage: Reduced costs and installation time thanks to its lightweight design.
3. High Capacity: Excellent flow capacity in a compact wafer-style body.
4. Ease of Maintenance: The 'T' slot disc connection allows for quick and easy function reversal.
Wafer Type Control Valve
Pressure/Temperature Chart:
Dimensions:
