220V AC Electric 2 Way Ball Control Valve, 1/2-3 IN, 400 LB
Key Specifications / Features
Hits: 11
Our Electric 2-Way Ball Control Valve excels in precision and reliability, tailored for demanding industrial environments. Available in sizes from 1/2 inch to 3 inches (DN15-DN80), it operates seamlessly with a PN63 (Class 400 LB) pressure rating. Crafted from durable Stainless Steel 316, including the ball, it ensures exceptional corrosion resistance. Equipped with ISO 5211 flanges and PTFE seals, this valve guarantees secure connections and dependable performance in chemical processing, treatment plants, and applications requiring precise control over acids and stainless steel-resistant fluids. Choose between 220VAC or 24VDC power options for versatility, complemented by IP68-rated protection and a wide temperature range of -30°C to +60°C. Optional manual handle operation adds further flexibility to suit varied operational needs.
Request a quote
Tags
Detail Information
Product Descriptions
Product Name: Electric 2 Way Ball Control Valve
Size Range: 1/2 Inch - 3 Inch, DN15-DN80
Pressure Rating: PN63, Class 400 LB
Body Material: Stainless Steel 316
Ball Material: Stainless Steel 316
Flange: ISO 5211
End Connection: Flanged
Seal: PTFE
Applications: Chemical Industry, For acids and chemical controls, For purpose of drain and stopper at the end of the line, Treatment plants, Stainless Steel Resistant Fluid Types.
Connection Standard: B2.1 BS21 1973 DIN 259/2999 NPT
Protection Class: IP68
Dehumidification: 5 W Heater Against Humidity
Working Voltage: 220VAC, 24VDC
Working Temperature: -30°C to +60°C
Torque Range: 50Nm to 100 Nm
Position Indicator: Open / Close
Alternative Operation: Manual Handle
Product Name: Electric 2 Way Ball Control Valve
Size Range: 1/2 Inch - 3 Inch, DN15-DN80
Pressure Rating: PN63, Class 400 LB
Body Material: Stainless Steel 316
Ball Material: Stainless Steel 316
Flange: ISO 5211
End Connection: Flanged
Seal: PTFE
Applications: Chemical Industry, For acids and chemical controls, For purpose of drain and stopper at the end of the line, Treatment plants, Stainless Steel Resistant Fluid Types.
Connection Standard: B2.1 BS21 1973 DIN 259/2999 NPT
Protection Class: IP68
Dehumidification: 5 W Heater Against Humidity
Working Voltage: 220VAC, 24VDC
Working Temperature: -30°C to +60°C
Torque Range: 50Nm to 100 Nm
Position Indicator: Open / Close
Alternative Operation: Manual Handle

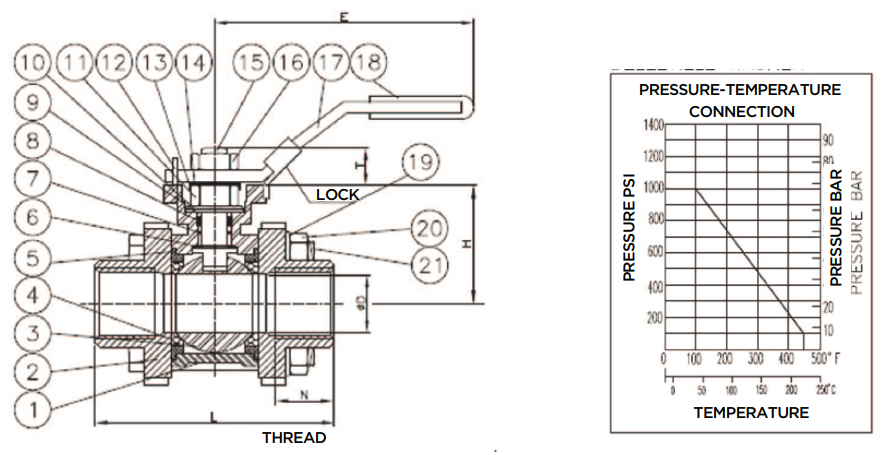

Drawing for Ball Control Valve
| SIZE | Ø D | L ± 2 | H | E ± 3 | T | S | Ø D1 | L1 ± 2 | ISO 5211 | N | KV VALUES | ||
| DN | INCH | Ø K1 | Ø K2 | ||||||||||
| 15 | 1/2 Inch | 15 | 75 | 38.0 | 140 | 9 | 9 | 21.8 | 70 | F03 | F04 | 20.0 | 9.7 |
| 20 | 3/4 Inch | 20 | 80 | 47.0 | 140 | 9 | 9 | 27.2 | 85 | F03 | F04 | 21.0 | 18.2 |
| 25 | 1 Inch | 25 | 90 | 57.2 | 154 | 11 | 11 | 34.0 | 95 | F04 | F05 | 21.0 | 30.3 |
| 32 | 1-1/4 Inch | 32 | 110 | 62.5 | 154 | 11 | 11 | 42.7 | 110 | F04 | F05 | 27.5 | 49.3 |
| 40 | 1-1/2 Inch | 38 | 120 | 77.5 | 184 | 14 | 14 | 48.8 | 120 | F05 | F07 | 26.5 | 69.2 |
| 50 | 2 Inch | 50 | 162 | 86.5 | 184 | 14 | 14 | 61.2 | 142 | F05 | F07 | 31.0 | 129.7 |
| 65 | 2-1/2 Inch | 65 | 162 | 108.0 | 261 | 17 | 17 | 74.0 | 168 | F07 | F10 | 28.0 | 229.2 |
| 80 | 3 Inch | 80 | 184 | 115.0 | 261 | 17 | 17 | 90.0 | 182 | F07 | F10 | 33.5 | 358.9 |
| 100 | 4 Inch | 100 | 228 | 141.0 | 337 | 22 | 22 | 115.6 | 227 | F10 | F12 | 41.0 | 674.6 |
