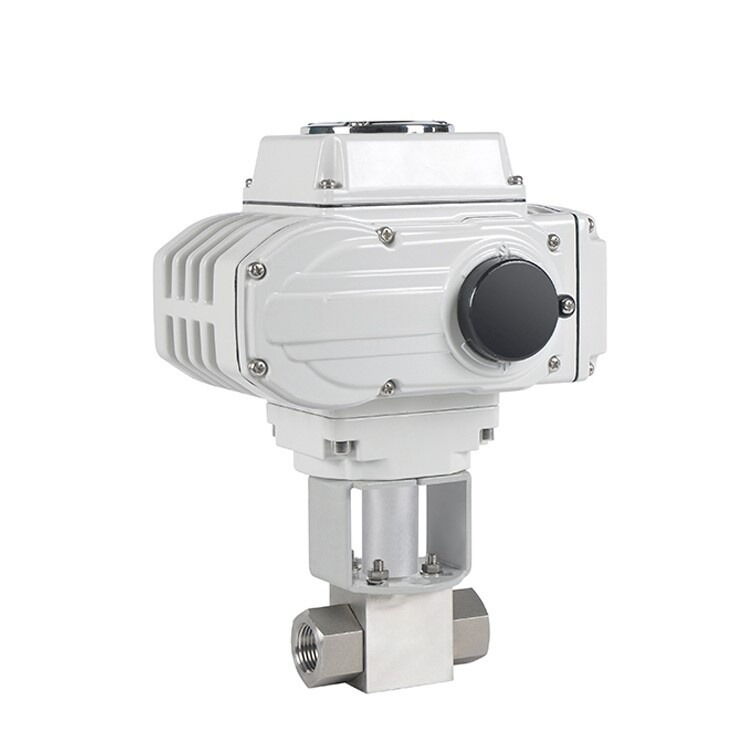

Electric Ball Control Valve, 1/2-2 Inch, PN16, Class 150 LB
Key Specifications / Features
hits: 1
Our electric ball control valve offers both modulating and on/off functionality for high-pressure applications. Made of durable stainless steel, it comes in sizes ranging from 1/2 to 2 inches (DN15-DN100) with PN16 and Class 150 LB ratings. The valve features a threaded end for easy installation.
This 2-way ultrahigh pressure ball valve operates by rotating the ball core 90 degrees to open or close. It boasts high-pressure forging with a German-imported seal assembly, ensuring initial and self-sealing performance. Enhanced with a stainless steel butterfly spring cushion, it withstands medium pressure rises.
Ideal for ultrahigh pressure liquids, gases, or mixtures, it’s perfect for applications in ultrahigh pressure testing machines, pneumatic pumps, hydraulic pumps, and deep-sea detectors.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Electric Ball Control Valve
Key Features: Modulating, On/Off, High Pressure
Size Range: 1/2 Inch - 2 Inch, DN15-DN50
Pressure: PN16, Class 150 LB
Body Material: Stainless Steel
Stem Material: Stainless Steel
Disc Material: SS 304, SS 316, SS 316L
Sealing Material: PTFE, PPL
End Connection: Thread
Structure: Floating Ball Core
Design Standard: ISO, DIN, IDF, SMS, 3A
Applicable Media: Water, Air, Gas, Steam, Oil, Liquid
Product Name: Electric Ball Control Valve
Key Features: Modulating, On/Off, High Pressure
Size Range: 1/2 Inch - 2 Inch, DN15-DN50
Pressure: PN16, Class 150 LB
Body Material: Stainless Steel
Stem Material: Stainless Steel
Disc Material: SS 304, SS 316, SS 316L
Sealing Material: PTFE, PPL
End Connection: Thread
Structure: Floating Ball Core
Design Standard: ISO, DIN, IDF, SMS, 3A
Applicable Media: Water, Air, Gas, Steam, Oil, Liquid
