Electric Ball Control Valve, 1/2-4 Inch, 150-300 LB, SS 316
Key Specifications / Features
Hits: 4
Our Electric Ball Control Valve sets the standard for precision and reliability. Available in sizes ranging from 1/2 inch to 4 inches (DN15-DN100) and designed to handle pressure ratings from Class 150 LB to 300 LB (PN16-PN40), it caters to a wide range of industrial applications. Crafted from durable aluminum casting and SS 316, the valve excels in corrosion resistance. Choose between 220VAC or 24VDC power options and benefit from IP68-rated protection against environmental elements. Ideal for On-Off operations, it operates flawlessly within a temperature range of -30°C to +60°C. With ISO 5211 valve and flange connections, PTFE seals, and an SS 316 ball, it ensures reliable performance in chemical processing, treatment plants, and environments requiring precise control of acids and stainless steel-resistant fluids. For added versatility, manual handle operation is also available.
Request a quote
Tags
Detail Information
Product Descriptions
Product Name: Electric Ball Control Valves
Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure Rating: Class 150 LB - 300 LB, PN16-PN40
Body Material: Aluminium Casting, SS 316
Working Voltage: 220V AC, 24V DC
Protection Class: IP68
Type: On-Off
Working Temperature: -30°C to +60°C
Valve Connection: ISO 5211
Ball: SS 316
Flange: ISO 5211
Seal: PTFE
Torque Range: 50Nm to 100 Nm
Position Indicator: Open / Close
Alternative Operation: Manual Handle
Applications: Chemical Industry, For acids and chemical controls, For purpose of drain and stopper at the end of the line, Treatment plants, Stainless Steel Resistant Fluid Types.
Product Name: Electric Ball Control Valves
Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure Rating: Class 150 LB - 300 LB, PN16-PN40
Body Material: Aluminium Casting, SS 316
Working Voltage: 220V AC, 24V DC
Protection Class: IP68
Type: On-Off
Working Temperature: -30°C to +60°C
Valve Connection: ISO 5211
Ball: SS 316
Flange: ISO 5211
Seal: PTFE
Torque Range: 50Nm to 100 Nm
Position Indicator: Open / Close
Alternative Operation: Manual Handle
Applications: Chemical Industry, For acids and chemical controls, For purpose of drain and stopper at the end of the line, Treatment plants, Stainless Steel Resistant Fluid Types.

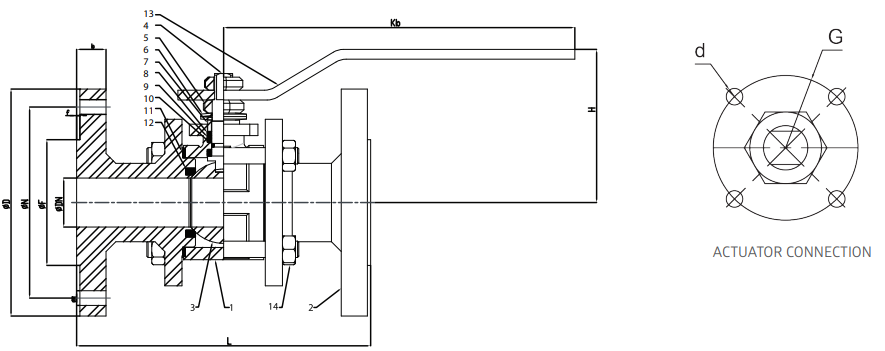

Drawing for Electric Ball Control Valve
| NO | PART NAME | STAINLESS STEEL BALL VALVE | |
| 1 | BODY | S.C. AISI 304- AISI 316 | S.C. AISI 304- AISI 316 |
| DN15-DN100 | DN125-DN200 | ||
| 2 | CAP | S.C.. S.P. AISI 304- AISI 316 | S.C.. S.P. AISI 304- AISI 316 |
| DN15-DN65 | DN80-DN200 | ||
| 3 | BALL | AISI 304 | AISI 316 |
| 4 | BALL SHAFT | AISI 304 | AISI 316 |
| 5 | NUT | A2 STAINLESS | |
| 6 | STAMP | STAINLESS | |
| 7 | RING | STAINLESS | |
| 8 | NECK GASKET | PTFE | |
| 9 | SHAFT STEEL RING | STAINLESS | |
| 10 | ORING | VITON | |
| 11 | BALL GASKET | PTFE | |
| 12 | VALVE HANDLE | AISI 304 | |
| 13 | NUT | AISI 304 | |
