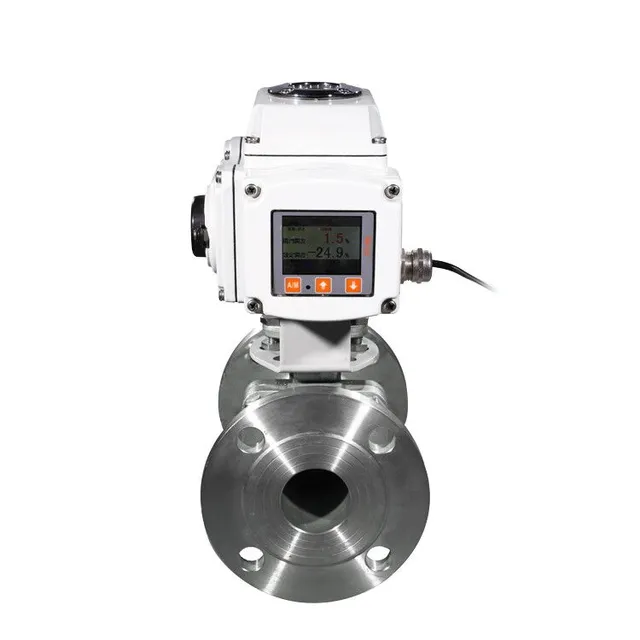

Modulating Electric Ball Control Valve, 1/2-8 IN, 150-300 LB
Key Specifications / Features
Hits: 0
As a premier Modulating Electric Ball Control Valve Factory, we specialize in providing precise flow control solutions. Our valves, featuring On/Off functionality, are meticulously crafted from ASTM A216 WCB and Stainless Steel materials, ensuring durability and corrosion resistance. Available in sizes ranging from 1/2 to 8 inches (DN15-DN200) and pressure ratings from PN16 to PN64 and Class 150-400 LB, they offer versatility for various applications. With flanged connections, installation is quick and hassle-free. Whether it's regulating flow in industrial processes or managing fluid distribution systems, our valves deliver exceptional performance and reliability, making them the ideal choice for discerning professionals.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Modulating Electric Ball Control Valve
Size Range: DN15-DN200, 1/2 Inch - 8 Inch
Pressure Rating: PN10-PN64, CLass 150 LB - 400 LB
Core Material: Stainless Steel, ASTM A216 WCB
Body Material: Stainless Steel
End Connection: Flange
Temperature Of Media: -10°C to 180°C (-14°F to 356°F )
Voltage: DC-12V, 24V, AC-24V, 120V, 240V/60Hz, 110V, 220V/50Hz
Voltage Tolerance: ±10%
Structure: Straight, Through Flow Path
Applications: Water, Air, Oil, Gas, etc
Product Name: Modulating Electric Ball Control Valve
Size Range: DN15-DN200, 1/2 Inch - 8 Inch
Pressure Rating: PN10-PN64, CLass 150 LB - 400 LB
Core Material: Stainless Steel, ASTM A216 WCB
Body Material: Stainless Steel
End Connection: Flange
Temperature Of Media: -10°C to 180°C (-14°F to 356°F )
Voltage: DC-12V, 24V, AC-24V, 120V, 240V/60Hz, 110V, 220V/50Hz
Voltage Tolerance: ±10%
Structure: Straight, Through Flow Path
Applications: Water, Air, Oil, Gas, etc
