Cement Silo Butterfly Control Valve, 4-16 Inch, PN10, PN16
Key Specifications / Features
Hits: 0

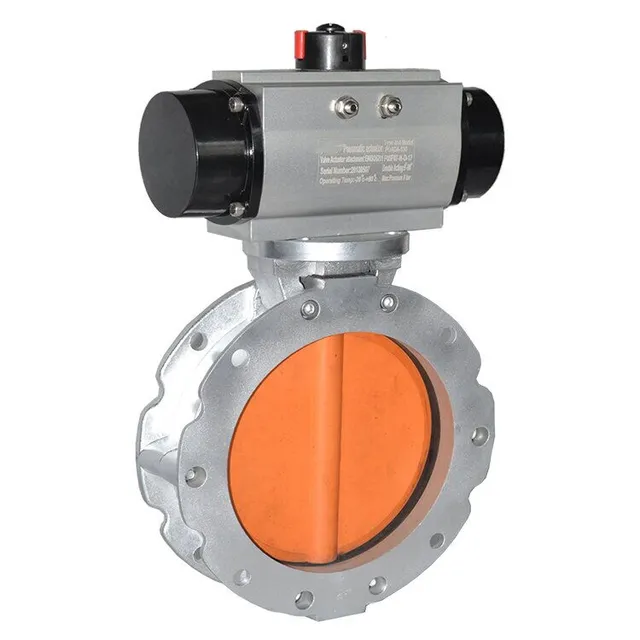

Our cement silo butterfly control valve is designed for optimal performance and durability. Featuring a pneumatic actuator, it ensures efficient and reliable operation. Constructed from robust aluminum alloy, the valve is both lightweight and corrosion-resistant. Available in sizes from 4 to 16 inches (DN100-DN400) and compatible with PN10, PN16, and Class 150 LB pressure ratings, it meets a wide range of industrial requirements. The flanged end design allows for easy installation and secure connections. Choose our butterfly control valve for superior control, long-lasting performance, and ease of maintenance in cement silo applications.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Cement Silo Butterfly Control Valve
Body Material: Aluminum Alloy
Size Range: 4 Inch - 16 Inch, DN100-DN400
Pressure Rating: PN10, PN16, Class 150 LB
Disc: ASTM A351 CF8, Grinding material
Seat: NBR (Nitrile Butadiene Rubber), EPDM (Ethylene Propylene Diene Monomer), VITON (Fluorocarbon Rubber)
End Connection: Flange
Pneumatic Actuator: Double acting,Single acting normally closed, acting,Single normally open
Option: Solenoid valve, Limit switch box , filter, E/P positioner, hand wheel
Applications: Powder, Dust
Product Name: Cement Silo Butterfly Control Valve
Body Material: Aluminum Alloy
Size Range: 4 Inch - 16 Inch, DN100-DN400
Pressure Rating: PN10, PN16, Class 150 LB
Disc: ASTM A351 CF8, Grinding material
Seat: NBR (Nitrile Butadiene Rubber), EPDM (Ethylene Propylene Diene Monomer), VITON (Fluorocarbon Rubber)
End Connection: Flange
Pneumatic Actuator: Double acting,Single acting normally closed, acting,Single normally open
Option: Solenoid valve, Limit switch box , filter, E/P positioner, hand wheel
Applications: Powder, Dust
