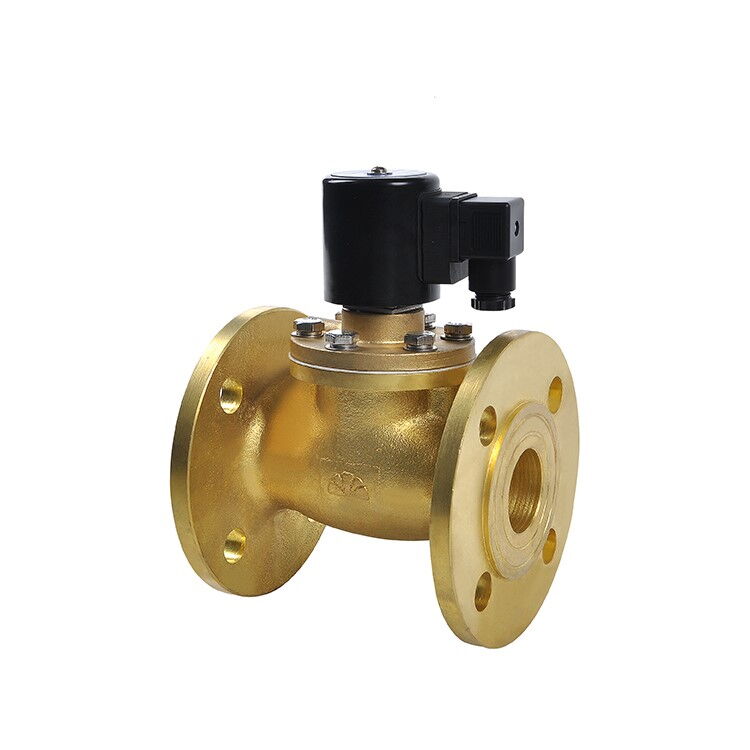

Brass Steam Solenoid Control Valve, DN15-DN50, PN10, 150 LB
Key Specifications / Features
Hits: 0
Our Brass Steam Solenoid Control Valve is a normally closed, wear-resistant valve available in sizes ranging from 1/2 to 2 inches (DN15-DN50). It is rated for PN10 and Class 150 LB, featuring stainless steel components and flange end connections. This valve is ideal for applications such as pumps, spraying, laundry, irrigation, compressors, pollution controls, heating with high or low-pressure steam, air, and water treatment. Its robust design and high-performance features ensure reliability and efficiency in demanding industrial environments.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Brass Steam Solenoid Control Valve
Function: Normally Closed or Opened
Size Range: 1/2 Inch - 2 Inch, DN15-DN50
Pressure Rating: PN10, Class 150 LB
Body Material: Brass, Stainless steel
Sealing Material: PTFE, VITON
Temperature of Media: -10°C to 180°C, -10°C to 220°C
Suitable Media: Stem, Hot Water, Civil Gas, Air Oil.
Voltage: DC-12V, 24V, 36V, AC-24V, 120V, 240V/60Hz, 110V, 220V/50Hz
Benefits:
1. Heat Resistance: Uses special heat-resistant electrical and sealing materials with various heat insulation measures.
2. Wear Resistance: Crafted from high-quality materials, utilizing fluid lubrication to minimize wear between the valve cup and guide sleeve.
3. Corrosion Resistance: Main components, including the valve plug and body, are made of stainless steel, ensuring excellent corrosion resistance and extended lifespan.
4. Condensation Resistant: Designed to operate unaffected by condensation water in steam pipelines.
Product Name: Brass Steam Solenoid Control Valve
Function: Normally Closed or Opened
Size Range: 1/2 Inch - 2 Inch, DN15-DN50
Pressure Rating: PN10, Class 150 LB
Body Material: Brass, Stainless steel
Sealing Material: PTFE, VITON
Temperature of Media: -10°C to 180°C, -10°C to 220°C
Suitable Media: Stem, Hot Water, Civil Gas, Air Oil.
Voltage: DC-12V, 24V, 36V, AC-24V, 120V, 240V/60Hz, 110V, 220V/50Hz
Benefits:
1. Heat Resistance: Uses special heat-resistant electrical and sealing materials with various heat insulation measures.
2. Wear Resistance: Crafted from high-quality materials, utilizing fluid lubrication to minimize wear between the valve cup and guide sleeve.
3. Corrosion Resistance: Main components, including the valve plug and body, are made of stainless steel, ensuring excellent corrosion resistance and extended lifespan.
4. Condensation Resistant: Designed to operate unaffected by condensation water in steam pipelines.
