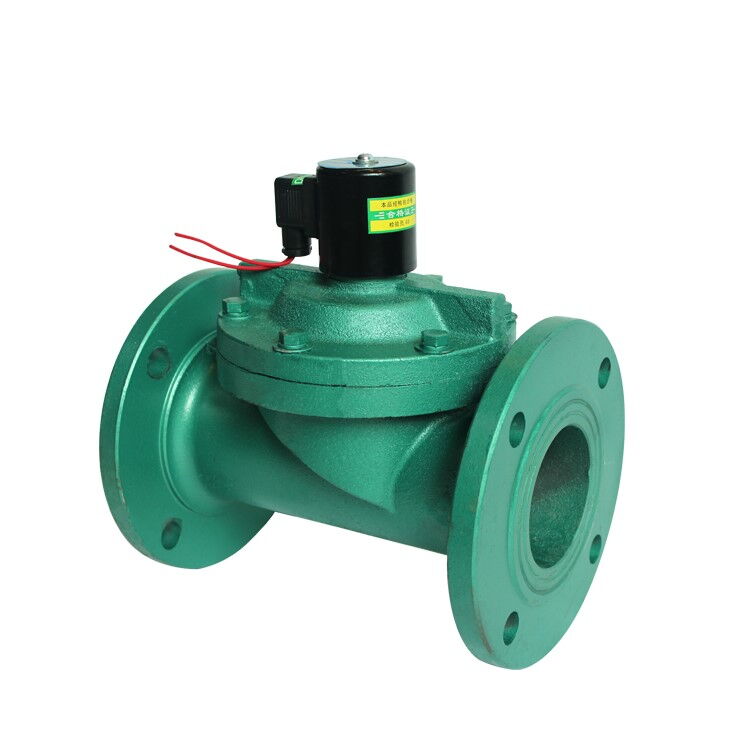

Cast Iron Diaphragm Solenoid Control Valve, 1 1/2-6 IN, CL150
Key Specifications / Features
hits: 1
Our Diaphragm Solenoid Control Valve is a normally closed valve available in cast iron or forged steel, with sizes ranging from 1-1/2 to 6 inches (DN40-DN150). It is rated for PN10 and Class 150 LB with flange end connections. This valve features a direct pull diaphragm design that uses electromagnetic suction to lift the diaphragm, enabling it to open and close under low or no pressure conditions. This valve is ideal for industries requiring dependable solenoid control under varying pressure conditions.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Cast Iron Diaphragm Solenoid Control Valve
Function: Normally Closed or Opened
Size Range: 1-1/2 - 6 Inch, DN40-DN150
Pressure Rating: PN10, Class 150 LB
Body Material: Cast Iron, Stainless Steel
Sealing Material: PTFE, VITON
Tolerance:±10%
Port Connection: BSPP, BSPT, NPT, Flange
Voltage: DC-12V, 24V, 36V, AC-24V, 120V, 240V/60Hz, 110V, 220V/50Hz
Suitable Media: Stem, Hot Water, Civil Gas, Air Oil.
Temperature of Media: -10°C to 180°C, -10°C to 220°C
Benefits:
1. Versatile Pressure Handling: Operates efficiently in low or no pressure scenarios.
2. Durable Construction: Made from high-quality cast iron or forged steel for long-lasting performance.
3. Wide Range of Applications: Suitable for pipelines, water treatment, natural gas, electric power, chemical and petrochemical industries, oil, paper making, mining, food, municipal administration, mechanical equipment, electronic industry, and urban construction.
4. Reliable Performance: Ensures consistent operation and control across various industrial applications.
5. Easy Installation: Flange end connections facilitate straightforward setup and integration into existing systems.
Product Name: Cast Iron Diaphragm Solenoid Control Valve
Function: Normally Closed or Opened
Size Range: 1-1/2 - 6 Inch, DN40-DN150
Pressure Rating: PN10, Class 150 LB
Body Material: Cast Iron, Stainless Steel
Sealing Material: PTFE, VITON
Tolerance:±10%
Port Connection: BSPP, BSPT, NPT, Flange
Voltage: DC-12V, 24V, 36V, AC-24V, 120V, 240V/60Hz, 110V, 220V/50Hz
Suitable Media: Stem, Hot Water, Civil Gas, Air Oil.
Temperature of Media: -10°C to 180°C, -10°C to 220°C
Benefits:
1. Versatile Pressure Handling: Operates efficiently in low or no pressure scenarios.
2. Durable Construction: Made from high-quality cast iron or forged steel for long-lasting performance.
3. Wide Range of Applications: Suitable for pipelines, water treatment, natural gas, electric power, chemical and petrochemical industries, oil, paper making, mining, food, municipal administration, mechanical equipment, electronic industry, and urban construction.
4. Reliable Performance: Ensures consistent operation and control across various industrial applications.
5. Easy Installation: Flange end connections facilitate straightforward setup and integration into existing systems.

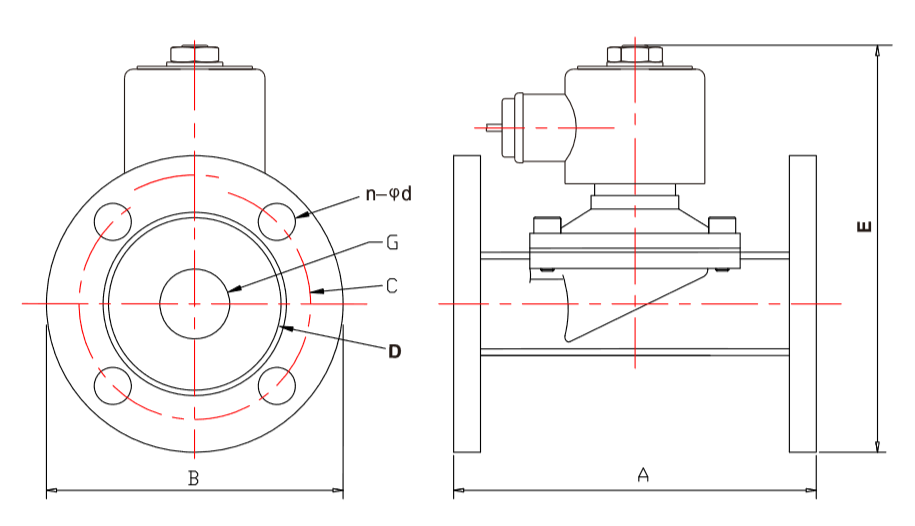

Drawing for Diaphragm Solenoid Control Valve
