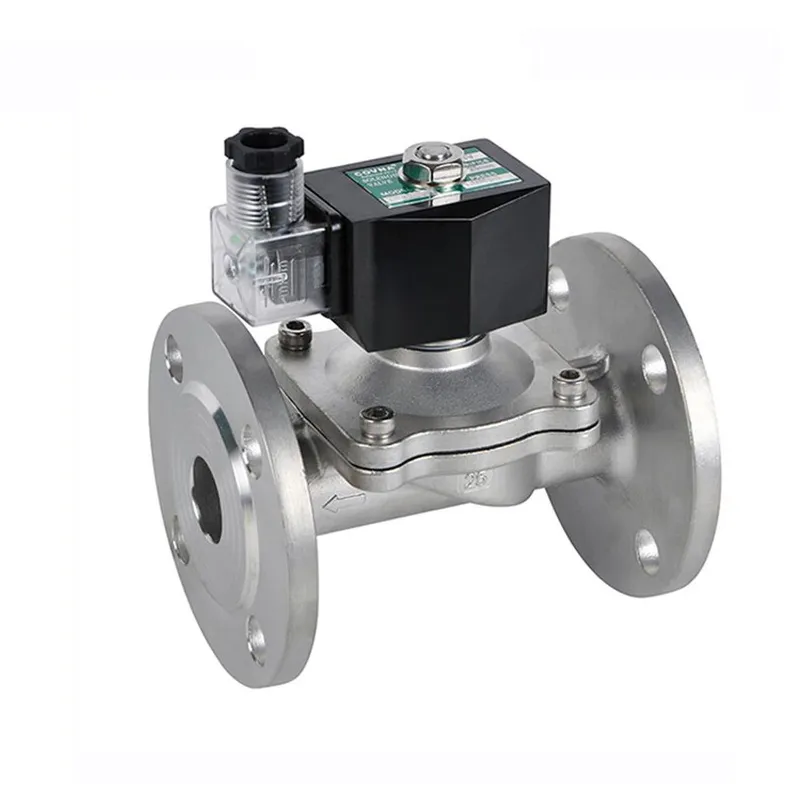

Diaphragm Solenoid Control Valve, 1/2-4 Inch, PN10, 150 LB
Key Specifications / Features
Hits: 1
Introducing our Diaphragm Solenoid Control Valve, designed for precision and durability. Crafted from high-quality stainless steel, this valve is available in sizes ranging from 1/2 to 4 inches (DN15-DN100) and supports PN10 and Class 150 LB flange ends. Ideal for low or no pressure conditions, it utilizes electromagnetic suction to lift the diaphragm for seamless operation. Applications span across pipelines, water treatment, natural gas, electric power, chemical and petrochemical industries, oil, paper production, mining, food processing, municipal administration, mechanical equipment, electronics, and urban construction.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Diaphragm Solenoid Control Valves
Function: Normally Closed or Opened
Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure Rating: PN10, Class 150 LB
Body Material: Stainless Steel
Port Connection: BSPP, BSPT, NPT, Flange
Temperature of Media:
NBR Seal: 0°C to 80°C
EPDM Seal: 5°C to 190°C
Suitable Media: Stem, Hot Water, Civil Gas, Air Oil.
Sealing Material: EPDM, VITON,NBR, PTFE
Voltage: DC-12V, 24V, 36V, AC-24V, 120V, 240V/60Hz, 110V, 220V/50Hz
Key Features:
1. Diaphragm Structure: Ensures low medium cleanliness requirements and a 10% higher flow coefficient compared to standard valves.
2. Special Seal Structure: Incorporates imported synthetic rubber seals, offering exceptional performance with no leakage, low noise, and resistance to water hammer and bucket sounds.
3. Longevity: Synthetic rubber seals have a lifespan five times longer than similar products, validated by 20 years of market use.
Product Name: Diaphragm Solenoid Control Valves
Function: Normally Closed or Opened
Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure Rating: PN10, Class 150 LB
Body Material: Stainless Steel
Port Connection: BSPP, BSPT, NPT, Flange
Temperature of Media:
NBR Seal: 0°C to 80°C
EPDM Seal: 5°C to 190°C
Suitable Media: Stem, Hot Water, Civil Gas, Air Oil.
Sealing Material: EPDM, VITON,NBR, PTFE
Voltage: DC-12V, 24V, 36V, AC-24V, 120V, 240V/60Hz, 110V, 220V/50Hz
Key Features:
1. Diaphragm Structure: Ensures low medium cleanliness requirements and a 10% higher flow coefficient compared to standard valves.
2. Special Seal Structure: Incorporates imported synthetic rubber seals, offering exceptional performance with no leakage, low noise, and resistance to water hammer and bucket sounds.
3. Longevity: Synthetic rubber seals have a lifespan five times longer than similar products, validated by 20 years of market use.

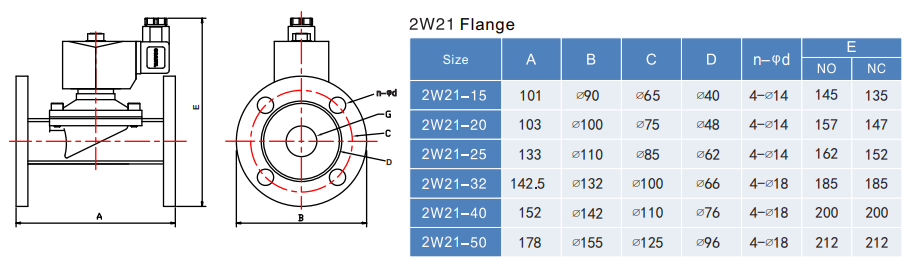

Drawing for Diaphragm Solenoid Control Valve
