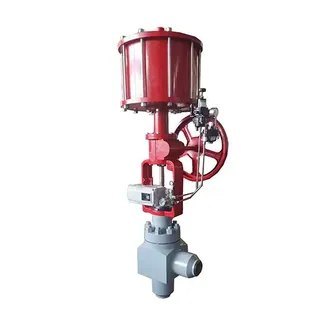

Cage Guided Angle Control Valve, Unbalanced Trim, 3/4-16 Inch
Key Specifications / Features
Model no.: CNCV-240508-ACV-02
Hits: 3
Explore our Cage Guided Angle Control Valve collection, meticulously crafted with unbalanced trim for optimal performance. Available in sizes ranging from 3/4 to 16 inches, with pressure ratings spanning from Class 150 to 2500 LB. Choose between pneumatic or electric actuation for seamless integration into your system. Designed with versatile end connections including flanged and butt weld options, ensuring compatibility with various setups.
Request a quote
Tags
Detail Information
Product Name: Cage Guided Angle Control Valve
Key Features: Cage Guided Unbalanced Trim, Multi-hole Cages, Straight-through
Size Range: 3/4 Inch - 16 Inch, DN20-DN400
Pressure Rating: Class 150 LB - 2500 LB, PN20-PN420
Body Material: ASTM A216 WCB, ASTM A217 WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3, CF3M
Seat Leakage: ANSI B16.104 Class V (Standard Metal Seat), ANSI B16.104 Class VI (Shut-off Soft Seat)
Connection: Flange, Butt Weld
Temperature Range: -196β to +570β
Flow Characteristic: Linear, Equal Percentage, Quick Open
Actuator Options:
Pneumatic Diaphragm Actuator
Pneumatic Piston Actuator
Electric Actuator
