Diaphragm Angle Control Valve, ASME B16.34, DN25-DN600

Key Specifications / Features

Hits: 6

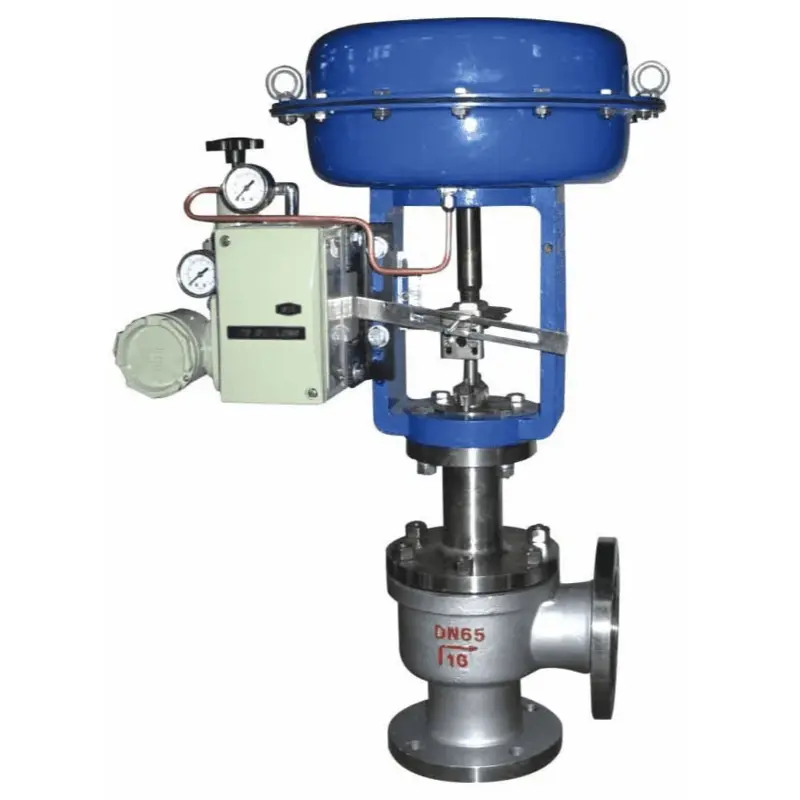

Angle control valves offer versatile trim design options suitable for various applications. They are ideal for installations requiring an angle pattern design due to specific pipework configurations. This series is adaptable for choke valve applications, allowing customization with different trim designs tailored to each specific use alongside the angle body configuration. Both standard and severe service trim designs are available, with the option for trims manufactured in hard metal to withstand potentially erosive environments. These valves adhere to ASME B16.34 standards and are available in sizes ranging from DN25 to DN600 (1 inch to 24 inches) with pressure ratings from Class 150 LB to 2500 LB.
Request a quote

Detail Information

SPECIFICATIONS
Product Name: Diaphragm Angle Control Valve
Design Standard: ASME B16.34
Features: Top or Side Mounted hand wheel, Limit Stops Removable Blind Head, Steam Jacketing etc.
Size Range: DN25-DN600, 1 Inch - 24 Inch
Class Rating: Class 150 LB - 2500 LB, PN16-PN420
Body Material: Carbon steel, Chrome-moly steel, Stainless steel, Monel, Alloy 20, Hastelloy B/C, Duplex stainless steel, Aluminium bronze
Trim Material: Stainless steel, Duplex stainless steel, 13% Chrome steel, Monel Hastelloy B/C, Stellite
Bonnet: Standard up to 400°C Normalising between 250°C to 500°C Extended cold service -20°C to -100°C
Cryogenic: -100°C to -250°C Bellowseal
Gland Packing: PTFE Chevrons, Graphite, Low emission
Flow Characteristic: Equal Percentage, Linear, Quick Opening
Actuator Form: Diaphragm, Piston or Electric
Seat Leakage: As per ANSI / FCI 70-2-2006 Class III, IV, V and VI
