Double Flanged Pneumatic Butterfly Valve, 2-20 IN, 150 LB
Key Specifications / Features
Hits: 2
Introducing our Double Flanged Pneumatic Butterfly Valve, designed for dependable flow control with spring return and double-acting options. Constructed from durable cast iron and available in sizes from 2 to 20 inches, this valve accommodates PN10 and PN16 pressure ratings. Compliant with GB, ANSI, JIS, and DIN standards, it ensures versatility and compatibility with various systems. The double flanged design allows for secure installation and maintenance. Ideal for industrial applications, this valve provides robust performance, reliable sealing, and long-term durability. Choose our valve for efficient and resilient operation in your fluid control systems.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Double Flanged Pneumatic Butterfly Control Valves
Key Features: Spring Return, Double Acting, On/Off, Quarter-turn
Size Range: 2 Inch - 20 Inch, DN50-DN500
Pressure Rating: PN10, PN16, Class 150 LB
Material: Cast Iron, Cast Steel, Ductile Iron, Stainless Steel
Disc Material: SS 304, SS 316, SS 316L, 1.4529, 2507
Sealing Material: NBR, EPDM, PTFE, etc.
End Connection: Flange
Media: Water, Oil, Air, Gas, etc.
Working Temperature: -30°C to 180°C
Structure: Midline Structure, A-type
Applicable Standard: GB, ANSI, JIS, DIN
Acting Model: Double Acting, Spring Return
Product Name: Double Flanged Pneumatic Butterfly Control Valves
Key Features: Spring Return, Double Acting, On/Off, Quarter-turn
Size Range: 2 Inch - 20 Inch, DN50-DN500
Pressure Rating: PN10, PN16, Class 150 LB
Material: Cast Iron, Cast Steel, Ductile Iron, Stainless Steel
Disc Material: SS 304, SS 316, SS 316L, 1.4529, 2507
Sealing Material: NBR, EPDM, PTFE, etc.
End Connection: Flange
Media: Water, Oil, Air, Gas, etc.
Working Temperature: -30°C to 180°C
Structure: Midline Structure, A-type
Applicable Standard: GB, ANSI, JIS, DIN
Acting Model: Double Acting, Spring Return

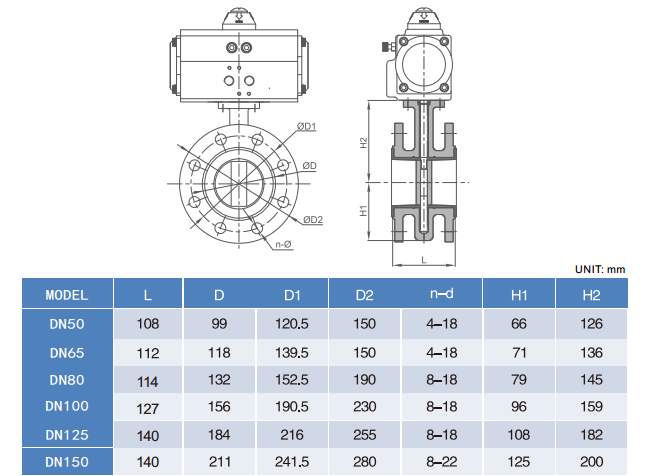

Drawing of Pneumatic Butterfly Valve
