Pneumatic Vacuum Butterfly Control Valve, 2-24 IN, SS 316

Key Specifications / Features
Hits: 4
Discover our Pneumatic Vacuum Butterfly Control Valve Factory, where innovation meets precision engineering. Crafted with double-acting and spring return mechanisms, our valve ensures smooth operation. Constructed from premium stainless steel, it guarantees longevity and corrosion resistance. Available in sizes from DN50 to DN400 (2 to 24 inches), it caters to various industrial needs. With pressure ratings from PN4 to PN7 and compliance with ANSI, JIS, and DIN standards, it offers versatility and ease of integration. Experience straight flow characteristics and precise regulation, thanks to the pinless structure connecting the butterfly plate and valve stem, eliminating internal leakage points. Enjoy uninterrupted operations with replaceable seals ensuring reliable two-way sealing.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Vacuum Pneumatic Butterfly Control Valve
Size Range: DN50-DN400, 2 Inch - 24 Inch
Pressure Range: PN4-PN7
Material: SS 316, SS 304
Rotation: 90° Rotatry
Actuator Type: Spring Return(Single Acting) and Double Acting
Suitable Medium: Water, Oil, Air, Gas, etc
Applicable Standard: GB, ANSI, JIS, DIN
Working temperature: -30°C to 80°C
Medium temperature: -30°C to 150°C
Product Name: Vacuum Pneumatic Butterfly Control Valve
Size Range: DN50-DN400, 2 Inch - 24 Inch
Pressure Range: PN4-PN7
Material: SS 316, SS 304
Rotation: 90° Rotatry
Actuator Type: Spring Return(Single Acting) and Double Acting
Suitable Medium: Water, Oil, Air, Gas, etc
Applicable Standard: GB, ANSI, JIS, DIN
Working temperature: -30°C to 80°C
Medium temperature: -30°C to 150°C

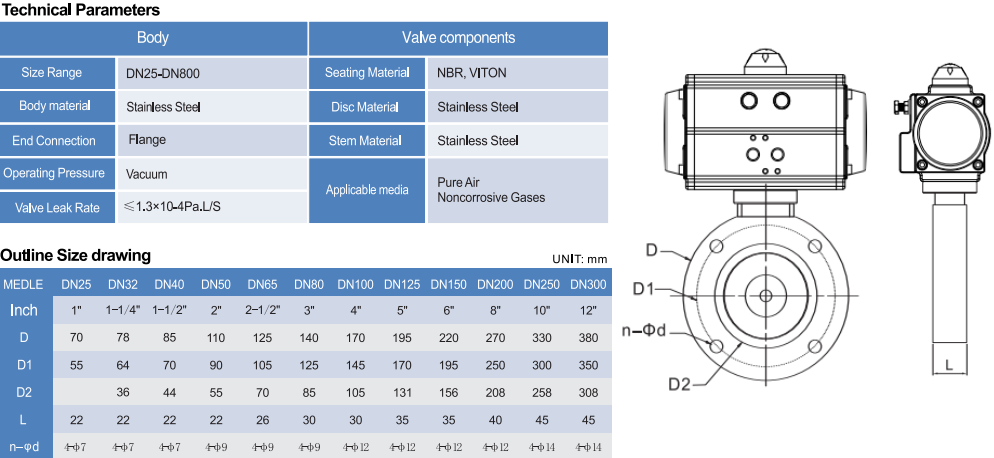

Dimension of Pneumatic Butterfly Control Valve
