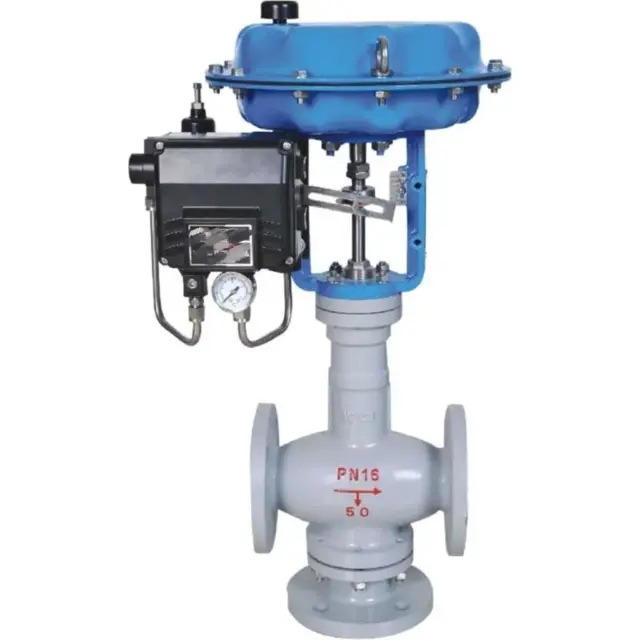

Double Seated Three-way Control Valve, PN16-PN100, 3/4-12 IN
Key Specifications / Features
Hits: 0
The Three Way Control Valve is designed for mixing or diverting services in industrial applications. It efficiently diverts one fluid flow into two or mixes two flows into one.
Key features include a plug structure designed to flow to open. As a mixing valve, it has two input ports and one outlet. As a diverting valve, it has one inlet and two outlets. The dual-seated design provides dynamic stability for excellent throttling control.
Operating within a wide temperature range, it uses high-performance materials and designs. This versatile valve reduces product costs and installation space in fluid proportion control systems. It supports both air-open and air-close configurations, making it ideal for various applications.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Double Seated Control Valve
Key Features: Mixing, Diverting, Three-way, Dual-seated
Body Material: Stainless Steel, Alloy Steel, Duplex Stainless Steel, Carbon Steel
Size Range: DN20-DN300, 3/4 Inch - 12 Inch
Pressure Rating: PN16-PN100, Class 150 LB - 600 LB
End Connection: Flange, Thread, Welding
Product Name: Double Seated Control Valve
Key Features: Mixing, Diverting, Three-way, Dual-seated
Body Material: Stainless Steel, Alloy Steel, Duplex Stainless Steel, Carbon Steel
Size Range: DN20-DN300, 3/4 Inch - 12 Inch
Pressure Rating: PN16-PN100, Class 150 LB - 600 LB
End Connection: Flange, Thread, Welding
