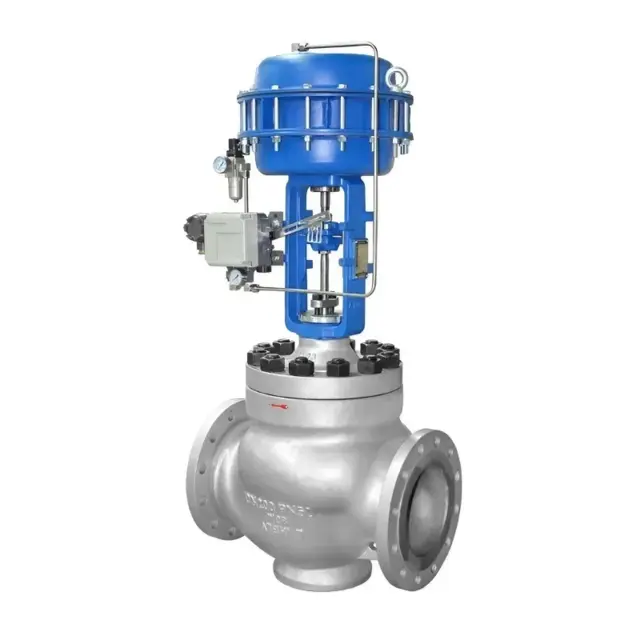

Pilot Cage Guided Control Valve, 2-1/2-16 Inch, 150-600 LB
Key Specifications / Features
Hits: 4
The Pilot Cage Guided Control Valve is engineered for high-temperature industrial applications, offering effective performance in high-pressure environments where even minor leaks can cause significant erosion.
Key features include a unique pressure difference structure between the inlet and outlet, enhancing sealing performance while reducing actuator size for cost-effectiveness.
Designed for fluid flow from up to down, it features a separate pressure-balanced pilot plug compared to regular cage control valves, ensuring prolonged service life.
With precise control over small flow ranges, it guarantees effective valve closure and pressure balance.
In summary, the Pilot Cage Guided Control Valve is a reliable and efficient solution for high-temperature, high-pressure applications, boasting a robust design and precise flow control capabilities.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Pilot Cage Guided Control Valve
Key Features: High-temperature, Pressure-balanced, Cage Guided
Size Range: DN65-DN400, 2-1/2 Inch - 16 Inch
Pressure Rating: PN16-PN100, Class 150 LB - 600 LB
Body Material: Stainless Steel, Duplex Stainless Steel, Alloy Steel, Carbon Steel
End Connection: Flange, Thread, Welding
Working Temperature: -196°C to 560°C
Product Name: Pilot Cage Guided Control Valve
Key Features: High-temperature, Pressure-balanced, Cage Guided
Size Range: DN65-DN400, 2-1/2 Inch - 16 Inch
Pressure Rating: PN16-PN100, Class 150 LB - 600 LB
Body Material: Stainless Steel, Duplex Stainless Steel, Alloy Steel, Carbon Steel
End Connection: Flange, Thread, Welding
Working Temperature: -196°C to 560°C
