Double Union Electric Ball Control Valve, PVDF, 1/2-4 IN
Key Specifications / Features
hits: 0
Introducing our Double Union Electric Ball Control Valve, equipped with a motorized actuator for precise on/off control. Made from durable PVDF, it comes in sizes ranging from 1/2 to 4 inches (DN15-DN100) and pressure ratings of PN10 and Class 150 LB. The true union end design ensures easy installation and maintenance. Ideal for various industrial applications, this valve offers superior chemical resistance, reliability, and longevity. Enhance your system's efficiency with our top-quality electric ball control valve.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Double Union Electric Ball Control Valve
Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure Rating: PN10, Class 150 LB
Body Material: PVDF
Actuator Type: ON OFF Type, Modulating Type, Intelligent Type
Temperature Of Media: -10°C to 180°C (-22°F to 356°F)
Structure: Floating Ball Valve
Voltage: DC-12V, 24V, AC-24V, 110V, 220V, 380V
Voltage Tolerance: ±10%
Suitable Media: Acid, Water, Air, Oil, Gas, etc
End Connection: True Union
Product Name: Double Union Electric Ball Control Valve
Size Range: 1/2 Inch - 4 Inch, DN15-DN100
Pressure Rating: PN10, Class 150 LB
Body Material: PVDF
Actuator Type: ON OFF Type, Modulating Type, Intelligent Type
Temperature Of Media: -10°C to 180°C (-22°F to 356°F)
Structure: Floating Ball Valve
Voltage: DC-12V, 24V, AC-24V, 110V, 220V, 380V
Voltage Tolerance: ±10%
Suitable Media: Acid, Water, Air, Oil, Gas, etc
End Connection: True Union

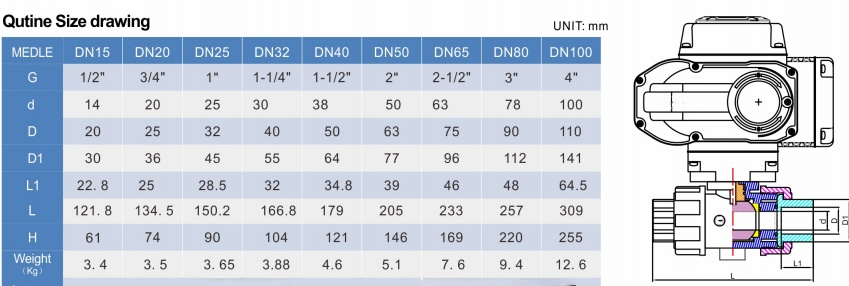

Dimension of Electric Ball Control Valve
