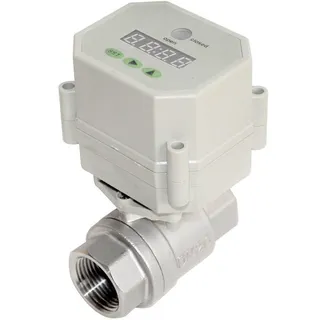

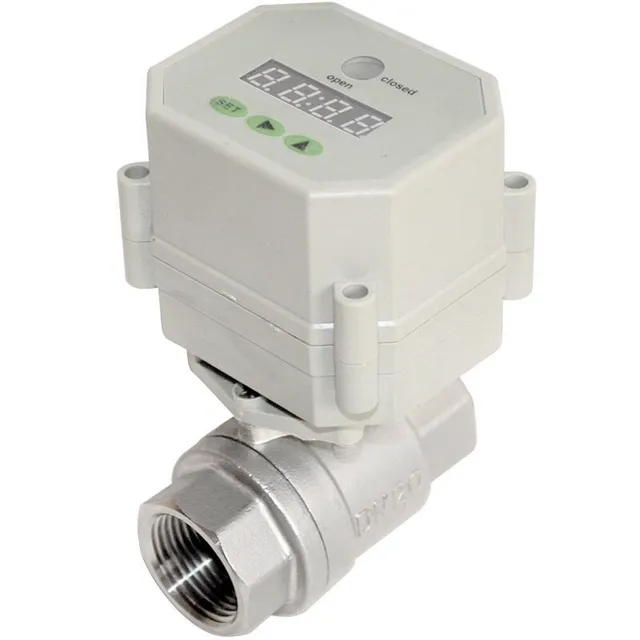

Timer Controlled Electric Motorized Ball Valve, DN20, 150 LB
Key Specifications / Features
Hits: 0
Our Timer Controlled Electric Motorized Ball Valve offers reliable on/off control with zero leakage and excellent sealing performance. Available in sizes 1/2 to 1 inch (DN15-DN25) with PN10 and 150 LB pressure ratings, this 2-way valve is made from durable stainless steel with BSP thread ends. User-friendly ON/OFF timer control and OEM branding options are available. This valve is ideal for air conditioning systems, fire fighting systems, water treatment, pipeline purging, analytical instruments, and flue gas sampling. It ensures precise flow control, durability, and ease of use across various industrial applications.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Timer Controlled Electric Motorized Ball Control Valve
Size Range: 1/2 Inch - 1 Inch, DN15-DN25
Pressure Rating: PN10, Class 150 LB
Body Material: Brass, SS 304, SS 316(optional)
Valve Ball: PVC, UPVC, Brass, Stainless Steel(Optional)
Sealing Material: SEPDM
Actuator Material: Engineering Plastics
Keeping Valve Open Time: 0H:0M: OS-99H:59M:59S
Temperature Of Media: 2°C to 9°C
Ambient Temperature: -15°C to 50°C
End Connection: BSP Thread
Medium: Water, Air
Leakage: Zero leakage, Return difference: ±2.5%
Product Name: Timer Controlled Electric Motorized Ball Control Valve
Size Range: 1/2 Inch - 1 Inch, DN15-DN25
Pressure Rating: PN10, Class 150 LB
Body Material: Brass, SS 304, SS 316(optional)
Valve Ball: PVC, UPVC, Brass, Stainless Steel(Optional)
Sealing Material: SEPDM
Actuator Material: Engineering Plastics
Keeping Valve Open Time: 0H:0M: OS-99H:59M:59S
Temperature Of Media: 2°C to 9°C
Ambient Temperature: -15°C to 50°C
End Connection: BSP Thread
Medium: Water, Air
Leakage: Zero leakage, Return difference: ±2.5%
