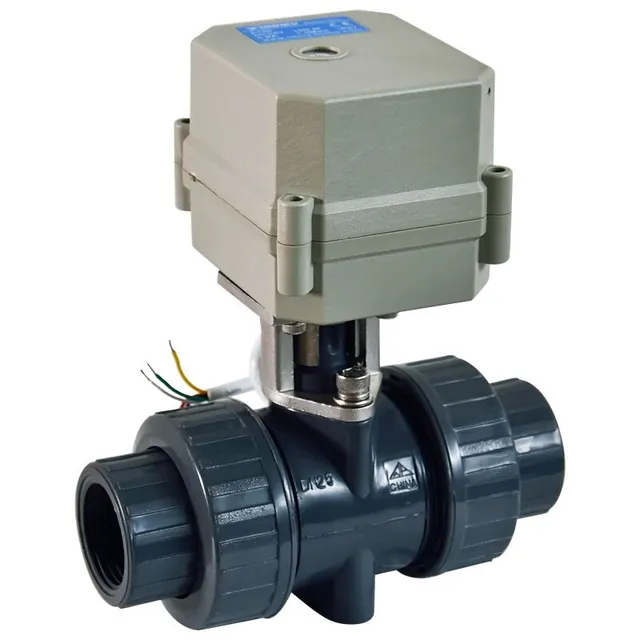

Motorized Ball Control Valve, UPVC, SS, Brass, DN15-DN50, PN10
Key Specifications / Features
Hits: 0
Our Motorized Ball Control Valve features an electrically actuated 2-way design, available in sizes from 1/2 to 2 inches (DN15-DN50). Made with durable UPVC and brass, it operates at PN10 and Class 150 LB pressure ratings. The BSP thread end ensures easy installation. This valve provides precise flow control, enhanced durability, and resistance to corrosion. Ideal for industrial applications, it offers reliable performance, easy maintenance, and improved system efficiency.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Motorized Ball Control Valve
Size Range: 1/2 Inch - 2 Inch, DN15-DN50
Pressure Rating: PN10, Class 150 LB
Material: UPVC, Stainless Steel or Brass
Valve Ball: UPVC
Sealing Material: PTFE
Leakage: Zero leakage, Return difference: ±2.5%
Voltage: AC110V-230V, DC9-24V
End Connection: BSP Thread
Medium: Fluid, Water, Air
Temperature Of Media: 2°C to 9°C
Ambient Temperature: -15°C to 50°C
Product Name: Motorized Ball Control Valve
Size Range: 1/2 Inch - 2 Inch, DN15-DN50
Pressure Rating: PN10, Class 150 LB
Material: UPVC, Stainless Steel or Brass
Valve Ball: UPVC
Sealing Material: PTFE
Leakage: Zero leakage, Return difference: ±2.5%
Voltage: AC110V-230V, DC9-24V
End Connection: BSP Thread
Medium: Fluid, Water, Air
Temperature Of Media: 2°C to 9°C
Ambient Temperature: -15°C to 50°C

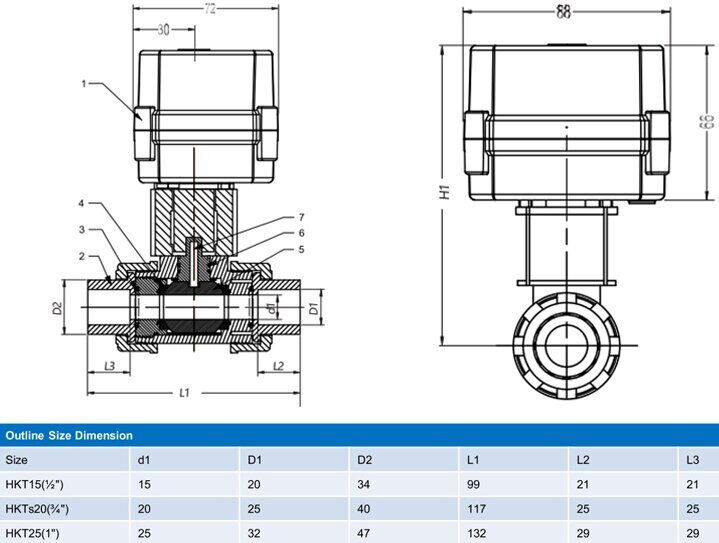

Drawing of Motorized Ball Control Valve
