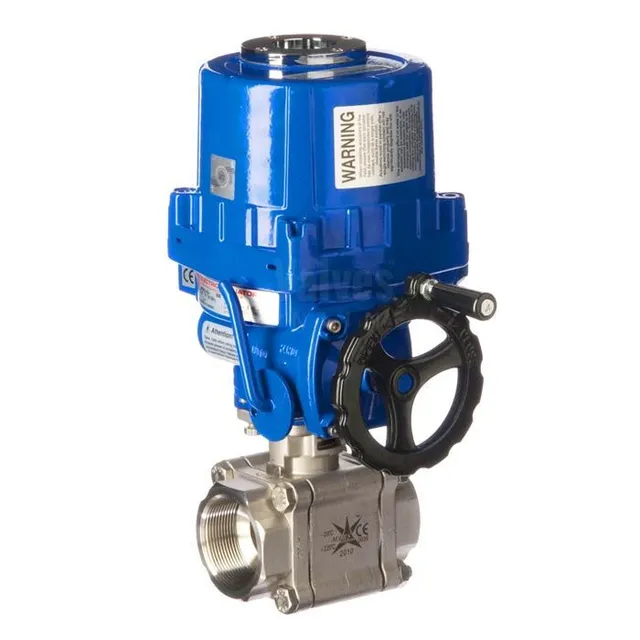

Electric V Sector Ball Control Valve, 3PC, BSP, DN15-DN80

Key Specifications / Features

Our Electric V Sector Ball Control Valve is designed for precise and secure management of flowing media, ensuring reliable control over flow rates, levels, temperatures, and pressures in industrial, chemical, and food/beverage manufacturing sectors. It features a high-performance modulating ball valve, a durable electric actuator, and a proportional control unit. At its core is a heavy-duty, fully encapsulated 3-piece stainless steel ball valve with 50% stainless steel / 50% PTFE filled seats, ensuring robust performance and longevity. It accepts 4-20mA or 0-10 volt input signals for seamless integration into control systems and is available in stock with a choice of 30°, 60°, or 90° V-notch balls to meet diverse operational needs.

Request a quote

Detail Information

Technical Attributes

Product Name: Electric V Sector Ball Control Valve
Key Features: Electric Actuator, 3 Piece, V Sector Ball, Full Bore.
Body Material: ASTM A351 CF8M
Sizes: 1/2 Inch (DN15), 3/4 Inch (DN20), 1 Inch (DN25), 1 1/4 Inch (DN32), 1 1/2 Inch (DN40), 2 Inch (DN50), 2 1/2 Inch (DN65), 3 Inch (DN80)

Seat Material: 50% Stainless Steel / 50% PTFE Filled
Temperature Range: Up to 200°C
Ambient Temperature: -20°C to +60°C
Media: Liquid, Steam / Gas
Control Technology: V Sector
Travel Angle: 90°
Enclosure: Weatherproof IP67
Control: 4-20mA or 0-10 Volt Input Signal.
End Connections: BSP, NPT, Socket Weld, Butt Weld

Features

1. Operates on either 110V AC or 230V AC
2. BSP screwed connections, available in sizes from 1/2 to 3 Inch
3. Handles temperatures up to 200°C
4. Equipped with high-temperature seats as standard
5. Designed for high flow rates
6. No need for additional solenoids
