Electric Butterfly Control Valve, PTFE Seated, DN50-DN600
Key Specifications / Features
Hits: 3

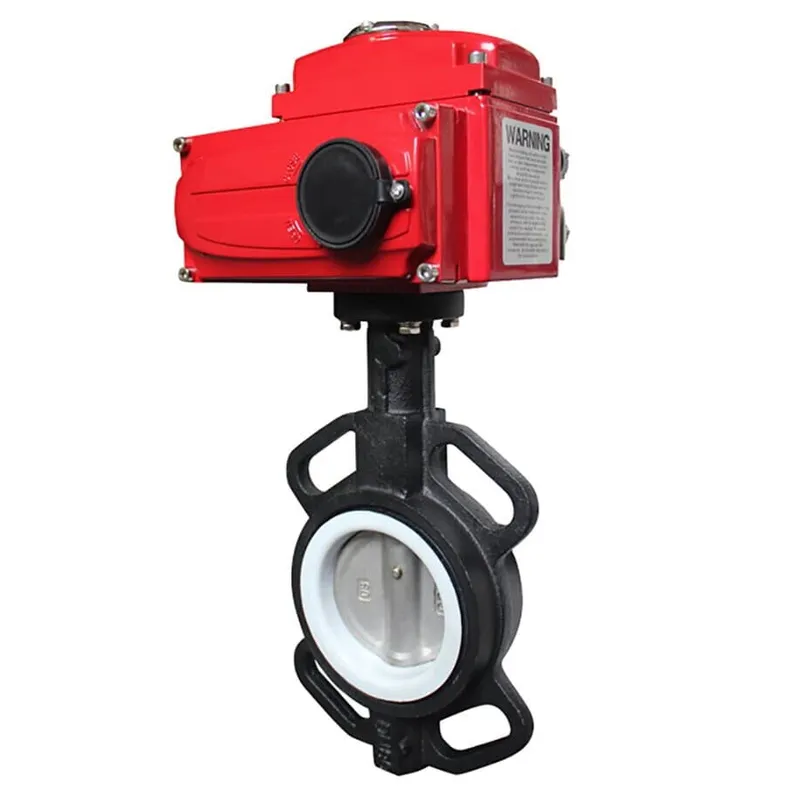

Our Electric Butterfly Control Valve is the epitome of reliability and efficiency. Featuring motorized operation for precise On/Off control, it's crafted from sturdy Carbon Steel and Stainless Steel materials, ensuring longevity and corrosion resistance. With sizes ranging from DN50-DN600 (2-24 inches) and pressure ratings of PN10, PN16, and 150 LB, it caters to diverse industrial needs seamlessly. Its wafer end design simplifies installation, while its soft-seated construction guarantees bubble-tight sealing with zero leakage under pressure. Easily automated and retrofitable, it offers versatility and adaptability. With a wide selection of materials, it suits various media types, providing 100% bidirectional shut-off for peace of mind in critical applications.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Electric Butterfly Control Valve
Key Features: Explosion Proof, Lightweight, Corrosion Resistant
Size Range: DN50-DN600, 2 Inch - 24 Inch
Pressure Rating: PN10, PN16, Class 150 LB
Materials: Carbon Steel, Stainless Steel
End Connection: Wafer
Voltage: DC-12V, 24V, AC-24V, 120V, 240V/60Hz, 110V, 220V/50Hz
Voltage Tolerance: ±10%
Structure: Midline structure A type
Medium: Air, water, steam, oil, etc
Temperature Of Media: -30°C to 180°C (-22°F to 356°F )
Product Name: Electric Butterfly Control Valve
Key Features: Explosion Proof, Lightweight, Corrosion Resistant
Size Range: DN50-DN600, 2 Inch - 24 Inch
Pressure Rating: PN10, PN16, Class 150 LB
Materials: Carbon Steel, Stainless Steel
End Connection: Wafer
Voltage: DC-12V, 24V, AC-24V, 120V, 240V/60Hz, 110V, 220V/50Hz
Voltage Tolerance: ±10%
Structure: Midline structure A type
Medium: Air, water, steam, oil, etc
Temperature Of Media: -30°C to 180°C (-22°F to 356°F )
