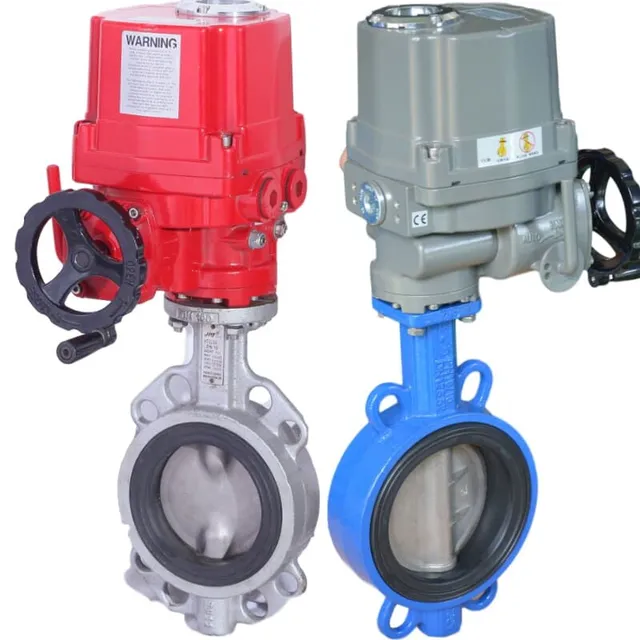

On/Off Butterfly Control Valve, 2-40 Inch, Cast Iron, Wafer

Key Specifications / Features
Hits: 2
As a leading manufacturer of Electric On/Off butterfly control valves, we prioritize safety and efficiency in every product. Our valves feature explosion-proof electric actuators, ensuring reliable operation even in hazardous environments. With a versatile size range from 2 to 40 inches (DN50-DN1000) and compatibility with Class 150 LB, PN10, and PN16 pressure ratings, they suit a wide range of applications. Crafted from durable cast iron, our valves offer longevity and resilience in demanding conditions. Choose our valves with wafer and lug ends for easy installation and seamless integration into your systems, ensuring optimal performance and peace of mind.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: On/Off Butterfly Control Valve
Size Range: 2 Inch - 40 Inch, DN50-DN1000
Pressure Rating: PN10-PN16, Class 150 LB
Body Material: Cast Iron, Ductile Iron, Aluminum Stainless Steel, ASTM A351 CF8, CF8M, CF3M
Disc: Duplex Stainless Steel (UNS S32750), 1.4529 (Alloy 926, UNS N08926), Stainless Steel, ASTM A351 CF8, CF8M, CF3M
Seat: NBR (Nitrile Butadiene Rubber), EPDM (Ethylene Propylene Diene Monomer), VITON (Fluorocarbon Rubber)
End Connection: Wafer, Lug
End:
EN 1092: PN6, PN10, PN16
ASME Class 150 LB
AS 4087 PN10, PN16
JIS 5K, 10K
Medium: Gas, Oil, Water, etc.
Electric Actuator: On/Off, Adjustable Type
Optional:
Explosion-proof actuator: Exd II CT5, Exd II BT5
Control signal: 4-20 mADC, 0-5 VDC, 0-10 VDC
Power: 12 VDC, 24 VAC, 24 VDC, 220 VAC, 120 VAC, 380 VAC 50/60 Hz ±10%


Product Name: On/Off Butterfly Control Valve
Size Range: 2 Inch - 40 Inch, DN50-DN1000
Pressure Rating: PN10-PN16, Class 150 LB
Body Material: Cast Iron, Ductile Iron, Aluminum Stainless Steel, ASTM A351 CF8, CF8M, CF3M
Disc: Duplex Stainless Steel (UNS S32750), 1.4529 (Alloy 926, UNS N08926), Stainless Steel, ASTM A351 CF8, CF8M, CF3M
Seat: NBR (Nitrile Butadiene Rubber), EPDM (Ethylene Propylene Diene Monomer), VITON (Fluorocarbon Rubber)
End Connection: Wafer, Lug
End:
EN 1092: PN6, PN10, PN16
ASME Class 150 LB
AS 4087 PN10, PN16
JIS 5K, 10K
Medium: Gas, Oil, Water, etc.
Electric Actuator: On/Off, Adjustable Type
Optional:
Explosion-proof actuator: Exd II CT5, Exd II BT5
Control signal: 4-20 mADC, 0-5 VDC, 0-10 VDC
Power: 12 VDC, 24 VAC, 24 VDC, 220 VAC, 120 VAC, 380 VAC 50/60 Hz ±10%
