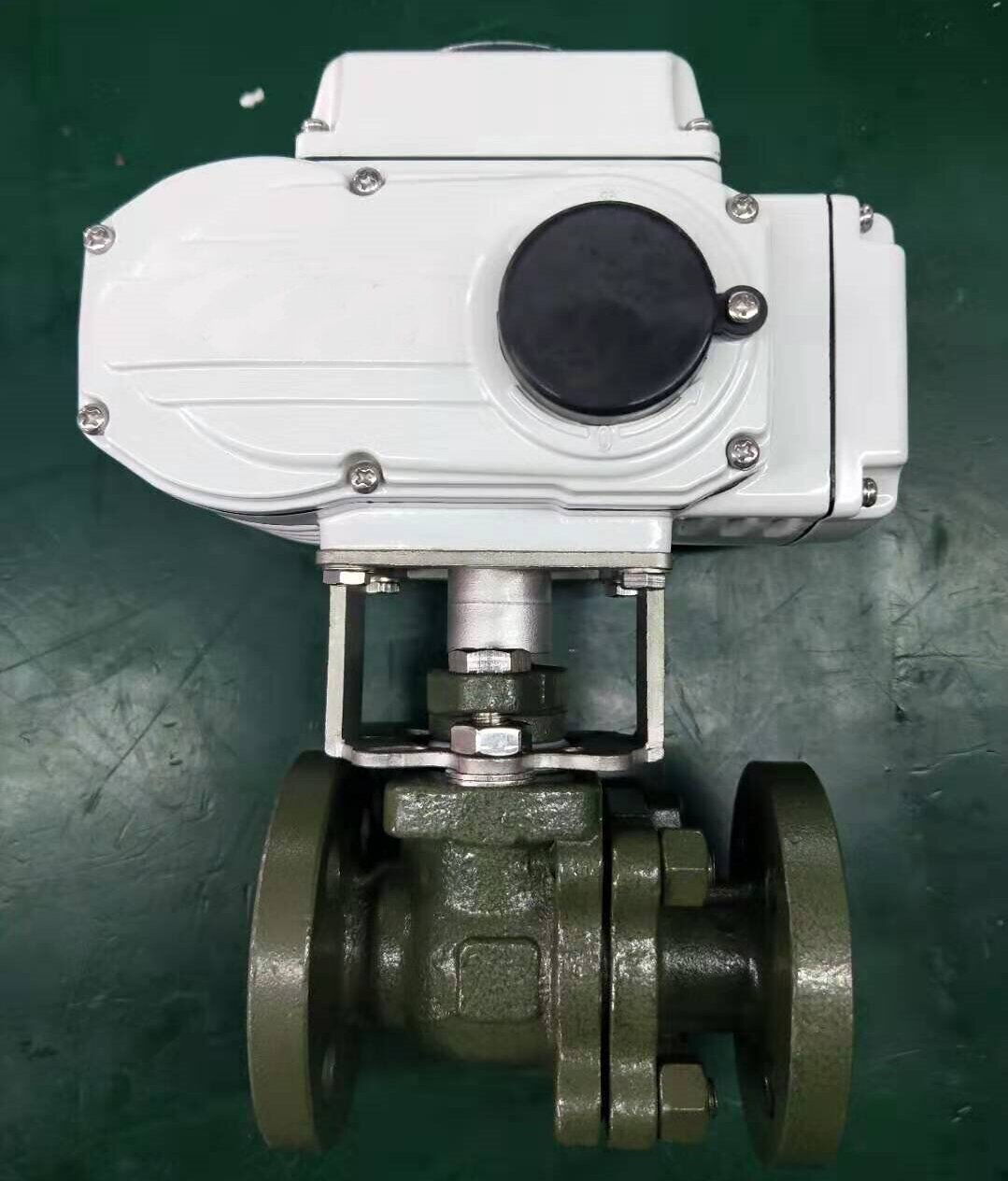

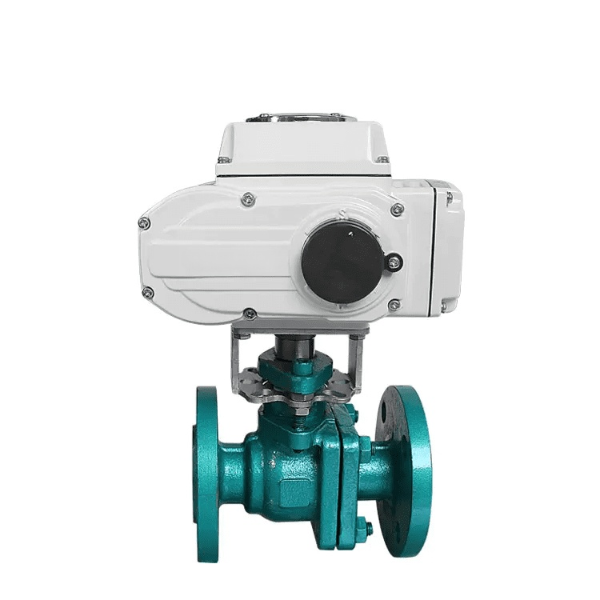

Fluorine Lined Electric Ball Control Valve, DN25, PN16, WCB

Key Specifications / Features

Our Fluorine Lined Electric Ball Control Valve ensures precise control with its straight-through design and on/off functionality. With sizes ranging from DN15 to DN100 (1/2 inch to 4 inches) and a robust pressure rating of PN16 or Class 150 LB, it suits various applications. Crafted from durable materials including ASTM A216 WCB and stainless steel (304, 316, 316L), it withstands harsh conditions. Offering optional voltages and multiple actuator types, it provides flexibility for different operational requirements. With IP65 protection and a wide working temperature range, it guarantees reliable performance in diverse environments. Ideal for industries demanding efficient and dependable flow control solutions.

Request a quote

Detail Information

SPECIFICATIONS
Product Name: Fluorine Lined Electric Ball Control Valves
Key Features: Straight Through, Fluorine Lined, On/Off
Size Range: DN15-DN100, 1/2 Inch - 4 Inch
Pressure Rating: PN16, Class 150 LB
Body Material: ASTM A216 WCB, Stainless Steel 304, 316, 316L
Working Temperature: 14°F to 356°F (-10°C to 180°C )
Medium: Acid, Alkali, etc
Voltage Optional: AC-24V, 110V, 240V, 380V, DC-12V, 24V
Voltage Tolerance: ±10%
Protection Class: IP65
Structure: Straight Through Flow Path
Actuator Type: ON/OFF Type, Modulating Type, Intelligent Type
End Connection: Flange
Suitable Media: Water, Air, Oil, Gas, etc
