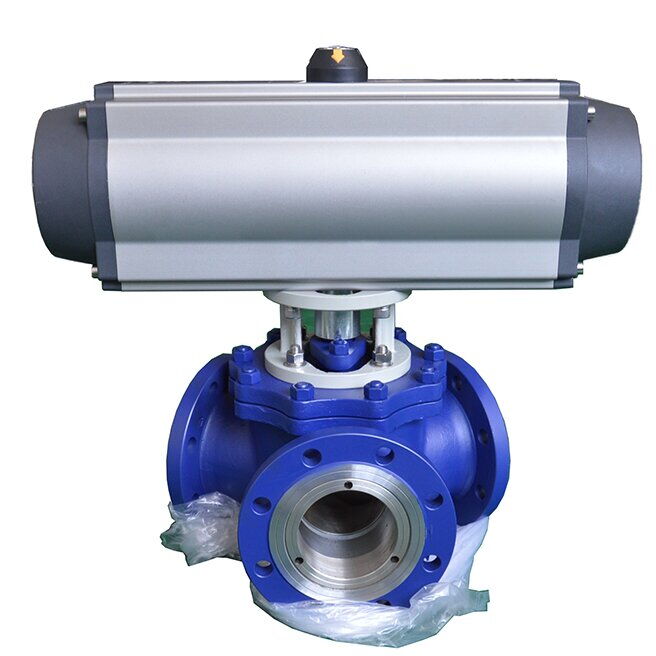

Pneumatic Y Type Ball Control Valve, A216 WCB, DN50-DN300
Key Specifications / Features
Hits: 2
Presenting our Y Type Ball Control Valve, meticulously engineered for precision and versatility. With pneumatic operation and a Y-Port design, it ensures precise control over fluid flow. Constructed from premium materials such as ASTM A216 WCB, SS 304, SS 316, and SS 316L, it offers exceptional durability and corrosion resistance. Available in sizes ranging from 2 to 12 inches (DN50-DN300) and pressure ratings up to PN16, PN40, and Class 150 LB, it suits a wide range of applications. Upgrade to our valve for reliable operation, long-lasting performance, and seamless integration into your system.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Y Type Pneumatic Ball Control Valves
Body Materials: ASTM A216 WCB, SS 304, SS 316, SS 316L
Ball: SS 304 + STL, SS 316 + STL
Size Range: 2 Inch - 12 Inch, DN50-DN300
Pressure: PN16, PN40, Class 150 LB
Seat: PTFE, Metal Hard Seal+STL
Body Type: Y-port 120, 135
Medium: Gas, Water and Oil, etc
Option: Olenoid Valve, Limit Switch Box , Filter, E/P Positioner, Hand Wheel.
Pneumatic Actuator: Double acting, Single Acting Normally Closed, Acting, Single Normally Open.
End:
ASME B16.34 Class 150 LB, ASME B16.34 Class 300 LB
DIN PN16, PN25, PN40
JIS 10K, 20K
Self-Cleaning Design:
1. The runner features a 135-degree switch, ensuring flat flow with minimal resistance and robust circulation.
2. The medium passes through without detention.
3. Achieves zero leakage.
Product Name: Y Type Pneumatic Ball Control Valves
Body Materials: ASTM A216 WCB, SS 304, SS 316, SS 316L
Ball: SS 304 + STL, SS 316 + STL
Size Range: 2 Inch - 12 Inch, DN50-DN300
Pressure: PN16, PN40, Class 150 LB
Seat: PTFE, Metal Hard Seal+STL
Body Type: Y-port 120, 135
Medium: Gas, Water and Oil, etc
Option: Olenoid Valve, Limit Switch Box , Filter, E/P Positioner, Hand Wheel.
Pneumatic Actuator: Double acting, Single Acting Normally Closed, Acting, Single Normally Open.
End:
ASME B16.34 Class 150 LB, ASME B16.34 Class 300 LB
DIN PN16, PN25, PN40
JIS 10K, 20K
Self-Cleaning Design:
1. The runner features a 135-degree switch, ensuring flat flow with minimal resistance and robust circulation.
2. The medium passes through without detention.
3. Achieves zero leakage.

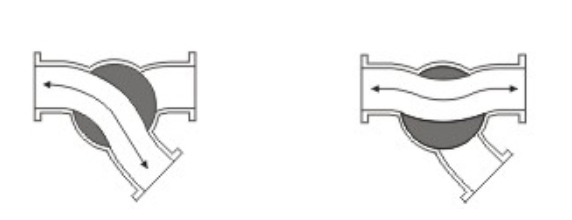

Drawing of Flow Direction
Pneumatic Ball Control Valve
