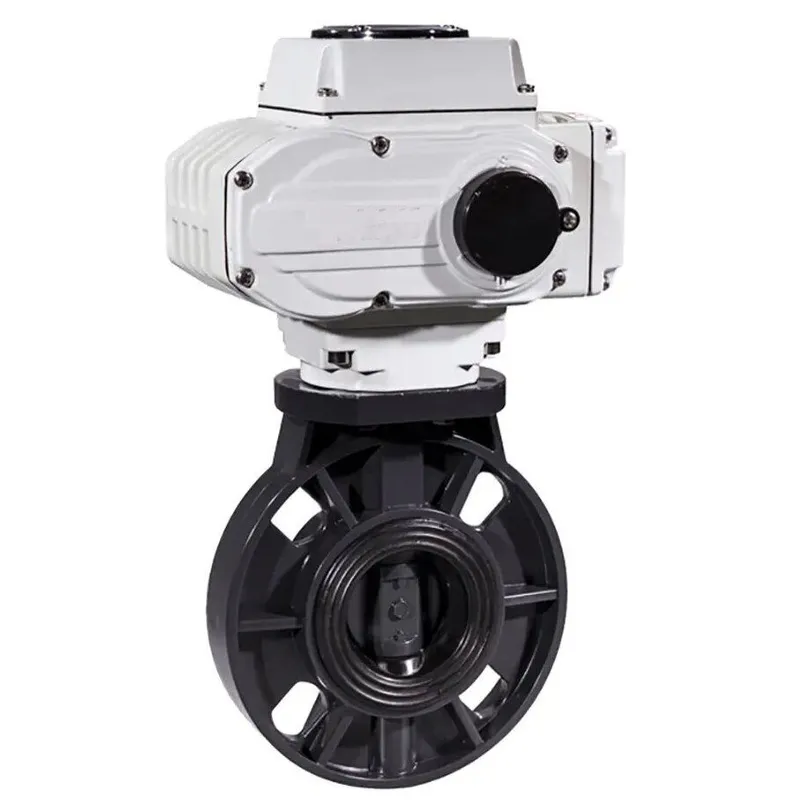

Motorized Butterfly Control Valve, CPVC, 2-20 Inch, 150 LB
Key Specifications / Features
Hits: 4
Presenting our Plastic Motorized Butterfly Valve, offering On/Off functionality with significant benefits. This valve is low weight and cost-effective, making it an ideal choice for budget-conscious projects. Made from anti-corrosive UPVC, it ensures durability and longevity in corrosive environments. Available in sizes from 2 to 20 inches (DN50-DN700) and compatible with PN10 and Class 150 LB pressure ratings, it provides versatility for various applications. The Wafer End design allows for easy installation. Benefit from efficient operation, robust construction, and reliable performance, making it perfect for industries requiring cost-effective and durable fluid management solutions.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Plastic Motorized Butterfly Control Valves
Key Features: On/Off, Low Weight, Low Cost, Anti-Corrosive, UPVC
Size Range: 2 Inch - 20 Inch, DN50-DN700
Pressure Rating: PN10, PN16, Class 150 LB
Body Material: UPVC
Medium: Air, water, oil, etc
End Connection: Wafer
Voltage: DC-12V, 24V, AC-24V, 110V, 220V, 380V
Voltage Tolerance: ±10%
Temperature Of Media: -5°C to 80°C (23°F to 176°F)
Product Name: Plastic Motorized Butterfly Control Valves
Key Features: On/Off, Low Weight, Low Cost, Anti-Corrosive, UPVC
Size Range: 2 Inch - 20 Inch, DN50-DN700
Pressure Rating: PN10, PN16, Class 150 LB
Body Material: UPVC
Medium: Air, water, oil, etc
End Connection: Wafer
Voltage: DC-12V, 24V, AC-24V, 110V, 220V, 380V
Voltage Tolerance: ±10%
Temperature Of Media: -5°C to 80°C (23°F to 176°F)

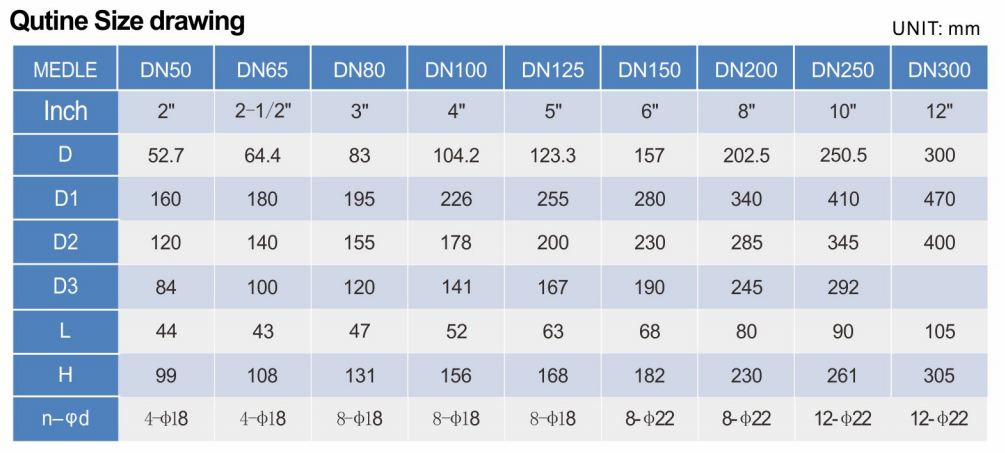

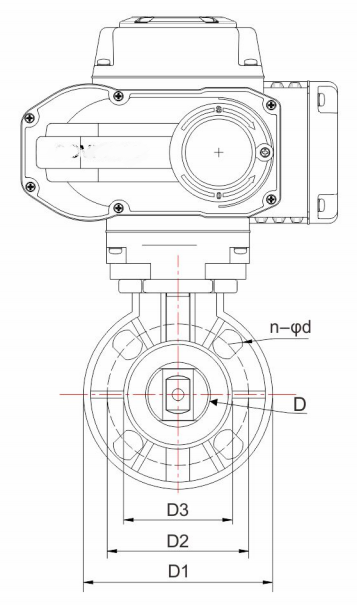

Drawing of Motorized Butterfly Valve
