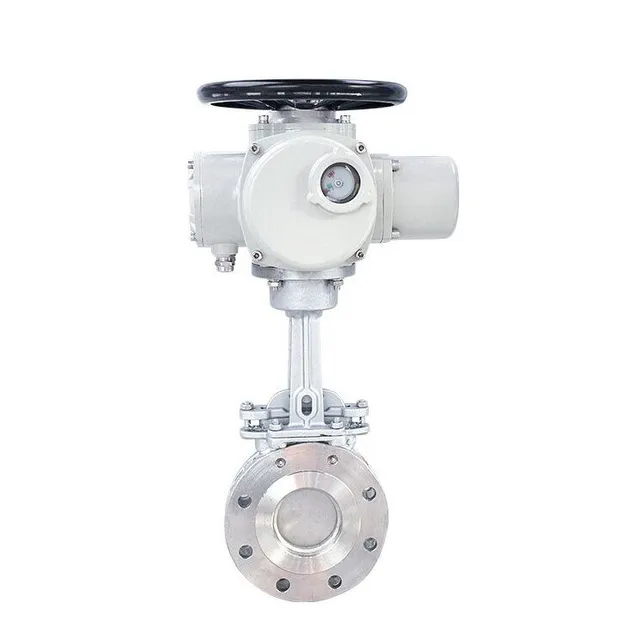

Multi-Turn Electric Knife Gate Valve, 2-16 Inch, 150 LB

Key Specifications / Features

Our Electric Knife Gate Valve, available in sizes DN50-DN400 (2-16 inches), features a multi-turn electric actuator for precise control. Constructed from durable cast iron and stainless steel, this valve is designed to handle pressures up to PN10 and Class 150 LB. The flanged ends ensure secure and easy installation. Ideal for demanding applications, it provides reliable operation in harsh environments, effectively managing the flow of media with high solids content. This valve is perfect for wastewater treatment, mining, and industrial processes, offering robust performance and low maintenance.

Request a quote

Detail Information

SPECIFICATIONS
Product Name: Electric Knife Gate Control Valve
Key Features: Multi Turn, Electric Actuator
Size Range: DN50-DN400, 2 Inch - 16 Inch
Pressure Rating: PN10, Class 150 LB
Body Material: Cast Iron or Stainless Steel
Disc Material: SS 304
Sealing Material: PTFE, NBR, EPDM, VITON
Stem Material: Cast Iron, ASTM A216 WCB
Applicable Media: Water, Air, Gas, Oil, Liquid
Structure: Midline structure/A-Type
Design Standard: ANSI, JIS, DIN, BS, GB
Power Supply:
Conventional: Single Phase 220v, Three-Phase 380v
Special: three-phase 400v, 415v, 660v(50 Hz, 60 Hz)
Working Environment:
Ambient temperature: -20°C to + 60°C (special temperature environment can be customized)
Relative humidity: 95% (at 25 ° C)
