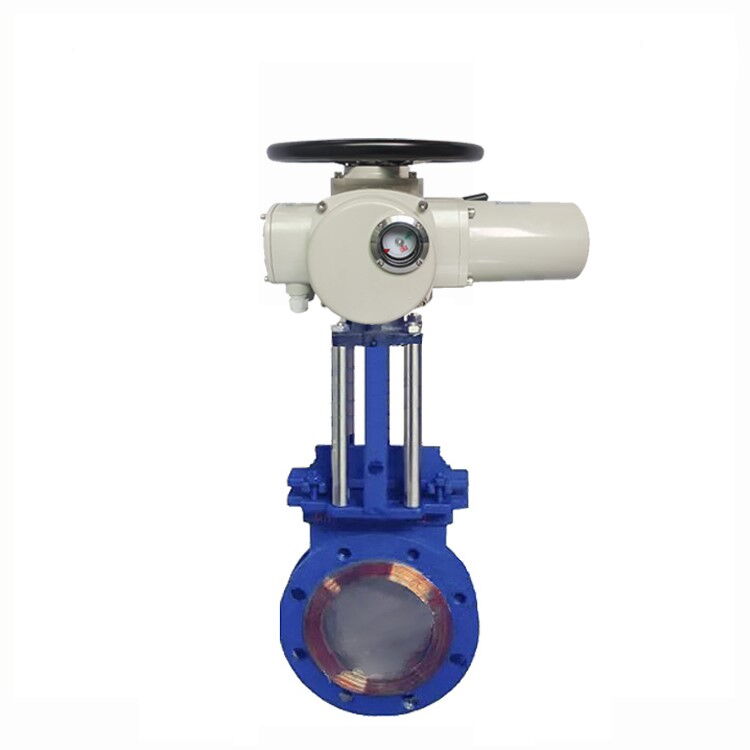

Electric Operated Knife Gate Valve, Cast Iron, 2-16 IN, 150 LB
Key Specifications / Features
Hits: 0
Our Electric Operated Knife Gate Valve, made from durable cast iron, offers explosion-proof safety and reliable performance. Available in sizes DN50-DN400 (2-16 inches) with pressure ratings of PN10-PN25, it meets ANSI, JIS, DIN, BS, and GB standards. The flange end design ensures easy installation and maintenance. Ideal for industrial applications, this valve provides precise control, robust construction, and long-lasting durability. Perfect for use in harsh environments, it enhances operational safety and efficiency.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Electric Operated Knife Gate Control Valve
Size Range: 2 Inch - 16 Inch, DN50-DN400
Pressure Rating: PN10-PN25, Class 150 LB
Body Material: Cast Iron
Sealing Material: PTFE, NBR, EPDM, VITON
Stem Material: Cast Iron
Disc Material: SS 304
End Connection: Flange
Design Standard: ANSI, JIS, DIN, BS, GB
Structure: Midline Structure, A-Type
Power Supply:
Conventional: single-phase 220v, three-phase 380v
Special: three-phase 400v, 415v, 660v(50Hz, 60Hz)
Working Environment:
Ambient temperature: -20°C to + 60 °C (special temperature environment can be customized)
Relative humidity: 95% (at 25 °C)
Product Name: Electric Operated Knife Gate Control Valve
Size Range: 2 Inch - 16 Inch, DN50-DN400
Pressure Rating: PN10-PN25, Class 150 LB
Body Material: Cast Iron
Sealing Material: PTFE, NBR, EPDM, VITON
Stem Material: Cast Iron
Disc Material: SS 304
End Connection: Flange
Design Standard: ANSI, JIS, DIN, BS, GB
Structure: Midline Structure, A-Type
Power Supply:
Conventional: single-phase 220v, three-phase 380v
Special: three-phase 400v, 415v, 660v(50Hz, 60Hz)
Working Environment:
Ambient temperature: -20°C to + 60 °C (special temperature environment can be customized)
Relative humidity: 95% (at 25 °C)
