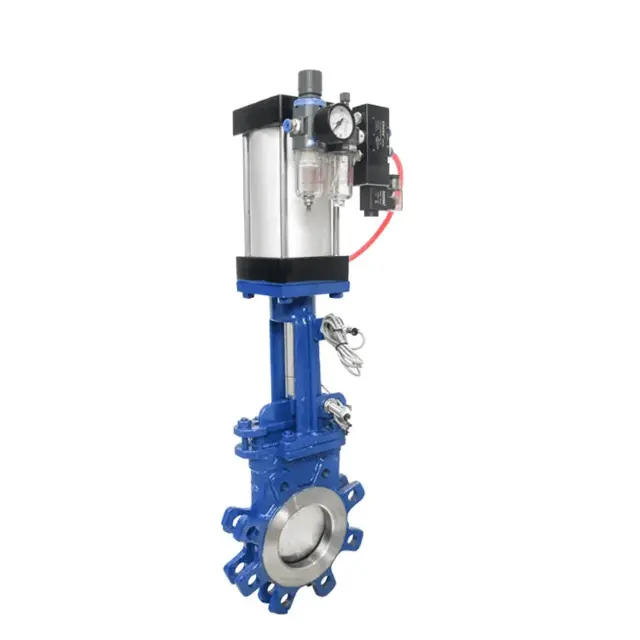

Pneumatic Knife Gate Valve, Cast Iron, 2-80 Inch, 150-300 LB
Key Specifications / Features
Hits: 7
Discover our Pneumatic Knife Gate Valve, designed for lightweight yet robust performance. Available in sizes from 2 to 80 inches (DN50-DN2000), this valve is suitable for PN10-PN25 and Class 150-300 pressure ratings. Constructed from durable cast iron, it offers excellent strength and corrosion resistance. The valve features both wafer and flange end connections for easy installation and maintenance. Ideal for handling slurries, powders, and viscous fluids, our knife gate valve ensures reliable, leak-free operation. Choose our valve for its efficiency, wide size range, and adaptability to various industrial applications, providing durable and cost-effective flow control solutions.
Request a quote
Tags
Detail Information
SPECIFICATIONS
Product Name: Pneumatic Knife Gate Control Valve
Size Range: 2 Inch - 80 Inch, DN50-DN2000
Pressure Rating: PN10-PN25, Class 150 LB - 300 LB
Material: Cast Iron
Stem Material: Stainless Steel
Sealing Material: PTFE, PPL
End Connection: Wafer, Flange
Structure: Midline Structure
Applicable Media: Water, oil, Gas, Liquid, Steam, Powder, Anti-corrosive Base.
Product Name: Pneumatic Knife Gate Control Valve
Size Range: 2 Inch - 80 Inch, DN50-DN2000
Pressure Rating: PN10-PN25, Class 150 LB - 300 LB
Material: Cast Iron
Stem Material: Stainless Steel
Sealing Material: PTFE, PPL
End Connection: Wafer, Flange
Structure: Midline Structure
Applicable Media: Water, oil, Gas, Liquid, Steam, Powder, Anti-corrosive Base.

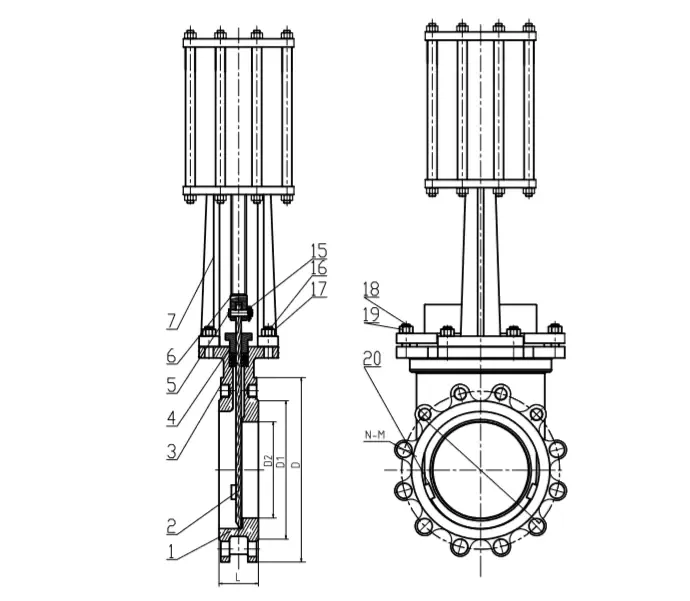

Drawing of Pneumatic Knife Gate Valve
