Introduction
Pneumatic control valve actuators are critical components in industrial automation, enabling precise control over various processes. Their role in regulating the flow, pressure, and temperature of fluids within a system cannot be overstated. However, like any mechanical system, these actuators require proper maintenance to ensure reliable performance, minimize downtime, and extend their operational lifespan. This article explores the fundamentals of pneumatic control valve actuators, their operation, and three primary maintenance strategies—run-to-failure, preventive maintenance, and predictive maintenance.
Understanding Pneumatic Control Valves

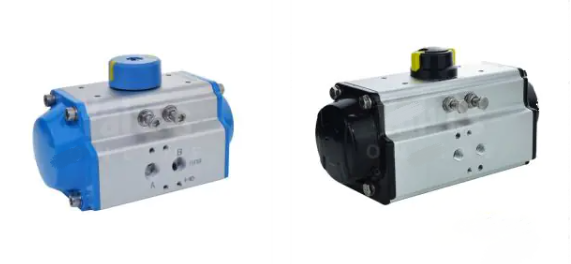

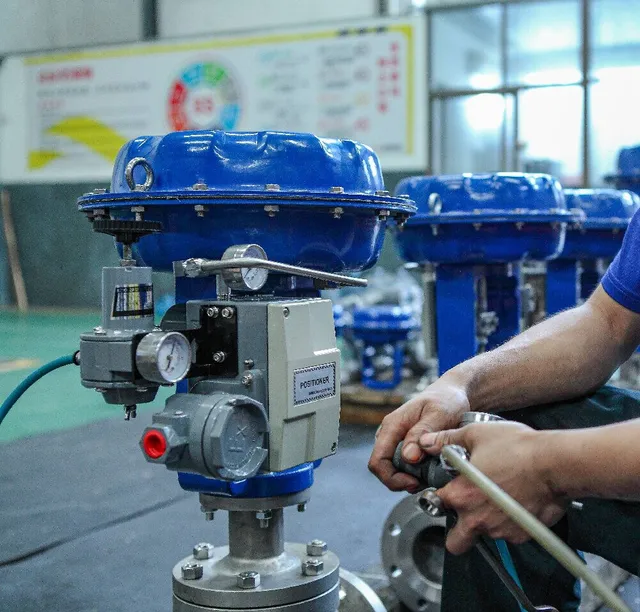

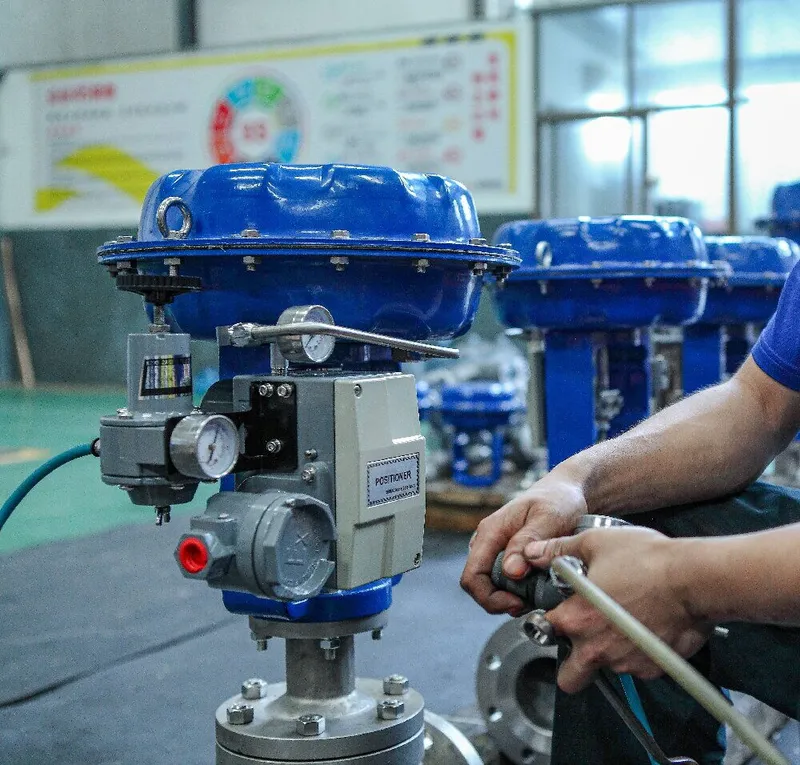

Pneumatic control valves function by using a positioner and actuator to regulate the valve's position in response to process requirements. These valves are often part of a larger control loop, receiving signals from a distributed control system (DCS) or programmable logic controller (PLC).
Most modern positioners translate either a 4–20 mA electrical signal or a 3–15 psig air signal into specific valve positions by controlling the main air supply to the actuator. This precise control ensures accurate regulation of flow and pressure within the system. However, some older models feature direct control diaphragm actuators without positioners. While simpler in design, these lack the precision and responsiveness of positioner-equipped systems.
A key requirement for pneumatic control valve operation is the use of clean, dry air. Contaminated air can introduce moisture, oil, or debris into the actuator, leading to reduced performance, increased wear, and potential failure. As such, proper air filtration and drying systems are essential to maintain actuator efficiency.
Maintenance Strategies
Maintaining pneumatic control valve actuators is essential to avoid unexpected failures, optimize process control, and manage maintenance budgets effectively. Here are the three primary maintenance approaches:
1. Run-to-Failure Maintenance
The run-to-failure approach, as the name implies, involves using the valve until it breaks or its performance becomes so unstable that it disrupts the process. While this strategy may seem cost-effective in non-critical applications, it is far from ideal in most industrial settings.
Allowing a valve to fail can result in:
Extensive damage to the valve and its components.
Contamination of the process, leading to compromised product quality.
Extended downtime, as repairing or replacing a valve under emergency conditions is often more time-consuming and costly.
For critical processes where consistent control is paramount, this approach is not advisable. The costs of unplanned downtime and process disruptions far outweigh the short-term savings on maintenance.
2. Preventive Maintenance
Preventive maintenance is a structured approach that involves servicing valves at predetermined intervals, often during scheduled plant shutdowns. This method focuses on disassembling the valve, inspecting its components, and replacing worn parts, including seals and soft goods.
Key benefits of preventive maintenance include:
Prolonged valve lifespan by addressing wear and tear before it leads to failure.
Consistent valve performance, ensuring the process remains within specifications.
However, preventive maintenance has its drawbacks:
Valves that are still in good condition may be unnecessarily disassembled, leading to wasted labor and material costs.
Spare parts and resources must be allocated for all valves, even if only a fraction of them require repairs.
Some facilities address these challenges by maintaining a complete set of spare control valves. During a shutdown, the operational valves are swapped with spares, allowing the removed valves to be serviced later. This strategy minimizes downtime and ensures plant operations resume promptly.
3. Predictive Maintenance
Predictive maintenance leverages modern technology to monitor valve performance in real-time and identify potential issues before they escalate into failures. This approach has gained significant traction with the advent of smart positioners, advanced sensors, and software solutions.
Key features of predictive maintenance systems include:
Performance Monitoring
Smart positioners and actuators can track parameters such as valve stroke speeds, torque or thrust requirements, cycle counts, and stiction.
Data Integration
By combining valve data with flow and pressure readings from the DCS, operators can evaluate whether a valve is performing within acceptable limits.
Alerts and Alarms
Networking systems can send alerts when a valve's performance begins to degrade, allowing operators to schedule maintenance before a failure occurs.
Predictive maintenance minimizes unnecessary rebuilds, reducing costs and labor associated with routine preventive maintenance. It also enhances system reliability by providing early warnings of potential issues. This approach is particularly beneficial in industries with continuous processes, such as petrochemicals, power generation, and pharmaceuticals, where unplanned downtime can be extremely costly.
The Role of Modern Positioners in Maintenance
Modern positioners and actuators have revolutionized valve maintenance by enabling detailed performance tracking and remote diagnostics. Key advancements include:
Self-Diagnostics
Positioners can detect deviations in valve performance, such as increased friction or slow response times, which often indicate wear or impending failure.
Predictive Algorithms
Algorithms analyze historical and real-time data to predict when maintenance is required, allowing for proactive planning.
Remote Access
Operators can access positioner data remotely, reducing the need for on-site inspections and enabling faster response times.
By integrating these capabilities into a plant’s maintenance strategy, operators can optimize valve performance, reduce downtime, and achieve significant cost savings.
Best Practices for Maintaining Pneumatic Control Valves
To ensure the longevity and reliability of pneumatic control valves, consider the following best practices:
1. Regular Inspection
Periodically inspect actuators, positioners, and associated components for signs of wear, leaks, or contamination.
Verify that the air supply is clean and dry by maintaining air filtration and drying systems.
2. Proper Lubrication
Ensure that moving parts are adequately lubricated to minimize friction and wear.
Use lubricants recommended by the valve manufacturer to avoid compatibility issues.
3. Monitor Air Supply Quality
Install high-quality filters and dryers to remove moisture, oil, and particulates from the air supply.
Regularly check and replace filters to maintain optimal air quality.
4. Utilize Smart Technology
Invest in smart positioners and actuators to enable real-time monitoring and diagnostics.
Integrate valve data with the plant’s DCS for comprehensive performance analysis.
5. Train Maintenance Personnel
Ensure that technicians are trained to handle modern valve technologies, including smart positioners and predictive maintenance tools.
Encourage knowledge-sharing and continuous learning to stay updated with industry advancements.
Conclusion
Effective maintenance of pneumatic control valve actuators is critical for ensuring reliable process control, minimizing downtime, and optimizing operational costs. While the run-to-failure approach may suffice in non-critical applications, most industries benefit from structured preventive maintenance or advanced predictive maintenance strategies.
By leveraging modern technologies such as smart positioners and predictive analytics, operators can monitor valve performance in real-time, schedule maintenance proactively, and avoid unnecessary disruptions. Additionally, adhering to best practices—such as maintaining air supply quality, conducting regular inspections, and training personnel—can further enhance the reliability and efficiency of pneumatic control valves.
In today’s competitive industrial landscape, adopting a proactive and technology-driven approach to valve maintenance is not just a best practice—it is a necessity.
