Introduction
Multi-turn motorized valves are pivotal components in modern automated flow control systems. These devices are designed to manage the flow of various media with an exceptional level of precision, providing full control over a wide range of fluid flow conditions. The fundamental difference between multi-turn valves and their quarter-turn counterparts lies in the amount of rotation required to transition from fully open to fully closed positions. Multi-turn valves require several full rotations of the valve stem, which allows for a more gradual and precise adjustment of the flow rate.
This ability to finely control the flow of fluids is especially crucial in industries where small changes in flow rate can have significant impacts on the overall performance and safety of operations. Common applications for multi-turn motorized globe valves include water treatment, chemical processing, pharmaceutical production, and many other industries that rely on precise fluid regulation. These valves, equipped with electric or pneumatic actuators, enable operators to make incremental adjustments that would be impossible with quarter-turn valves.

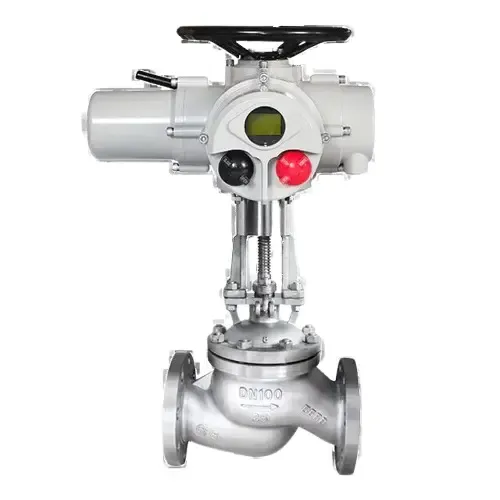

How Multi-Turn Motorized Globe Valves Work
The operation of multi-turn motorized globe control valves is relatively straightforward but highly effective in ensuring precision. These valves typically consist of a valve body, an actuator, a valve stem, and a plug or disc. The actuator drives the valve stem, which is connected to the plug. As the actuator turns the stem multiple times, the plug moves in and out of contact with the valve seat, regulating the flow of the media passing through.
The design of the valve body, typically a globe shape, directs the fluid in a controlled manner. As the stem rotates, the plug gradually opens or closes the valve, allowing for more incremental changes to the flow rate. The multi-turn action makes it possible to achieve minute control over the flow, which is particularly beneficial in processes where a consistent and accurate flow rate is required. Unlike valves with simpler operation, the multi-turn design offers finer control by permitting gradual movements, thereby avoiding sudden or drastic changes in pressure or flow.
Another key feature of multi-turn motorized globe valves is the ability to use actuators for different energy sources. Electric actuators are commonly used, providing the ability to control the valve remotely and with greater precision. Pneumatic actuators are another popular option, often used in environments where electrical systems are not ideal, such as hazardous or explosive environments.
Difference Between Quarter-Turn and Multi-Turn Actuators
Understanding the difference between quarter-turn and multi-turn actuators is fundamental in determining the right valve for a given application. While both actuators perform the same basic function of turning a valve, the extent and type of movement they provide differ greatly, and this affects the applications they are suited for.
Quarter-Turn Actuators
As the name suggests, quarter-turn actuators rotate the valve stem through 90 degrees, completing one-quarter of a full circle. This motion is fast, reliable, and ideal for applications that require quick and decisive action, such as opening or closing a valve fully in a short amount of time. Quarter-turn actuators are frequently used in ball valves, butterfly valves, and other types of valves where a rapid on-off or proportional control is needed.
The compact design of quarter-turn actuators makes them cost-effective and relatively easy to install and maintain. Their speed and simplicity make them the ideal choice for applications that do not require gradual changes in flow. However, the limitation lies in their range of motion, which is confined to just 90 degrees. This makes them unsuitable for systems requiring fine control or incremental adjustments to the flow rate.
Multi-Turn Actuators
In contrast, multi-turn actuators provide rotational movement through several complete turns of the valve stem, offering a much more precise and gradual operation. These actuators are used in globe valves, gate valves, and other valve types that require more control over the flow rate. Because multi-turn actuators can rotate a valve through multiple revolutions, they are ideal for applications that need fine adjustments, such as those involving temperature control, pressure regulation, and flow metering.
Multi-turn actuators are typically slower and more complex than quarter-turn actuators, but they offer the significant advantage of controlling the valve's position more precisely over a larger range. For example, a multi-turn valve may be able to control flow increments as small as a few percentage points, whereas a quarter-turn valve can only toggle between open and closed positions.
The trade-off between speed and precision is key when choosing between quarter-turn and multi-turn actuators. For tasks that require detailed flow control and gradual changes, multi-turn actuators are the better choice, while quarter-turn actuators are more suitable for faster, more binary operations.
Key Considerations for Selecting Multi-Turn Motorized Globe Valves
Selecting the right multi-turn motorized globe valve involves careful consideration of several factors that ensure the valve performs optimally in a given application. While multi-turn valves are highly versatile, it is essential to choose one that matches the specific requirements of the system to avoid inefficiencies, unnecessary costs, or operational issues.
1. Application Needs
The first step in selecting a multi-turn globe valve is understanding the specific needs of the application. Multi-turn valves excel in applications that demand precise flow control. Industries such as chemical processing, pharmaceutical manufacturing, and power generation rely on the precise regulation of media, making multi-turn globe valves an ideal solution. It is important to assess factors such as the required flow range, pressure, temperature, and chemical compatibility of the media being controlled.
2. Valve Size and Capacity
Choosing the appropriate size of the valve is critical to achieving efficient operation. A valve that is too large for the system may result in unnecessary costs and overcapacity, while a valve that is too small might struggle to control flow effectively. Valve size is typically determined by the diameter of the pipe and the flow rate of the system. Sizing the valve correctly ensures that it can perform its intended function while avoiding wasteful energy consumption or potential damage to the valve or system.
3. Actuator Type and Power Supply
The choice of actuator can significantly impact the performance of the valve. Multi-turn motorized globe valves are typically powered by electric actuators, which provide precise control over valve positioning. However, pneumatic actuators, which use compressed air to move the valve stem, are also commonly used. Pneumatic actuators can offer faster response times and are particularly useful in hazardous or remote locations where electricity is not easily accessible.
In addition to the actuator type, the power supply must also be considered. Electric actuators often require a reliable power source, and if the system is located in an area prone to power outages or fluctuations, a backup power solution may be necessary to ensure continuous operation.
4. Material Compatibility
The material of the valve is essential in determining its durability and suitability for specific environments. For example, valves in corrosive or high-temperature applications must be made from materials that can withstand such conditions. Common materials for multi-turn motorized globe valves include stainless steel, carbon steel, and alloys such as Hastelloy or Inconel. The valve material must be selected based on factors such as the chemical composition of the media, the operating temperature, and the pressure conditions within the system.
5. Control and Automation Features
Many multi-turn motorized globe valves come with advanced control features such as positioners, remote monitoring systems, and diagnostic tools. These features are essential for ensuring precise operation, especially in automated systems. Positioners, for example, provide feedback on the exact position of the valve stem, ensuring that the valve opens and closes according to the desired settings. Remote monitoring allows operators to check the valve’s status from a central control room, while diagnostics can alert maintenance teams to potential issues before they cause failure.
6. Cost and Budget Considerations
Cost is always a critical factor when selecting any industrial equipment. While multi-turn motorized globe valves can be more expensive than quarter-turn alternatives, their precision and reliability often justify the additional cost, particularly in applications where fine control is required. When evaluating the cost of a valve, it is important to consider not only the upfront price but also the potential savings generated by the valve's efficient operation, reduced downtime, and extended lifespan.
7. Maintenance and Serviceability
Maintenance requirements are another consideration when selecting multi-turn motorized globe valves. These valves are typically more complex than simpler valve types, and their maintenance needs should be factored into the total cost of ownership. Regular inspection and maintenance can help prolong the life of the valve and ensure that it continues to operate at peak performance.
Conclusion
Multi-turn motorized globe valves are critical components in automated flow control systems, offering unmatched precision and reliability. These valves allow for fine adjustments of the flow rate, making them ideal for applications that require exact fluid regulation, such as chemical processing, water treatment, and pharmaceutical production.
By understanding the differences between quarter-turn and multi-turn actuators, and by carefully evaluating factors such as actuator type, valve size, material compatibility, and application requirements, operators can ensure that their multi-turn motorized globe valves perform optimally and meet the specific needs of their systems. Although multi-turn valves tend to have a higher initial cost compared to simpler valve types, their ability to provide precise control can result in significant long-term savings and operational benefits.
As industries continue to demand more advanced and reliable flow control solutions, multi-turn motorized globe valves will remain a vital part of the automation landscape, offering the accuracy and flexibility required for today’s complex and fast-paced industrial environments.
