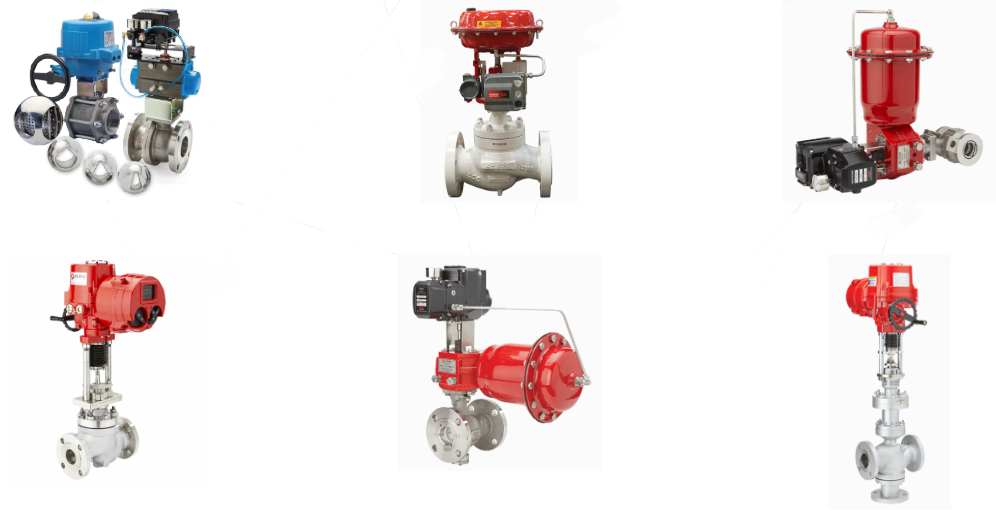

Control valves are essential components in industrial systems, ensuring precise control over fluid flow, pressure, and temperature. Proper handling, installation, and maintenance of control valves are critical to optimizing performance, preventing failures, and extending their lifespan. This article provides an in-depth guide to the precautions for using control valves and highlights key aspects of preventive maintenance to minimize operational risks and maximize efficiency.
Precautions During Control Valve Installation and Use
The installation process for control valves plays a significant role in determining their overall performance and durability. Following best practices during installation is essential to avoid operational inefficiencies, damage, and safety hazards.
1. Pre-Installation Cleaning
Before installing a control valve, the pipeline must be thoroughly cleaned to remove any contaminants, such as dirt, rust, grease, or slag. Residual debris can lead to spool or seat damage, resulting in improper sealing or operational inefficiencies. After the valve is installed, open it to its maximum position and flush the pipeline to ensure complete removal of residual particles. Additionally, test the sealing of valve joints to prevent slippage or leaks during operation.
2. Strategic Placement for Maintenance Accessibility
Control valves should be installed close to the ground or floor to facilitate easy access for maintenance and repairs. For valves equipped with positioners or handwheel mechanisms, ensure their placement allows for convenient observation, adjustments, and manual operation. This is particularly important in systems requiring frequent monitoring or manual intervention.
3. Alignment with Flow Direction
During installation, verify that the flow direction of the medium aligns with the arrow marked on the valve body. Installing the valve with incorrect flow alignment can cause disruptions in functionality, wear, or even failure of the internal components.
4. Minimizing Additional Stress
Control valves are subject to various external forces, such as thermal expansion, weight, and vibration, which can cause flange deformation, internal damage, or leaks. To mitigate these risks:
Use support frames to stabilize valves, especially in long pipelines or areas prone to vibration.
Avoid installing large-diameter control valves at an angle, as this can lead to mechanical wear and packing leakage.
Implement vibration isolation measures in environments with heavy machinery or high turbulence.
5. Incorporating Bypass Pipelines for Safety
For critical applications, consider installing a bypass pipeline around the control valve. This allows the system to remain operational during valve maintenance or in the event of a valve failure. In industries where production downtime is costly or unsafe, a bypass pipeline is a critical safety measure.
6. Manual Operation and Handwheel Mechanisms
Control valves with handwheel mechanisms provide a dual functionality: they enable manual operation and act as a limiting mechanism for valve opening. During automatic control, always ensure the handwheel mechanism is in the neutral position to avoid interference with the automated system.
7. Maintenance for High-Temperature Valves
Valves exposed to high temperatures require additional attention to prevent packing material degradation. Grease the packing section every three months to maintain its elasticity and sealing properties. Neglecting this maintenance step can lead to packing failure and subsequent leaks.
Preventive Maintenance: Essential for Control Valve Longevity
Preventive maintenance is the cornerstone of ensuring the long-term reliability and performance of control valves. Regular inspections and tests allow early detection of potential issues, preventing costly failures and unplanned downtime. Below are key preventive maintenance procedures:
1. Closure Test/Valve Leakage Test
The closure test, also known as the valve leakage test, is performed to verify the valve's sealing integrity. During this test:
The valve is closed under full-flow conditions.
Inspect for any fluid leakage at the valve gateways.
Ideally, there should be no leakage. Any signs of leakage indicate wear, tear, or dimensional changes in the valve components. Immediate repairs or replacement of the affected parts is necessary to restore functionality.
2. Stroke Test
The stroke test assesses the operability of the valve under varying environmental and operational conditions. This test involves:
Activating the valve at full-flow conditions.
Observing the valve's response to solenoid strokes.
Visual inspections during this test ensure the valve operates smoothly and responds accurately to control signals. Regular stroke testing is particularly important in systems subject to harsh environmental conditions or frequent operational cycles.
3. Auxiliary Piping System Inspection
Control valves are often connected to auxiliary piping systems, which directly influence their performance. Regular inspection of the piping system is essential to prevent valve failures caused by auxiliary system issues. Key inspection points include:
Pipe Walls: Check for scaling, rust, cracks, or other signs of deterioration.
Pipe Bends: Inspect for pressure-related damage or deformation.
Structural Integrity: Look for bending, bowing, or suction traces in pipelines.
Fittings and Connections: Ensure all fittings are secure and free from leaks.
A compromised auxiliary piping system can reduce the efficiency of the control valve and lead to costly repairs or operational downtime.
Common Issues and Solutions for Control Valves
Even with proper installation and preventive maintenance, control valves may encounter operational issues over time. Below are some common problems and their potential solutions:
1. Valve Sticking
Cause: Buildup of debris, corrosion, or improper lubrication.
Solution: Clean the valve internals, apply appropriate lubrication, and inspect for worn-out components.
2. Excessive Vibration
Cause: High flow velocity, improper installation, or insufficient support.
Solution: Install support frames or vibration isolation measures and verify proper valve placement.
3. Packing Leakage
Cause: Degraded packing material or improper maintenance.
Solution: Replace the packing material and ensure regular lubrication, especially for high-temperature applications.
4. Inaccurate Valve Positioning
Cause: Malfunctioning positioner or calibration issues.
Solution: Inspect and calibrate the positioner to restore accuracy.
Benefits of Preventive Maintenance
Investing in a structured preventive maintenance program for control valves yields numerous benefits:
Enhanced Safety
Reduces the risk of leaks, malfunctions, and potential safety hazards.
Cost Savings
Prevents costly emergency repairs or unplanned downtime.
Increased Efficiency
Maintains precise flow, pressure, and temperature control, optimizing system performance.
Extended Lifespan
Reduces wear and tear, ensuring the valve operates effectively over its full lifecycle.
Regulatory Compliance
Meets industry standards and safety regulations, fostering trust and reliability in industrial operations.
Conclusion
Control valves are integral to industrial systems, and their proper installation, operation, and maintenance are crucial for ensuring optimal performance and safety. By adhering to the outlined precautions during installation and implementing a robust preventive maintenance program, you can significantly enhance the efficiency, reliability, and longevity of your control valves.
A proactive approach to valve care not only minimizes the risk of operational disruptions but also contributes to the overall success of your industrial processes. Regular inspections, timely repairs, and adherence to best practices ensure that your control valves remain in peak condition, delivering consistent performance in even the most demanding environments.
