In industrial systems and modern infrastructure, managing fluid flow with precision and efficiency is a critical requirement. A motorized control valve is an advanced solution that automates this process, offering unmatched accuracy and reliability. These valves use an electric motor to open, close, or adjust their mechanisms, making them ideal for large-scale or remote applications such as agricultural irrigation, aircraft deicing, automated fire suppression systems, and industrial process control.
By automating valve actuation, motorized control valves eliminate the need for manual intervention, reducing operational complexities and increasing system efficiency. With their ability to integrate seamlessly into automated systems, these valves have become a cornerstone in industries where fluid flow management is essential.
Understanding Motorized Control Valves
Motorized control valves are not a single design but a category that encompasses various valve types, including gate, globe, ball, and butterfly valves. What distinguishes them from manual or pneumatically operated valves is their use of an electric motor to actuate the valve mechanism. This motor-driven actuation allows for precise and repeatable control of fluid flow, making them suitable for applications requiring high levels of accuracy and consistency.
The internal mechanisms of motorized valves are often identical to their manual counterparts, with the key difference being the addition of an electric actuator. This actuator receives input signals from a control system, which then drives the valve’s movement. Depending on the type of valve, this movement may involve rotating, lifting, or sliding components to regulate the flow of fluids or gases.
Types of Motorized Control Valves
1. Rotary or Quarter-Turn Valves
Rotary or quarter-turn valves are among the fastest-acting motorized control valves. These include ball and butterfly valves, which operate through a rotary motion to open or close the flow path.

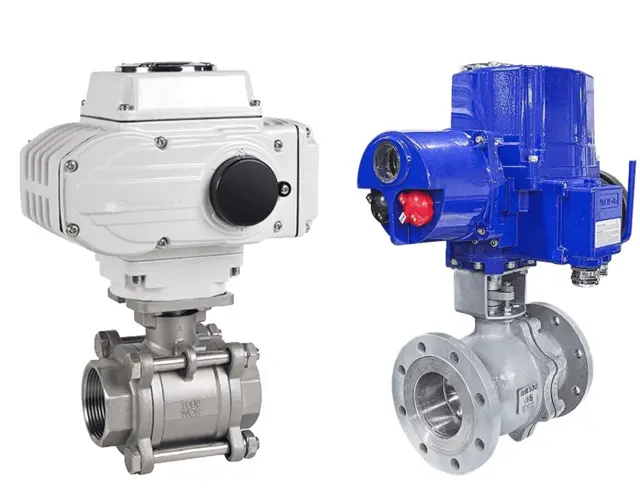

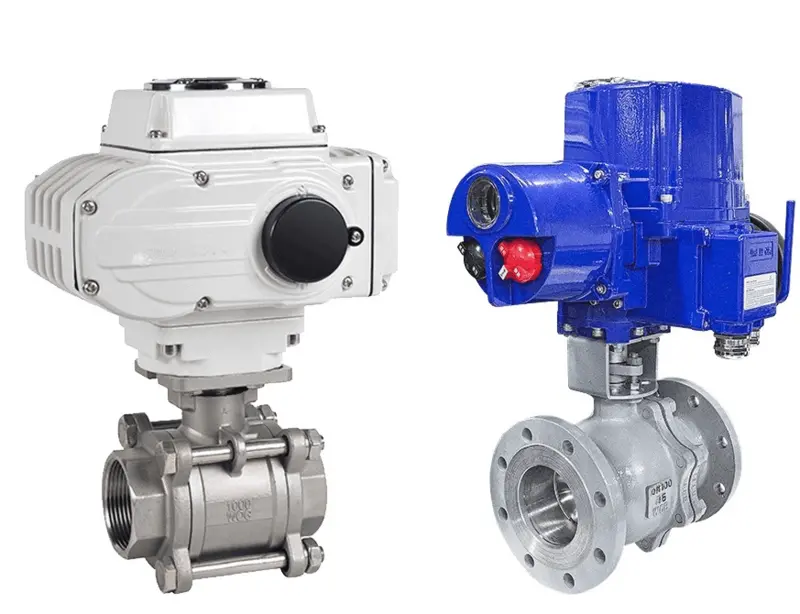

Ball Valves: Known for their excellent sealing properties, ball valves are commonly used in high-pressure applications, such as fuel lines and chemical processing. Their quick actuation times make them ideal for applications requiring rapid shutoff.
Butterfly Valves: Lightweight and compact, butterfly valves are often used in systems where space is limited. They provide reliable sealing and are commonly found in HVAC systems, water treatment plants, and fire suppression systems.
2. Linear or Vertical Travel Valves
Linear valves, such as gate and globe valves, rely on a vertical travel mechanism to regulate flow. These valves are typically used in larger systems or applications requiring precise flow control.
Gate Valves: These valves use a lead screw mechanism to lift or lower a gate, allowing or blocking flow. They are often employed in water distribution networks and large industrial systems.

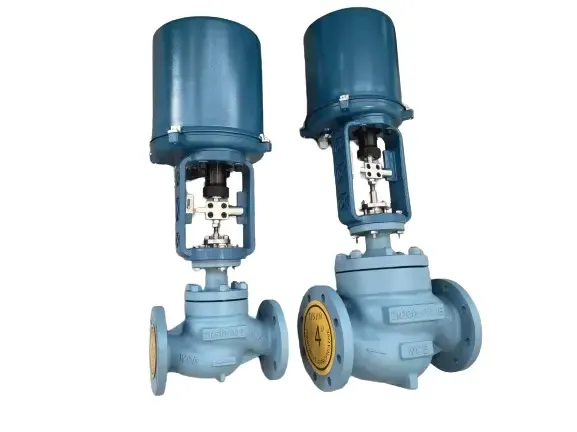

Globe Valves: Featuring a tapered plug that moves vertically to adjust flow, globe valves are ideal for metering applications requiring high precision, such as pharmaceutical manufacturing or chemical processing.
How Motorized Control Valves Work
At the heart of a motorized control valve is its electric actuator, which receives commands from a control system. When a signal is received, the electric motor within the actuator initiates valve movement. The motor’s rotational or linear motion is transmitted to the valve stem, which adjusts the position of the valve core (or seat). This adjustment directly controls the flow of fluid through the valve.
The process involves several key components:
Electric Motor: Provides the driving force for valve actuation.
Gear Train: Transmits motor motion to the valve stem.
Limit Switches: Ensure precise control by stopping valve movement at predefined positions.
Control System: Sends input signals to the actuator based on system requirements, enabling automated and remote operation.
By automating this process, motorized valves achieve levels of precision and efficiency that are difficult to match with manual operation.
Advantages of Motorized Control Valves
1. High Precision and Accuracy
Motorized control valves can be finely tuned to specific positions, allowing for precise regulation of fluid flow. This level of control is critical in industries where maintaining exact flow rates is essential, such as in chemical processing or semiconductor manufacturing.
2. Remote and Automated Operation
Unlike manual valves, motorized valves can be controlled remotely, reducing the need for on-site personnel. Integration with control systems allows these valves to respond automatically to changes in system conditions, improving overall efficiency.
3. Enhanced Safety
In hazardous environments, such as those involving high-pressure systems or toxic substances, motorized valves minimize the need for human intervention. This reduces the risk of exposure and enhances operational safety.
4. Energy Efficiency
Motorized valves consume energy only during actuation, making them more energy-efficient over time. Advanced designs with low-power motors further enhance sustainability and reduce operational costs.
5. Durability and Reliability
Constructed from robust materials, motorized valves are designed to withstand demanding conditions. Their reliability in repetitive and long-term use reduces maintenance requirements and minimizes system downtime.
Applications of Motorized Control Valves
Motorized control valves are used across a wide range of industries due to their versatility and efficiency:
1. Industrial Process Control
In industries like oil and gas, petrochemicals, and power generation, motorized valves ensure precise control of fluids and gases, optimizing system performance and safety.
2. Water and Wastewater Management
Motorized valves play a critical role in municipal water supply systems and wastewater treatment plants. They allow for accurate control of water flow, enhancing resource management and operational efficiency.
3. HVAC Systems
Heating, ventilation, and air conditioning systems rely on motorized valves to regulate the flow of fluids, ensuring efficient temperature control and energy conservation.
4. Fire Suppression Systems
In automated fire suppression systems, motorized valves enable rapid response and precise control, ensuring the safety of facilities and personnel.
5. Aerospace and Transportation
Applications such as aircraft deicing and fuel management systems depend on the reliability and precision of motorized control valves.
6. Agricultural Irrigation
In modern irrigation systems, motorized valves help optimize water distribution, improving crop yield and conserving water resources.
Challenges and Considerations
Despite their advantages, motorized control valves come with certain challenges:
Initial Cost
The upfront cost of motorized valves is higher than that of manual valves, primarily due to the complexity of their components.
Maintenance Needs
While durable, these valves require periodic maintenance of their electric actuators and mechanical components.
Power Dependency
Motorized valves rely on a consistent power source, which can be a limitation in areas with unreliable electricity. Backup systems may be necessary to mitigate this issue.
Environmental Constraints: Standard motorized valves may require special materials or coatings to operate in corrosive environments or with high-viscosity fluids.
The Future of Motorized Control Valves
As technology advances, motorized control valves are expected to become even more efficient and adaptable. Innovations in materials, actuator designs, and control algorithms are likely to enhance their performance and expand their applications. The integration of smart technologies, such as IoT-enabled monitoring and control, will further increase their utility in automated systems.
Industries worldwide are prioritizing sustainability and energy efficiency, and motorized control valves are well-positioned to contribute to these goals. Their ability to reduce energy consumption, improve precision, and enhance safety makes them a vital component in modern fluid management systems.
Conclusion
Motorized control valves have revolutionized fluid flow management by combining precision, efficiency, and automation. Their versatility and reliability make them an essential tool across industries, from industrial processing to aerospace. As technology continues to evolve, these valves will remain at the forefront of innovation, helping industries achieve greater operational efficiency and sustainability.
For organizations looking to optimize their systems, investing in motorized control valves is a strategic step toward enhancing performance, safety, and cost-effectiveness.
