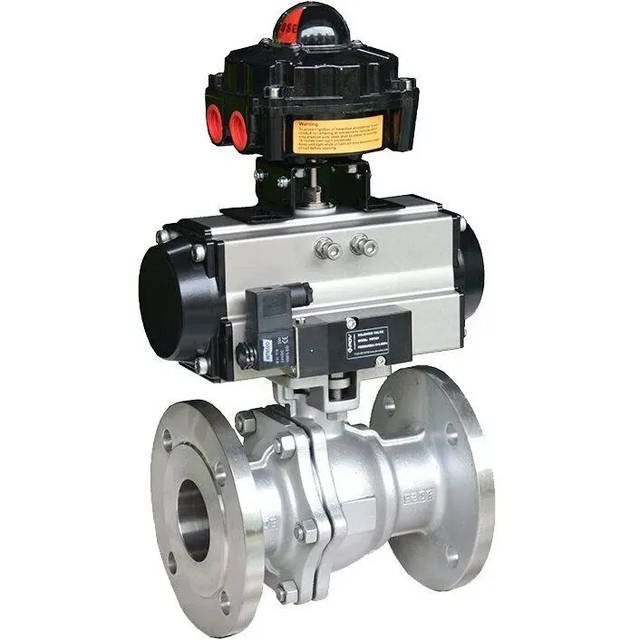

Pneumatic control valves are critical components in fluid and gas regulation systems, widely used across industries such as chemical, petrochemical, oil and gas, power, and HVAC. These valves are employed to control the flow of fluids based on external signals, typically regulated by an actuator that responds to pneumatic control signals. While the fundamental purpose of a pneumatic control valve mirrors that of its electric counterpart, the key distinction lies in the actuator: pneumatic valves use compressed air, while electric valves operate on electrical energy. This article will delve into the working principle of pneumatic control valves, selection considerations, and methods for addressing common operational issues like noise and cavitation erosion.
Working Principle of Pneumatic Control Valves
Pneumatic control valves typically consist of three major components: the actuator, the conditioning mechanism, and the valve body. The actuator plays the role of the thrust element, receiving signals from a control system (often through air pressure) and converting that pressure into mechanical force. This force is used to move the conditioning mechanism (such as a valve plug or disc), which regulates the flow of the fluid through the valve body. The valve body, which directly contacts the flow medium, adjusts the flow rate according to the movement of the actuator.
The actuator and valve body work together to provide precise control over the flow of fluids such as water, oil, gas, and steam. The mechanism by which this occurs depends on the valve type, with different designs catering to specific flow characteristics and applications. Common types of pneumatic control valves include:
Pneumatic Single-Seat Control Valve
Ideal for low to moderate pressure conditions with relatively smaller flow requirements.
Pneumatic Sleeve Control Valve
Suited for applications with larger pressure differentials, offering more precise control and lower leakage than single-seat valves.
Pneumatic Three-Way Control Valve
Used to direct flow to multiple outlets, commonly in blending, diverting, or mixing processes.
Pneumatic Angle Control Valve
Offers better control of high-pressure and high-flow applications by utilizing an angled design for optimal flow characteristics.
Considerations for Selecting Pneumatic Control Valves
The selection of pneumatic control valves should be based on a careful assessment of both technical and operational requirements. Here are some key factors to consider when selecting a pneumatic control valve for your system:
1. Source of Energy
A major distinction between pneumatic and electric control valves is their energy source. Pneumatic valves require compressed air to operate, which means they must be paired with an air supply system, such as a compressor. This need for a pneumatic infrastructure can be more complex than the simpler electrical power supply for electric control valves. However, the use of pneumatic valves provides several advantages, such as:
Explosion-Proof Properties: Pneumatic valves are often used in environments with explosive or hazardous materials, as compressed air systems are inherently less prone to spark production.
Simplicity of Maintenance: Pneumatic valves tend to have fewer components susceptible to wear, contributing to a lower failure rate.
Cost-Effective: In many cases, pneumatic control valves offer a more economical solution, especially in large-scale applications where compressed air is readily available.
2. Valve Body Materials
The material selection for the valve body depends on the characteristics of the fluid or gas being controlled. Common materials include:
Carbon Steel: Economical and suitable for non-corrosive fluids.
Stainless Steel (304, 316, 316L): Ideal for corrosive fluids or environments requiring higher strength and resistance to heat.
Fluoropolymer-Lined Valves: Used for highly corrosive applications, such as in the chemical or pharmaceutical industries.
For extreme conditions, special materials and designs may be required, including:
Low-Temperature Control Valves: These valves are designed for use in cryogenic conditions where the fluid temperature drops below freezing.
High-Temperature Control Valves: Suitable for high-temperature applications in industries such as power generation or oil refining.
High-Pressure Control Valves: These valves are designed to withstand high pressure differentials in the pipeline.
Small Flow Control Valves: For controlling minute flow rates, often used in laboratory or specialized industrial applications.
3. Valve Design Considerations
The flow conditions, including pressure differential and leakage tolerance, significantly influence the choice of valve design. For example:
Single-Seat Control Valves: Best for situations with a small pressure differential where the risk of leakage is minimal.
Sleeve or Double-Seat Control Valves: These designs are better suited for large pressure differentials but may suffer from higher leakage rates. If leakage is a concern, a sleeve control valve is typically preferred over a double-seat valve.
4. Control Precision
In modern systems, control accuracy is often paramount. Pneumatic control valves can be equipped with positioners to fine-tune the valve movement and improve the precision of flow regulation. There are two primary types of valve positioners:
Mechanical Pneumatic Positioners: Less expensive and suitable for simpler applications where precise control is not critical.
Intelligent Pneumatic Positioners: These systems offer higher precision and can automatically adjust for external factors such as pressure fluctuations, improving performance in complex applications.
Addressing Noise and Cavitation Erosion in Pneumatic Control Valves
Noise and cavitation are common issues encountered in pneumatic control valve applications, particularly in high-pressure or high-velocity systems. These phenomena can lead to reduced efficiency, increased wear, and potential failure of the valve. Below are methods for mitigating these problems:
1. Mechanical Vibration
Mechanical vibration occurs when components like the valve core or valve plug experience oscillations during operation. This vibration can be minimized by:
Reducing the Gap: Ensuring the gap between the valve core and sleeve is minimal.
Using Hard Surface Sleeves: Opting for hard, wear-resistant materials can help reduce vibration and wear.
2. Fluid Mechanics and Noise
When fluid flows through a pneumatic control valve or associated pipelines, turbulence can lead to mechanical noise. Factors like high flow velocity, sharp bends in the pipe, or changes in flow direction contribute to this issue. The noise can be managed by:
Flow Dampening: Installing flow straighteners or silencers can help minimize noise generated by fluid turbulence.
Optimizing Valve Sizing: Ensuring the valve is properly sized for the flow conditions can reduce the likelihood of high-speed flow that contributes to noise.
3. Cavitation and Erosion
Cavitation occurs when a fluid’s pressure drops below its vapor pressure, forming vapor bubbles that collapse and create high-energy shockwaves. This can cause erosion of the valve body and other components. To mitigate cavitation:
Increased Pressure: Maintaining higher inlet pressures can prevent cavitation by ensuring the fluid pressure does not drop below vapor pressure.
Cavitation-Resistant Materials: Using materials that are resistant to the erosive effects of cavitation can extend the life of the valve.
Valve Trim Design: Special trims designed to handle cavitation, such as multi-stage trims or anti-cavitation valve seats, can help control the energy release during cavitation events.
4. Natural Frequency Vibration
Every component, including the valve spool and actuator, has a natural frequency at which it will vibrate. If the system is operated at this frequency, excessive vibration can occur, leading to noise and potential damage. Solutions include:
Material Changes: Adjusting the spool’s material through casting or forging can alter its natural frequency.
Redesigning Components: If necessary, replace the spool with one of a different type or material to change its vibrational characteristics.
5. Instability of the Spool
If the spool experiences oscillatory displacement due to fluctuating fluid pressures, it can generate unwanted noise. To address this:
Adjusting the Damping Coefficient: Re-calibrating the damping mechanism of the regulator loop actuator can reduce spool oscillation.
Adding Damping Features: Installing additional damping systems, such as hydraulic or pneumatic dampers, can stabilize the spool movement and minimize noise.
Conclusion
Pneumatic control valves play a vital role in many industrial systems, offering reliable flow control in a wide range of applications. However, selecting the right pneumatic valve requires careful consideration of factors such as energy source, valve body material, and design for specific operating conditions. Additionally, managing challenges like noise, cavitation, and mechanical vibration is crucial for maintaining optimal valve performance and longevity. By understanding these elements and taking the appropriate steps to address potential issues, industries can ensure that their pneumatic control valves perform efficiently and reliably over time.
